Section 7 — Exploded Views and Parts Lists
(Model No. 004373-2) Guardian Liquid-cooled 40 kW Generators

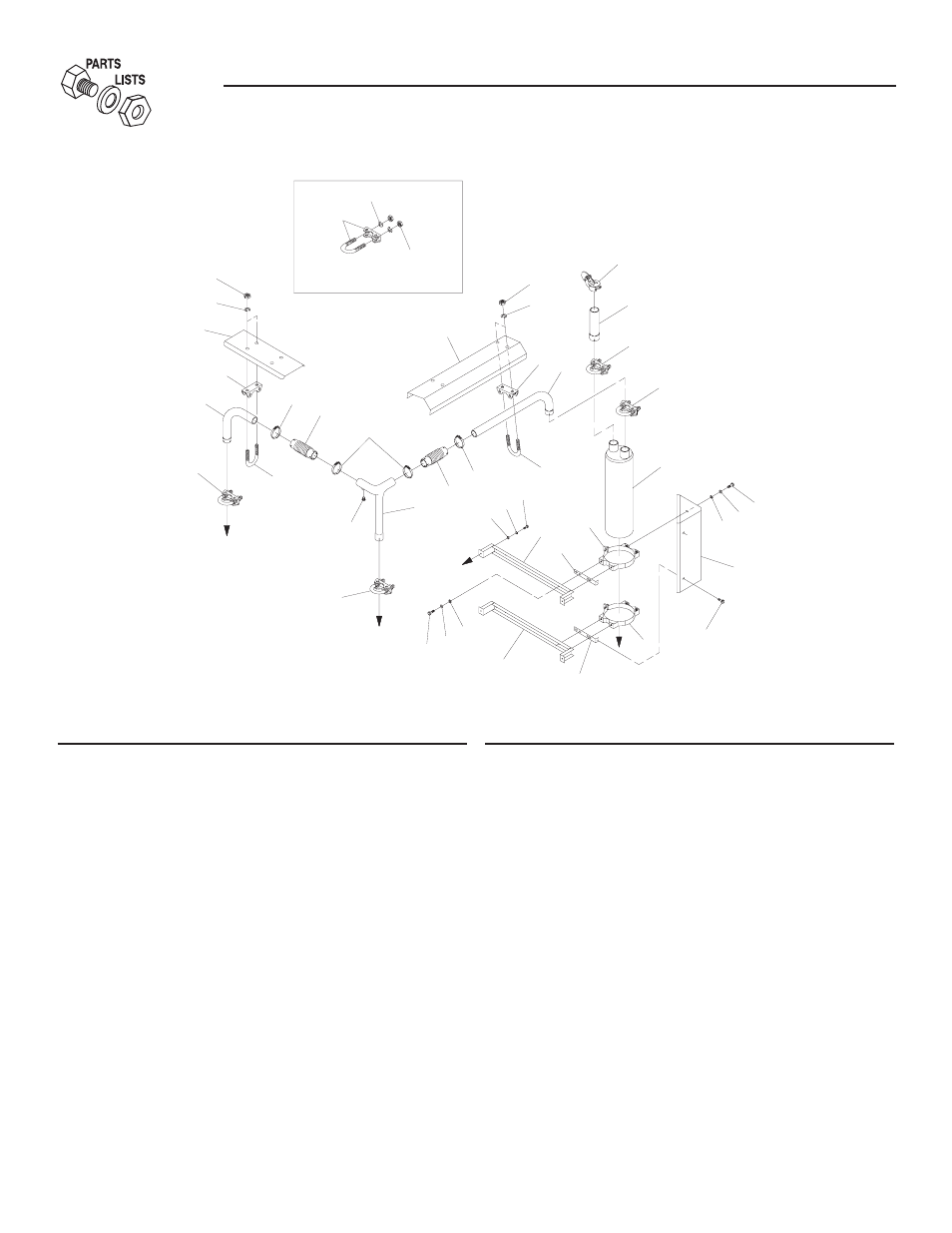

Generator – Drawing No. 0D5786
ITEM PART NO. QTY. DESCRIPTION
1 059902A 1 CAP RAIN 2.50 / 2.69
2 0C9641 1 TUBE STRAIGHT 'A' GROUP
3 0C9650 1 MUFFLER 2-1/2" INLET/OUTLET
4 0C4114A 2 CLAMP BAND MUFFLER 6.5"
5 0C4126 2 BRACKET MUFFLER MOUNTING
6 0D5787 1 TUBE ELBOW 90 DEG 2.5"
7 0A5215B 2 PIPE FLEX 2.5"
8 0D5792 1 TUBE 2.5" SMALL TEE
9 0D5793 1 TUBE ELBOW 90 DEG 2.5" FLARED
10 0C4170 2 BRACKET EXHAUST SHIELD
11 0C4305 1 SHIELD A-GRP HEAT
ITEM PART NO. QTY. DESCRIPTION
12 0C2454 2 SCREW TH-FRM M6-1 X 16 N WA Z/JS
13 0C3433A 4 CLAMP BAND 2.5"
14 022129 12 WASHER LOCK M8-5/16
15 022145 12 WASHER FLAT 5/16 ZINC
16 0C9748 1 PLUG M18-1.5
18 042907 12 SCREW HHC M8-1.25 X 16 G8.8
19 080762 8 BOLT U 3/8-16 X 2.62
20 022237 16 WASHER LOCK 3/8
21 022241 16 NUT HEX 3/8-16 STEEL
22 0D5187 1 SHIELD HEAT CROSSOVER 4.3L
23 0D5190 1 SHIELD HEAT EXHAUST 4.3L
12
2.5" Dia. Clamp Assembly
To Engine
To Engine
19
9
19
13
16
19
7
13
20
19
21
5
15
18
14
5
19
8
Compartment
To
Front
7
13
14
15
18
23
6
10
4
4
10
19
19
3
1
2
14
11
15
18
20
21
22
19
19
20
21
