Hardware Installation - 25 -
English
2 10
1 9
F2_1394
F1_1394
Pin No. Definition
1 TPA2+
2 TPA2-
3 GND
4 GND
5 TPB2+
6 TPB2-
7 No Pin
8 Power
9 Power
10 GND
Pin No. Definition
1 Power
2 Power
3 TPA0+
4 TPA0-
5 GND
6 GND
7 TPB0+
8 TPB0-
9 Power
10 Power
11 TPA1+
12 TPA1-
13 GND
14 No Pin
15 TPB1+
16 TPB1-
14) IR
Be careful with the polarity of the IR connector while you connect the IR. Please contact your
nearest dealer for optional IR device.
1
2 16
1 15

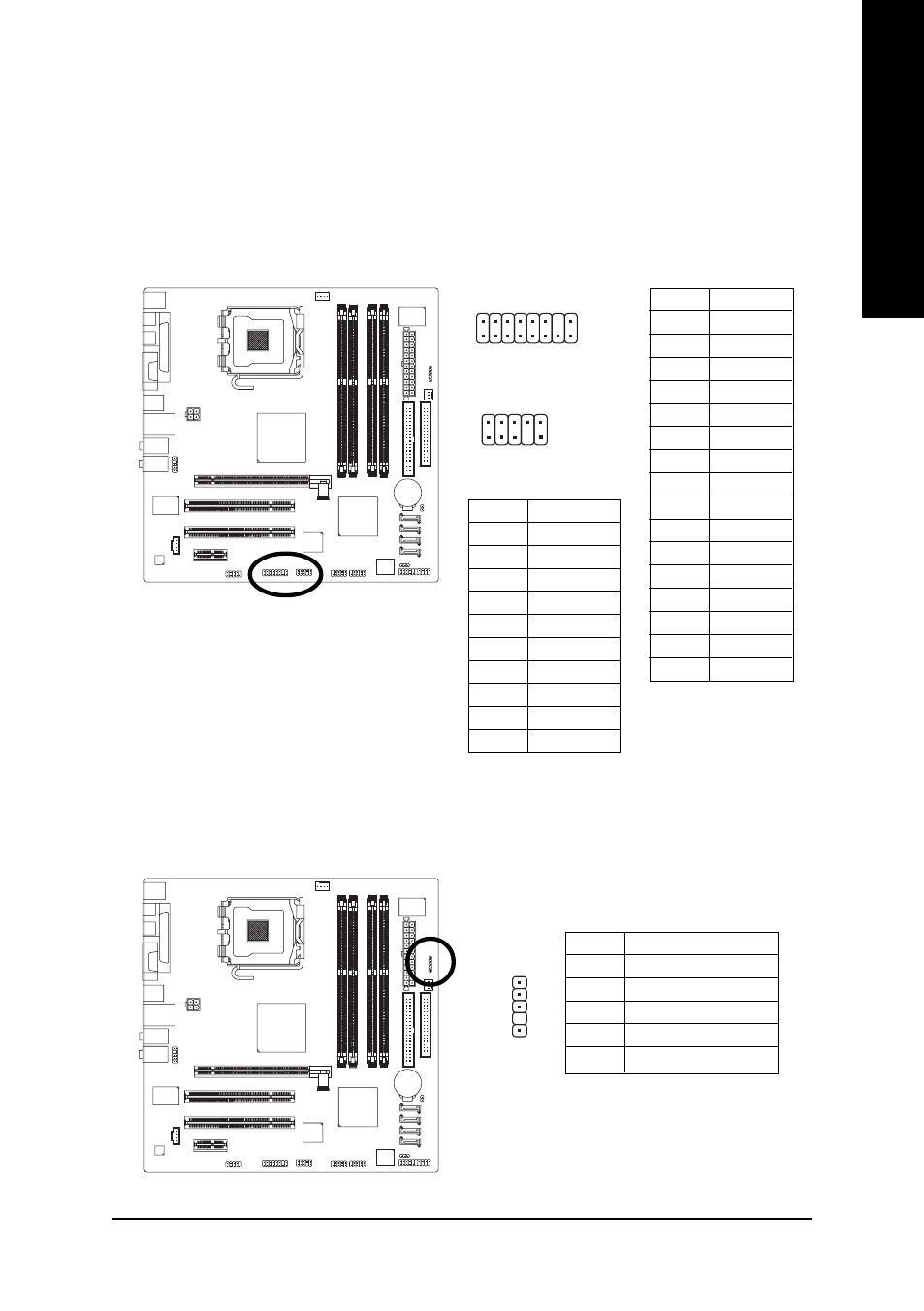

13) F1_1394/F2_1394 (IEEE 1394 Connector)
Serial interface standard set by Institute of Electrical and Electronics Engineers, which has features
like high speed, high bandwidth and hot plug.
Be careful with the polarity of the IEEE1394 connector. Check the pin assignment carefully while
you connect the IEEE1394 cable, incorrect connection between the cable and connector will make
the device unable to work or even damage it. For optional IEEE1394 cable, please contact your
local dealer.
Pin No. Definition
1 VCC
2 No Pin
3 IR RX
4 GND
5 IR TX
