Magnum DS880 Dual-Speed Stackable Hubs Installation and User Guide (05/01)
21
www GarrettCom com . .
4.2 Port Speed Settings for 10,100Mbps Or 10/100Mbps Mode only
1 2 3 4 5 6 7
8
10/100 100
ON OFF
ON OFF
1 2 3
4 5 6 7 8
10/100 100
SW2
SW3
Port 1
Port 2
Port 3
Port 4
Port 5
Port 6
Port 7
Port 8

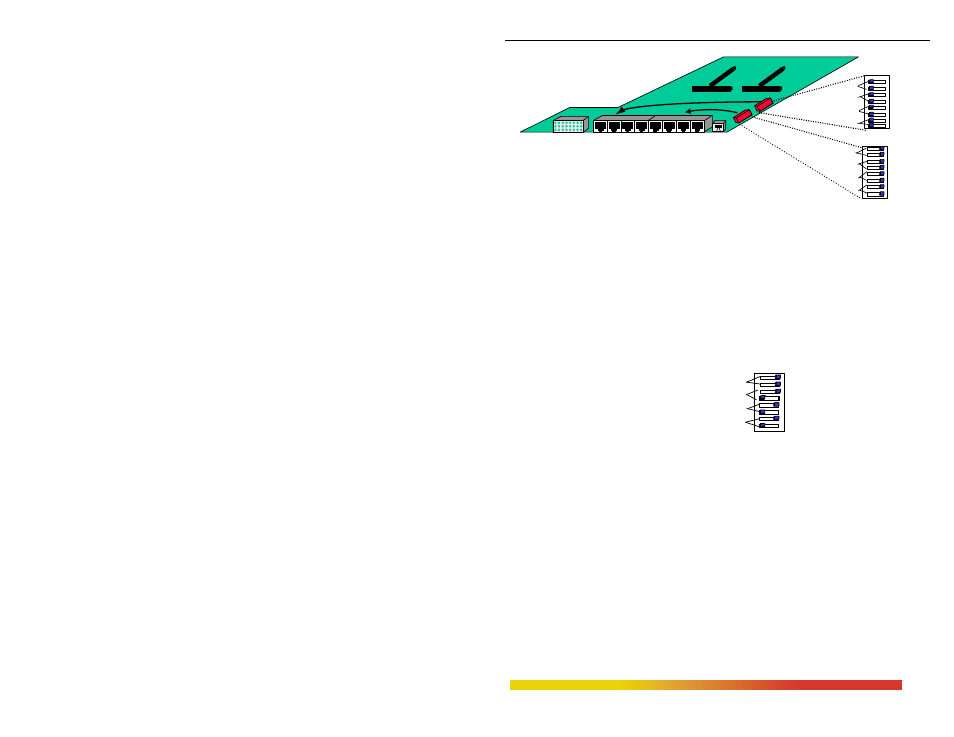

Figure 4.2: Switch Settings for 10/100Mbps and 100Mbps Speed
The latest Magnum DS880 unit is equipped with Switches for setting Port Speed.
The SW2 and SW3 switches are located on the right side of the main board as shown in the
figure 4.2 above. These switches allow the user to set the speed at 10, 100Mbps or 10/100Mbps
auto-sense. The unit has been set at 10/100Mbps at the time of shipping.
The Switch SW3 represents port#1 to 4 and the switch SW2 port#5 to 8 as shown in the Fig 4.2
above. The switches has 8 Dip-switches each. Every two contiguous Dip-switches represent one
single port. To fix the speed at 100Mbps, both DIP-switch position have to slide towards the 100
side. In the above Fig 4.2 the Switch SW3 has
been fixed 10/100Mbps and Switch SW2 at
100Mbps. Setting the port at 10Mbps is little
bit tricky. The user has to slide the odd number
of Dip-switch to ON (or 10/100) position and
even number to reverse
10/100
ON OFF
port# 1,2,3 has been fixed at 10Mbps
Port 1
Port 2
Port 3
Port 4
Figure 4.2a Speed settings at 10Mbps (OFF or 100) position as shown in the Fig 4.2a above.
