Installation Instructions
PI-450/950 PIR Camera
1036380B / February 2003
7
LED
E
NABLE
/D
ISABLE
J
UMPER
Enabled Disabled
H
IGH
D
ENSITY
L
ENS

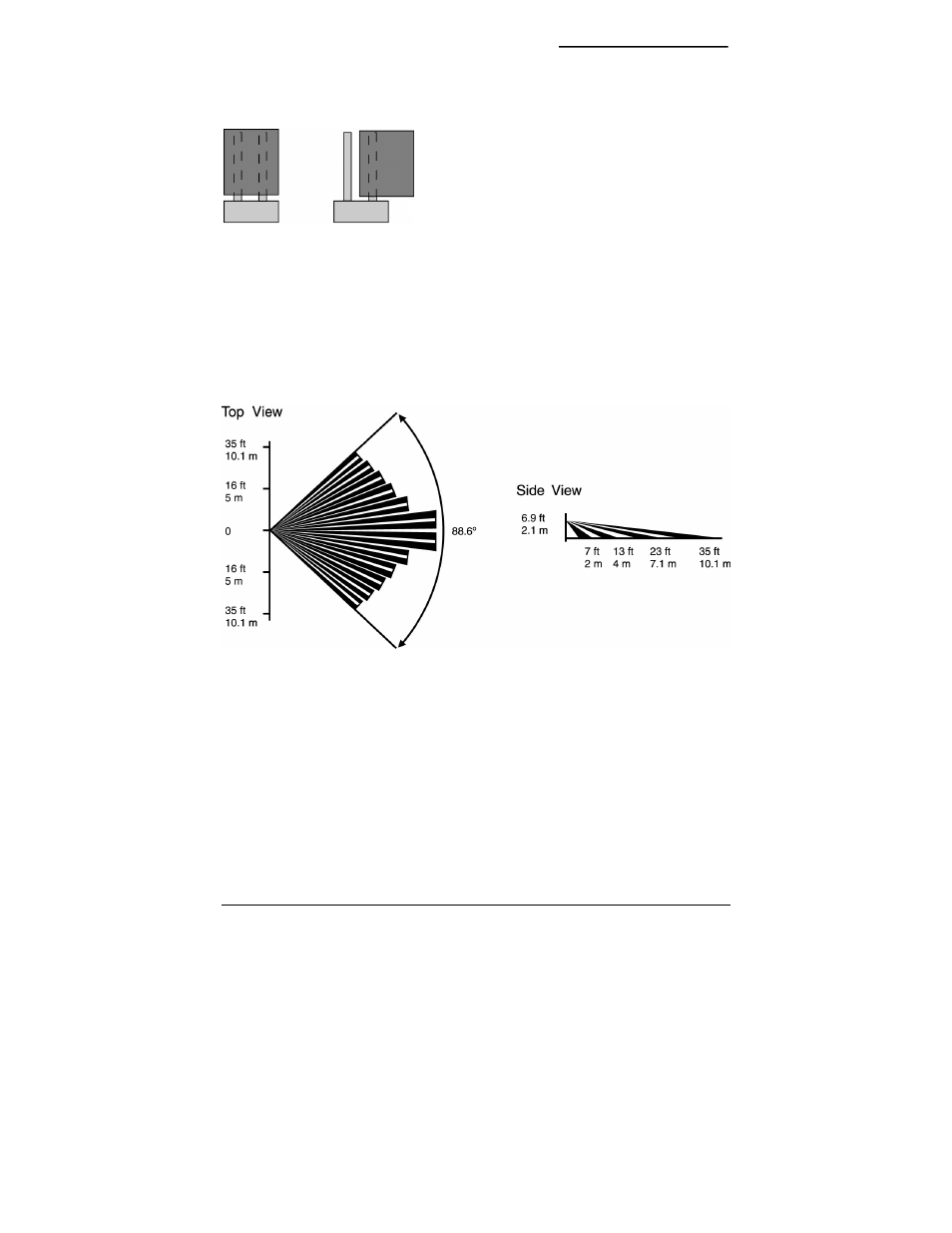

Figure 5 shows the pattern produced when the PIR is mounted flat
against the wall at a height of 7 feet (2 m). The pattern will vary when the
PIR is angled to get the best camera view.
Figure 5. Pattern produced when the PIR is mounted flat at 7 feet (2 m)
