2.1 Interconnection Diagram
There are several ways to connect the BT100 series IP telephone:
1. Connected directly behind Cable/DSL modem
2. Connected to LAN side of a (wireless) SOHO router (This is the most popular connection).
3. Connected to an Ethernet network

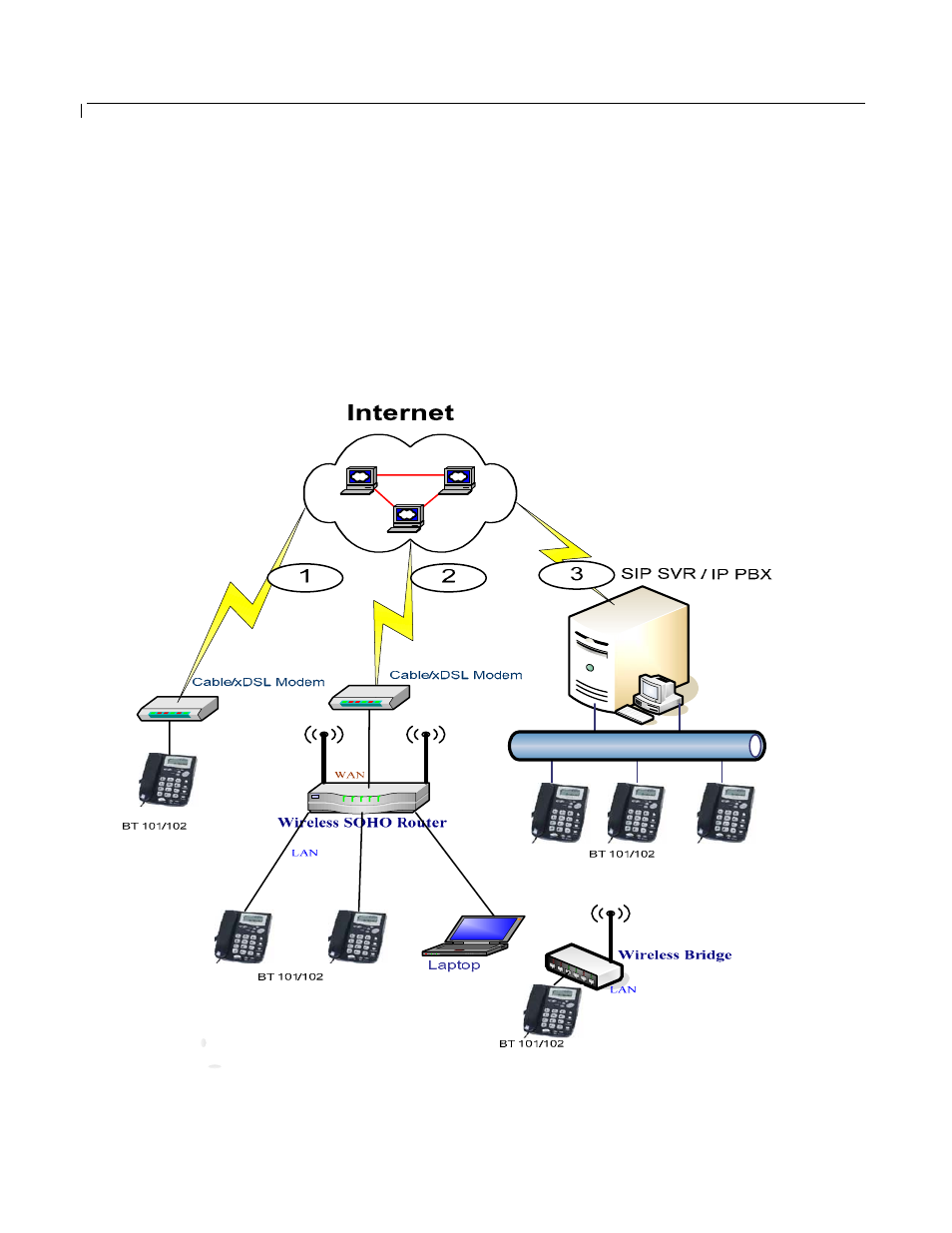

Following diagram illustrates the interconnection of phones in above-mentioned networks:
