G0623X/G0623X3 10" Sliding Table Saw

-73-

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

��

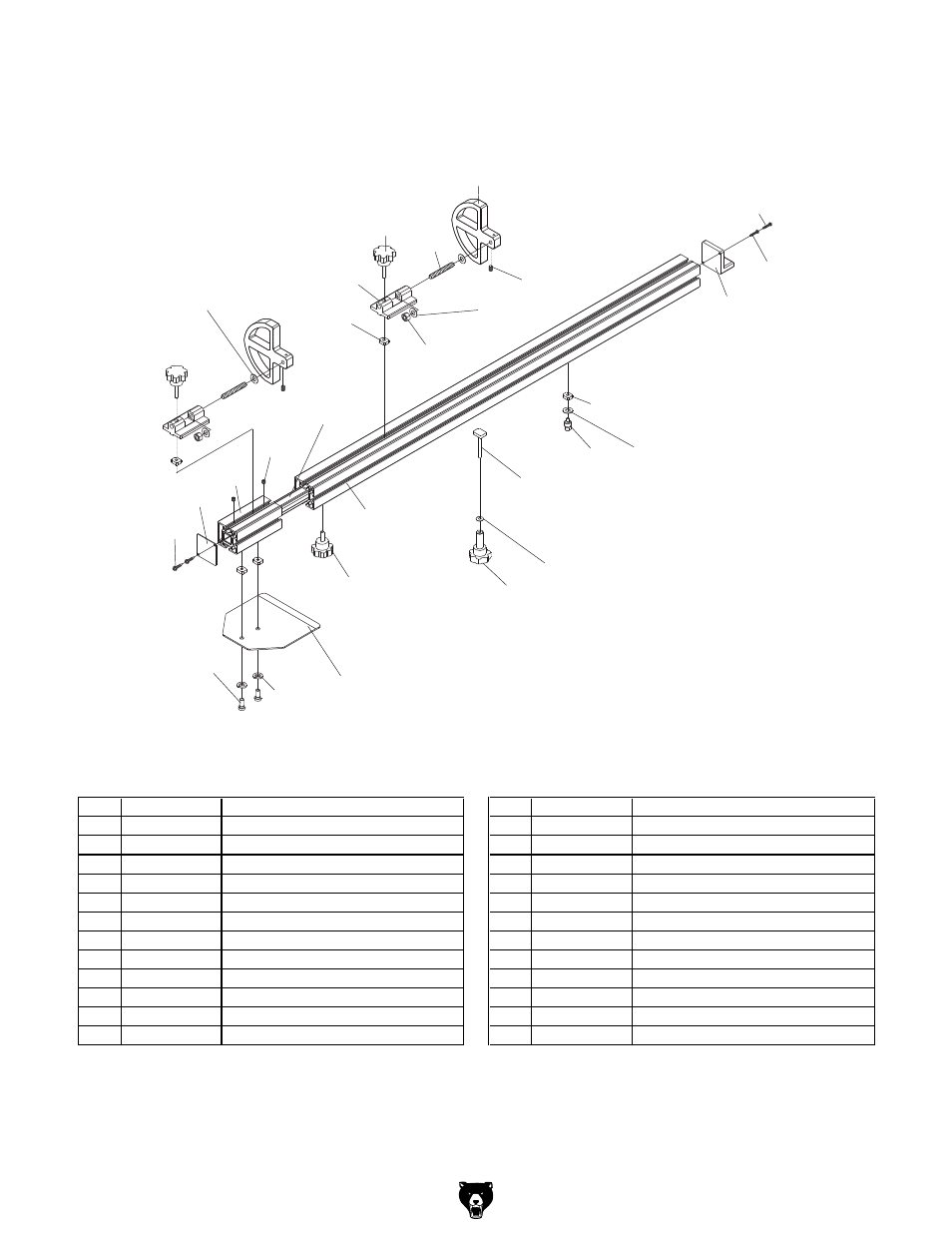

Crosscut Fence

REF PART #

DESCRIPTION

REF PART #

DESCRIPTION

1101 P0623X1101

T-NUT M8-1.25

1114 P0623X1114

LOCATE PLATE

1102 P0623X1102

STOP BRACKET

1115 P0623X1115

KNOB SCREW M8-1.25 X 25

1103 P0623X1103

KNOB M8-1.25 X 40

1116 P0623X1116

SQUARE FENCE

1104 P0623X1104

SCREW

1117 P0623X1117

ROTATE SHAFT

1105 P0623X1105

FLIP STOP

1118 P0623X1118

FIBER WASHER 10MM

1106 PSS01M

SET SCREW M6-1 X 10

1119 P0623X1119

ROTATE BLOCK

1107 PLN05M

LOCK NUT M10-1.5

1120 PS38M

PHLP HD SCR M4-.7 X 10

1108 P0623X1108

SQUARE TUBE

1121 PS25M

PHLP HD SCR M4-.7 X 35

1109 P0623X1109

EXT FENCE

1122 P0623X1122

FIBER WASHER 10MM

1110 P0623X1110

COVER

1123 PSS02M

SET SCREW M6-1 X 6

1111 PHTEK15M

TAP SCREW M4 X 10

1124 P0623X1124

KNOB SCREW M8-1.25 X 55

1112 PSBS03M

BUTTON HD CAP SCR M8-1.25 X 16

1125 P0623X1125

FENDER WASHER 8MM

1113 PLW04M

LOCK WASHER 8MM

1126 P0623X1126

T-BOLT M8-1.25 X 60
