ITEM PART NO. QTY. DESCRIPTION
1 0C3594 10 ASSEMBLY M6 HINGE
3 0A3359 40 SCREW BHSC M6-1.0 X 16 SS
4 0A3360 40 SHAKEPROOF INT M6 SS
5 0C2522 (A) 5 DOOR SMALL STD. WELD
6 0C2527 (A) 1 CORNER POST LH REAR
7 0C2528 (A) 1 CORNER POST RH REAR
8 0C2535 (A) 1 CORNER POST LH FRONT
9 0C2536 (A) 1 CORNER POST RH FRONT
10 0C2547 (A) 2 REAR BRACE TOP & BOTTOM
11 0C2550 (A) 4 SIDE BRACE TOP & BOTTOM
12 0C2555 (A) 2 SIDE SUPPORT
13 0C2560 (A) 1 ROOF ONE-PIECE WLDMT
14 0C2642 (A) 1 FRONT BRACE BOTTOM (2.4L & 4.3L)
0C4567 (A) 1 FRONT BRACE BOTTOM (3.0L D ONLY)
15 0C2641 (A) 1 FRONT BRACE TOP (2.4L & 4.3L)
0C4566 (A) 1 FRONT BRACE TOP (3.0L D ONLY)
16 0C2633 5 PLATE STRIKER GEN 2000
17 0C6749 20 SCREW PPHM M4-0.7 X 12 SS
18 060069 5 PADDLE HANDLE LOCK
19 0C6748 20 NUT LOCK HEX M4-0.7 SS NYL INS
20 080490 20 WASHER FLAT #8 SS
21 087233 5 RIVET POP 3/16 X 1/4
22 0C4065 (A) 1 DUCT FRONT LH
ITEM PART NO. QTY. DESCRIPTION
23 0C4064 (A) 1 DUCT FRONT RH
24 0C4066 (A) 1 DUCT BOTTOM
25 0C4067 (A) 1 DUCT FRONT PANEL
26 0C4117 (A) 1 DUCT FRONT TOP RH
28 0C2634A 1 ASSEMBLY COVER ACCESS
29 0C2454 76 SCREW TH-FRM M6-1X16 N WA Z/JS
30 022129 2 WASHER LOCK M8-5/16
31 042907 2 SCREW HHC M8-1.25 X 16 G8.8
32 022473 15 WASHER FLAT 1/4 ZINC
33 022097 1 WASHER LOCK M6-1/4
34 022127 1 NUT HEX 1/4-20 STEEL
35 0A9881 49.1 FT. GASKET DOOR RUBBER
36 0C3393 2 SCREW SHOULDER
39 0C3400 (A) 1 COVER EXHAUST HOLE
42 0C3397 4 FASTENER RATCHET
43 066760 39-3/8" STRIP SEALANT 1/8 X 1
44 022145 2 WASHER FLAT 5/16 ZINC
OPTIONAL COMPARTMENT MATERIALS:
ALL P/N'S WITH AN "A" SUFFIX INDICATE
ALUMINUM MATERIAL OPTION.
3
1
4
5
11
10
FRAME
BASE
19 18
5
17
20
3
4
1 35
11
33
34
9 11
10
12
5
6
11
12
7
21
16
13
29
15
28
32
29
39
14
42
29
32
25
31
22
30
43
24
26
23
36
44
8
42 Generac ® Power Systems, Inc.
Section 7 — Exploded Views and Parts Lists
(Model Nos. 004373-1 & 004626-0) Guardian Liquid-cooled 40 kW Generators

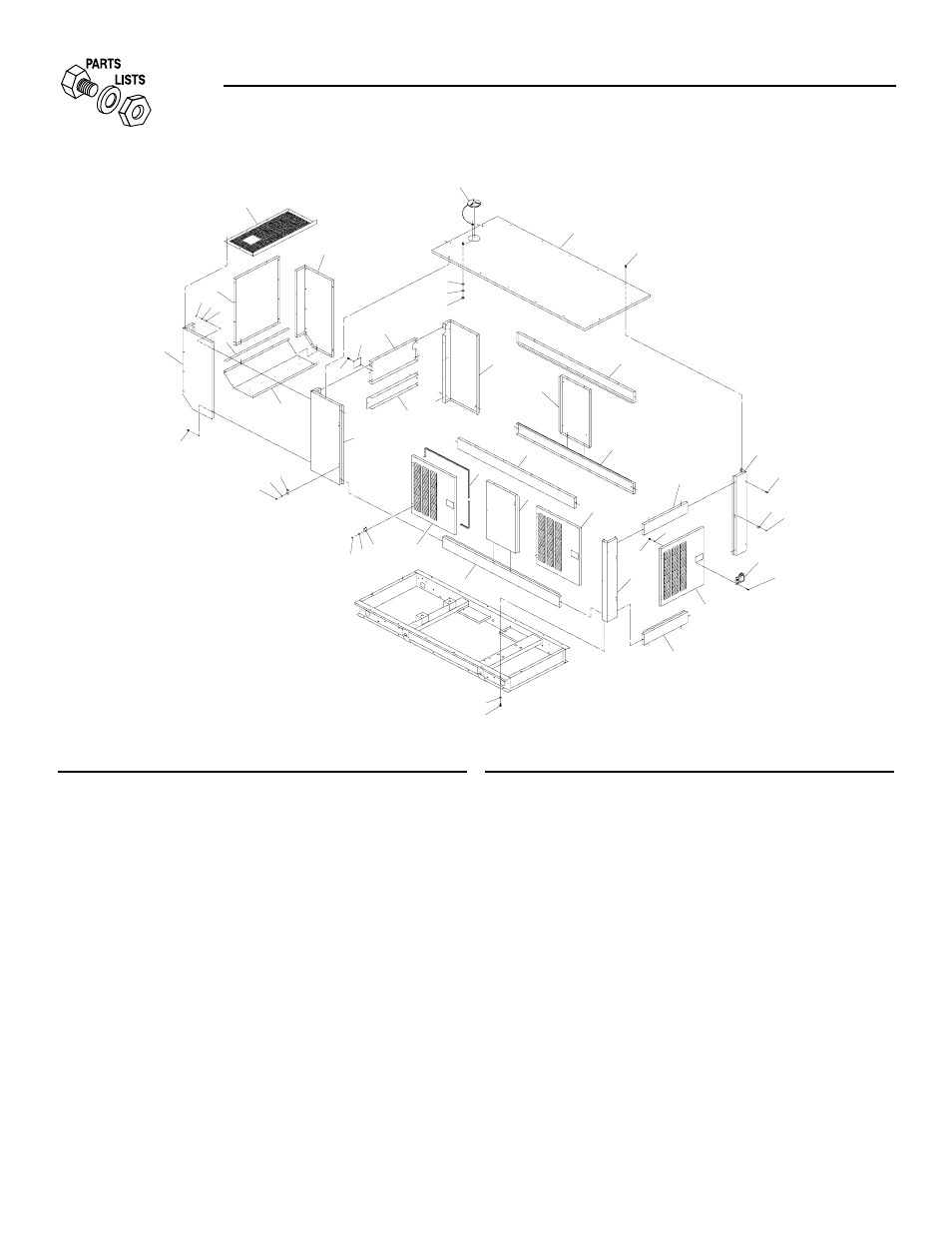

Compartment – Drawing No. 0C4401-F
