Connection to
External equipment
10
• Component Input ports
You can get better picture quality if you connect DVD player with
component input ports as below.
How to connect
Connect DVD video inputs to Y, P B , P R of COMPONENT (DVD INPUT) and audio inputs to Audio sockets of AUDIO
INPUT.
How to use
Turn on the DVD player, and insert a DVD.
Use INPUT SELECT button on the remote control to select COMPONENT . Refer to the DVD player's manual for oper-
ating instructions.
Watching DVD
5 5

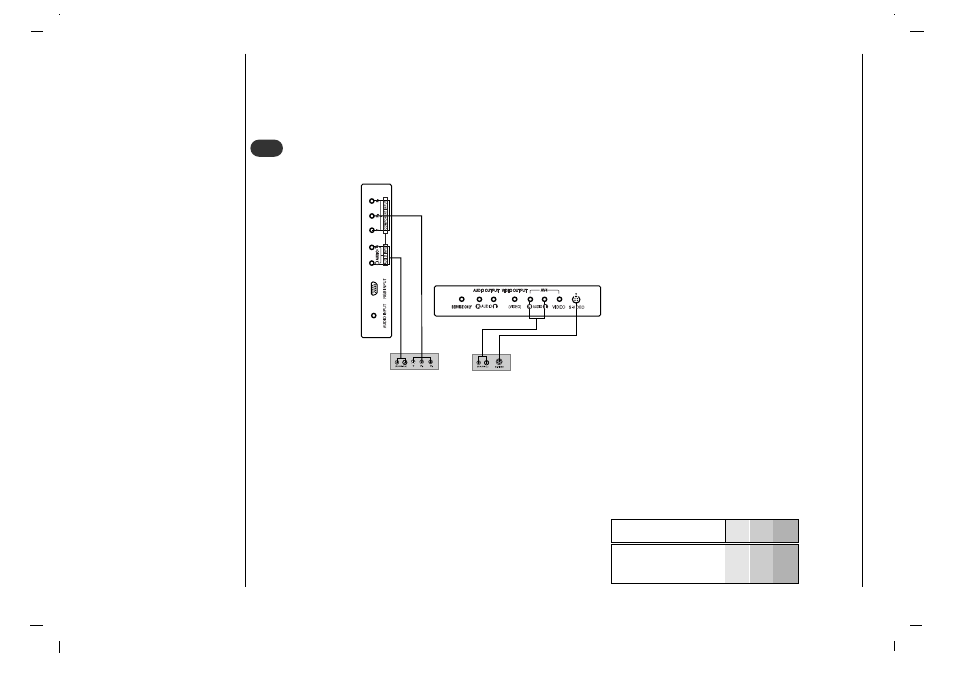

< Side panel of the set >
< Back panel of a DVD player >
or
Component ports of the
set
Y P B P R
Video output ports
of DVD player
Y
Y
Y
Y Pb
B-Y
Cb
P B
Pr
R-Y
Cr
P R
