G8994Z Variable Speed Jig Saw
-3 -

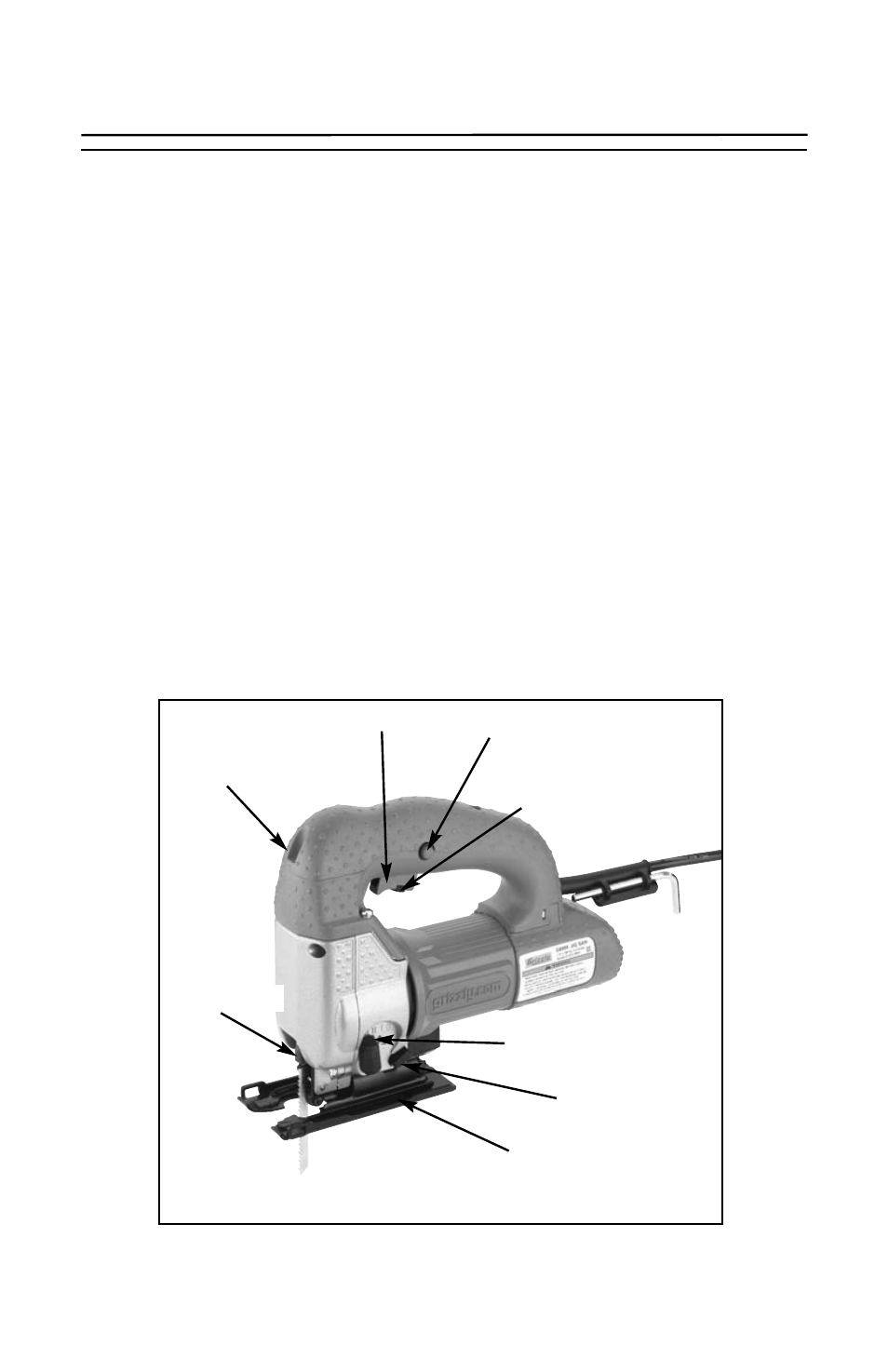

Fig 1. Location of controls.
C CO ON NT TR RO OL L L LO OC CA AT TIIO ON N
C Co on nttrro oll L Lo oc ca attiio on n
Refer to Figure 1 for the location of the key
components and controls of the machine.
These controls are called out later in the
manual for their specific use when operat-
ing the saw. Become familiar with the con-
trols and all of the adjustments and set-
tings before operating the jig saw.
Variable Speed Switch
Stroke Rate Adjustment
Orbit Selector
Blade Plunger
Chip Blower Lever
Footplate
Trigger Lock
Blade Locking
Screw
S Sp pe ec ciiffiic ca attiio on ns s
Speed: Variable from 0-3100 S.P.M.
Motor Type: Universal Brush Motor
Motor Power: 110V, 5.0 Amp
Blade Orbit: 4 Settings
Stroke Length: 1"
Stroke Settings: Variable from 1 to 6
Blade: T-Shank Mounting, 3" - 5"
Blade Guide: Grooved Roller Bearing
Dust Blower: 3 settings
Footplate: Adjustable from +45˚ to -45˚
Weight: 5.5 lbs
Accessories Included: Footplate Wrench &
Blade Lock Screwdriver
