MODEL G4570

ACCU-SHARP

®

GRINDING JIG

INSTRUCTIONS

Copyright © NoVEMBEr, 2008 By grizzly iNdustrial, iNC.

WARNING: NO PORTION Of THIS MANUAL MAy bE REPRODUCED IN ANy SHAPE

OR fORM WITHOUT THE WRITTEN APPROvAL Of GRIzzLy INDUSTRIAL, INC.

#ts11341 priNtEd iN ChiNa

To reduce the risk of serious injury when

using this grinding jig, take the following

precautions:

1. GRINDER OWNER'S MANUAL. read

and understand the owner's manual for
your grinder and always follow all of the
safety precautions and instructions for
your grinder.

2. EyE/fACE PROTECTION. always wear

safety glasses or a face shield to protect
yourself from flying material.

3. HAND PLACEMENT. always keep your

hands and fingers away from the spinning
grinding wheel, and protect yourself from
the sharp edges of the tool.

4. SECURE CLAMPING. Make sure the tool

is securely clamped in the jig and that the
table is firmly locked in the proper posi-
tion.

Introduction

the Model g4570 accu-sharp

®

grinding Jig

works with the tool rest table of your grinder, such
as the grizzly Model g1036 slow speed grinder,
to properly position chisels and plane irons up to
2

3

4

" wide, as shown in

figure 1. the tool clamp-

ing jig uses a special plastic rod and pads to slide
the tool from side-to-side across the auxiliary
table and the grinding wheel.

If you need help with your new grinding jig, call
our Tech Support at: (570) 546-9663.

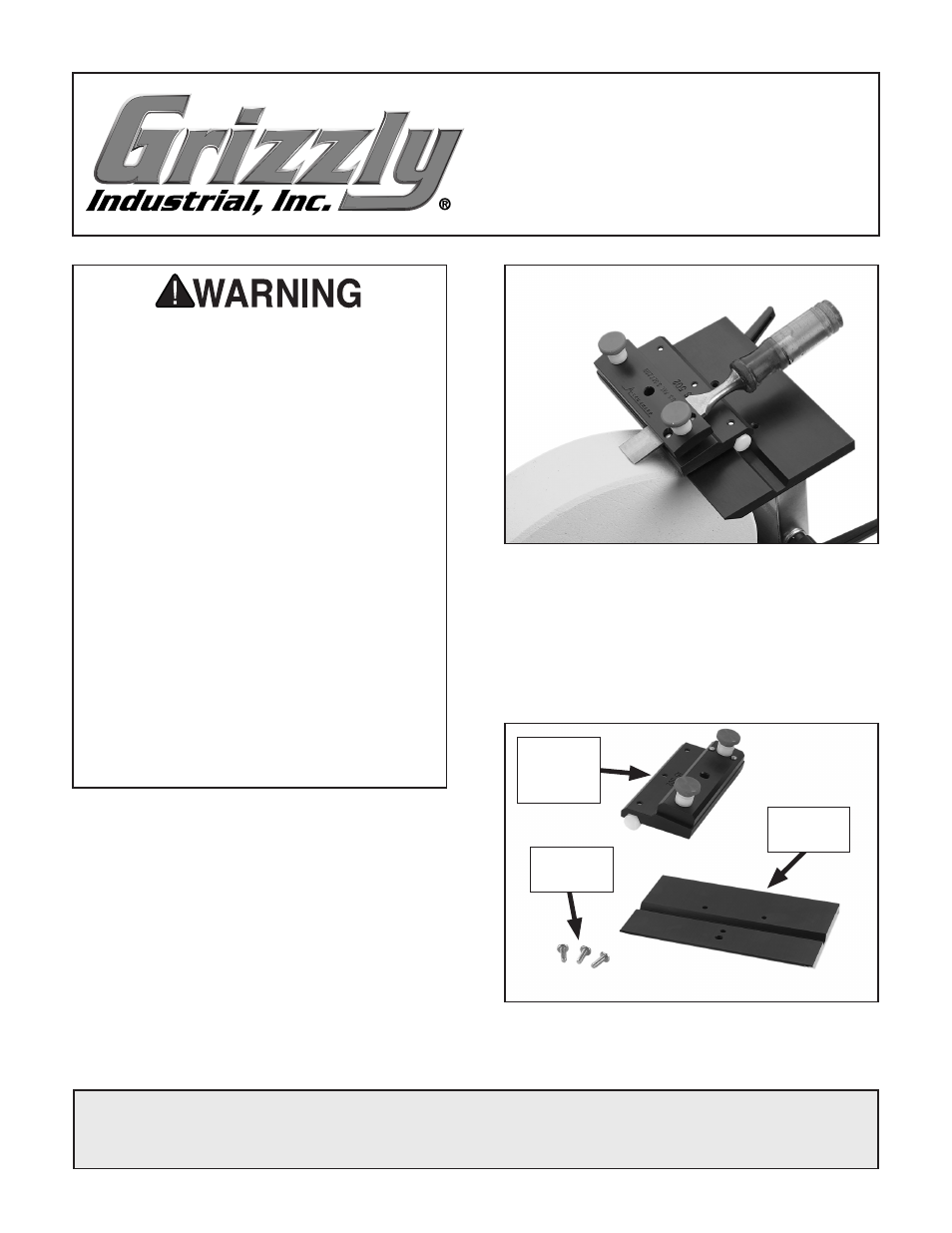

figure 1. using the accu-sharp Jig to grind the

bevel of a flat chisel.

Inventory

after removing the contents of the shipping pack-
age, lay them out and refer to

figure 2 to inven-

tory the components.

figure 2. Model g4570 inventory.

Mounting

screws

auxiliary

table

tool

Clamping

Jig
