Grizzly G1023S110 - Manual (Page 52)

-50- G1023S Series Heavy-Duty 10'' Table Saw
A
A
A
A
A
A

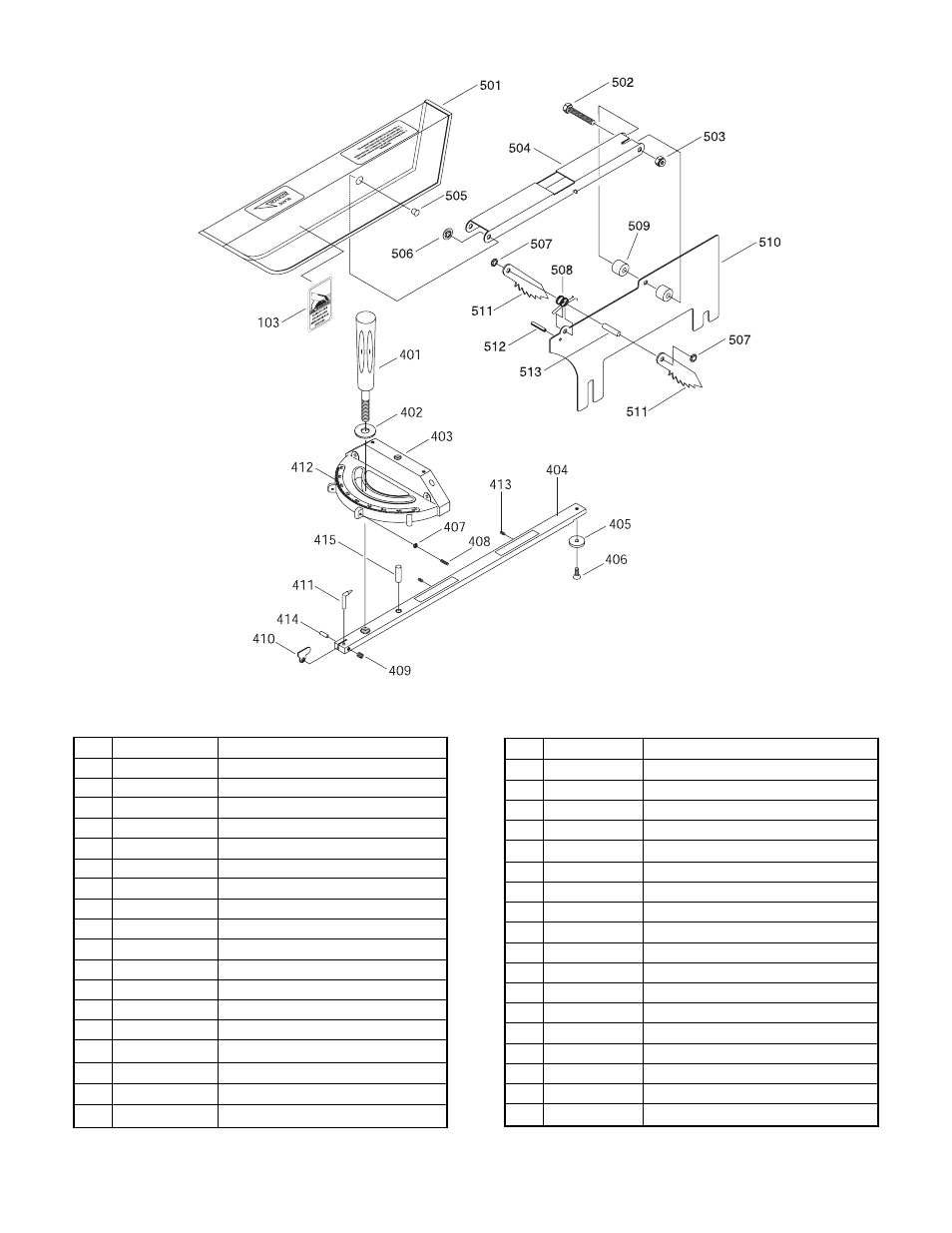

400 P1023400 COMPLETE MITER GAUGE
401 P1023401A KNOB
402A PW07 FLAT WASHER 5 ⁄
16
"
403 P1023403 MITER GAUGE BODY
404 P1023404A MITER BAR
405A P1023405A RING
406A PFH26 FLAT HD SCR 10-24 X 1 ⁄
4
"
407A PN07 HEX NUT 10-24
408A PSS32 SETSCREW 10-24 X 3 ⁄
4
"
409A PSS29 SETSCREW 10-24 X 1 ⁄
4
"
410 P1023410 STOP
411 P1023411 POINTER
412 P1023412 SCALE
413 P1023SL413 SETSCREW 10-24 X 5 ⁄
8
"
414 P1023SL414 ROLL PIN 1.5 X 13
415 P1023SL415 MITER HINGE PIN
501 P1022174
GUARD
502 P1022171 HEX BOLT M6-1.0 X 40
503 PLN03M LOCK NUT M6-1.0
504 P1022162 SUPPORTING ARM
505 P1022173 PIVOT PIN
506 P1022175 RETAINER
507 P1022163 RETAINER
508 P1022176 SPRING
509 P1022167 SPACER
510 P1022073 SPLITTER
511 P1022164 PAWL
512 PRP20M ROLL PIN 4 X 22
513 P1022166 PIN
535 P1023535 U-CLAMP
536 P1023536 L-BRACKET
537 P1023537 LOCKING PLATE
538 PB26 HEX BOLT 1 ⁄
4
"-20 X 1 1 ⁄
2
"
539 PW06 FLAT WASHER 1 ⁄
4
"
540 PN05 HEX NUT 1 ⁄
4
"-20
541 PB07 HEX BOLT 5 ⁄
16
"-18 X 3 ⁄
4
"
542 PW07 FLAT WASHER 5 ⁄
16
"
543 PN02 HEX NUT 5 ⁄
16
"-18
REF# PART# DESCRIPTION REF# PART# DESCRIPTION
