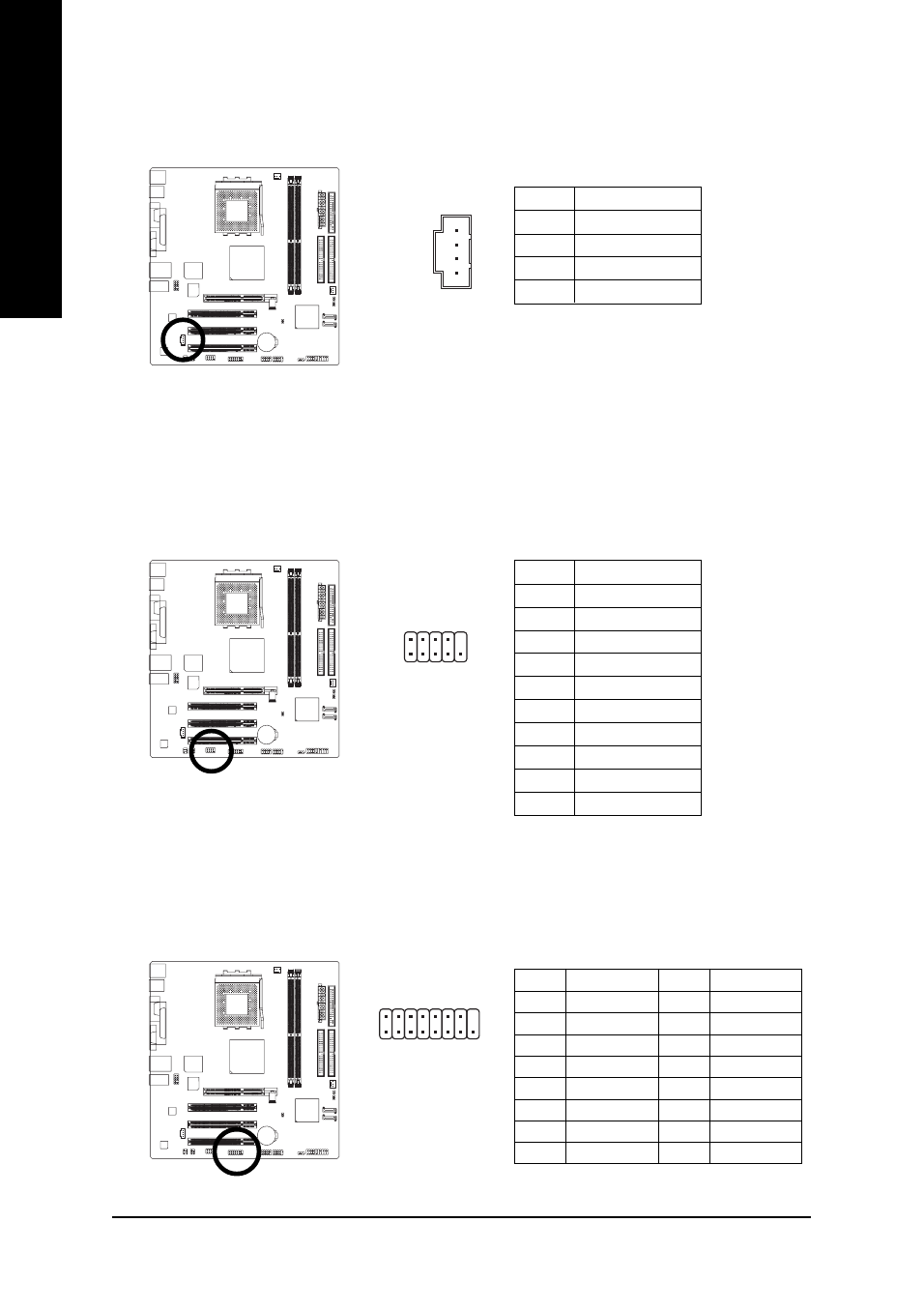

13) COMB (COM B Connector)
Be careful with the polarity of the COMB connector. Check the pin assignment carefully while you
connect the COMB cable, incorrect connection between the cable and connector will make the device
unable to work or even damage it. For optional COMB cable, please contact your local dealer.
14) GAME (Game Connector)
This connector supports joystick, MIDI keyboard and other relate audio devices. Check the pin assign-
ment while you connect the game cables. Please contact your nearest dealer for optional game cables.
Pin No.
Definition
1
NDCDB-
2
NSINB
3
NSOUTB
4
NDTRB-
5
GND
6
NDSRB-
7
NRTSB-
8
NCTSB-
9
NRIB-
10
No Pin
1
9
2
10
1
15
2
16
Pin No.
Definition
1
VCC
2
GRX1_R
3
GND
4
GPSA2
5
VCC
6
GRX2_R
7
GRY2_R
8
MSI_R
Pin No. Definition
9
GPSA1
10
GND
11
GRY1_R
12
VCC
13
GPSB1
14
MSO_R
15
GPSB2
16
No Pin
12) CD_IN (CD In Connector)
Connect CD-ROM or DVD-ROM audio out to the connector.
Pin No.
Definition
1
CD-L
2
GND
3
GND
4
CD-R
1
