SPDIF Output Device (Optional Device)

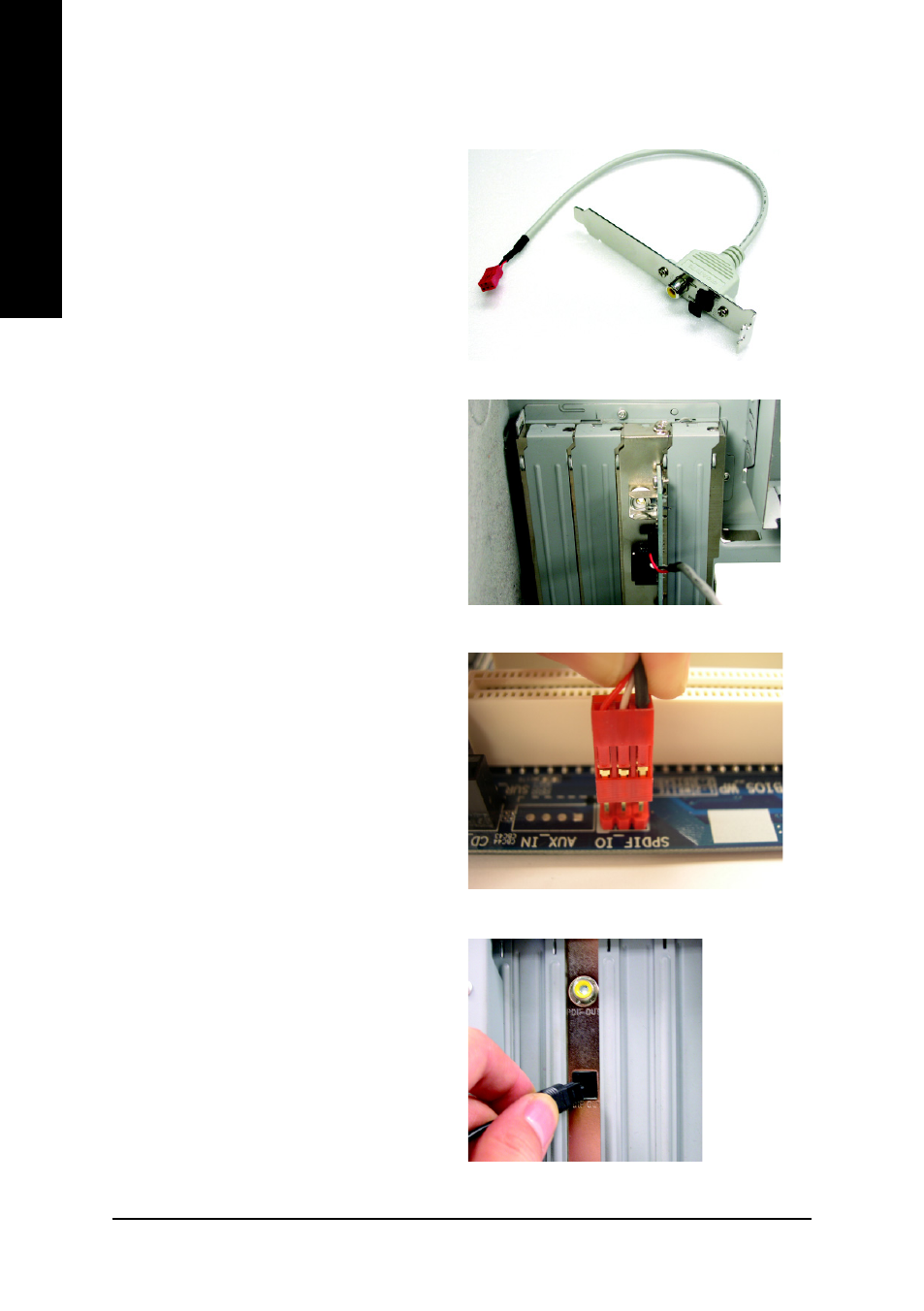

STEP 3:
Connect SPDIF to the SPDIF decoder.
Secure the metal bracket of the SPDIF Output
device to the chassis back panel with a screw.
Connect the SPDIF device cable to the SPDIF_IO
connector on the motherboard.
A "SPDIF output" connector is an optional device.
The SPDIF_IO cable with rear bracket could link to
the "SPDIF_IO" connector (As picture.) For the fur-
ther linkage to decoder, rear bracket provides co-
axial cable and Fiber connecting port.
STEP 1:
STEP 2:
