SS-CKF50

P

RODUCT

S

PECIFICATIONS

Quality Makes the Difference!

All of our systems are designed and manufactured with the same high-quality standards, regardless of size or effi ciency. We have designed these units to signifi cantly reduce

the most frequent causes of product failure. They are simple to service and forgiving to operate. We use quality materials and components. Finally, every unit is run-tested

before it leaves the factory. That’s why we know... there’s no better quality.

Visit our website at

www.goodmanmfg.com for information on:

Goodman Products • Customer Services • Parts

Goodman Manufacturing Company, L.P.

2550 North Loop West, Suite 400

Houston, Texas 77092 USA

Goodman Manufacturing Company, L.P., reserves the right to discontinue, or change at any time, specifi cations or designs without notice or without incurring obligations.

Copyright © 2003 Goodman Manufacturing Company, L.P. • Houston, Texas • Printed in the USA. • Goodman products are made proudly in the USA.

S

CHEMATIC

W

IRING

D

IAGRAM

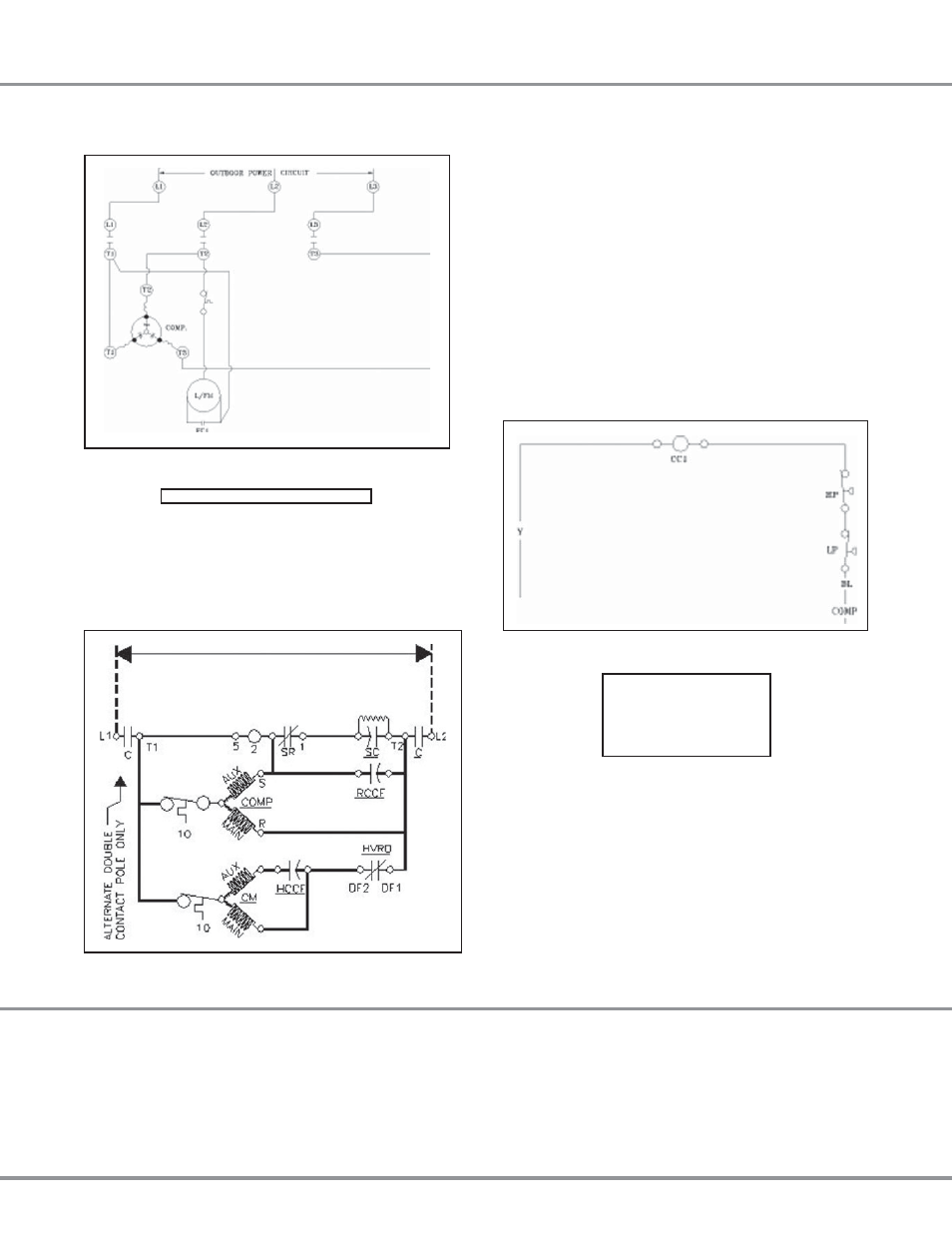

WIRE CODE: Y - Yellow • PU - Purple

Power Circuit

Component Legend

C - Contactor

Comp - Compressor

FC - Fan Motor Capacitor

HP - High-pressure Control

FM - Fan Motor

IO - Internal Overload

Low-Voltage Circuit

Single-Phase Line Voltage
