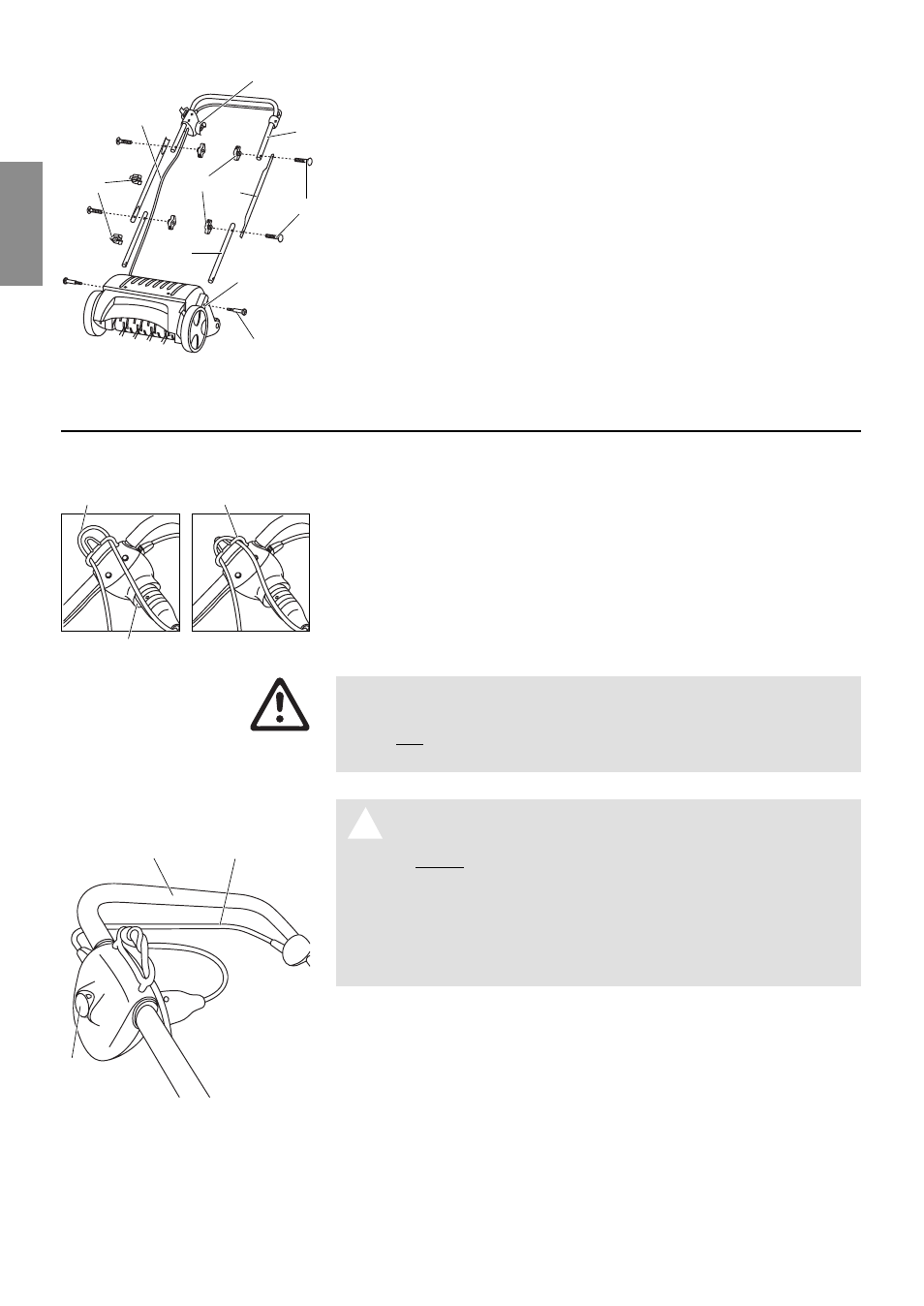

2. Insert the two locking bolts 1 from outside through the holes
in the two central sections 2 of the upright and secure to the
lower sections of the upright 5 with two wing nuts 4 .
3. Screw the upper part of the upright with starting handle 3 to
the central sections of the upright 2 with two more locking
bolts 1 and the wing nuts 4 .
This completes the assembly of the hanle.
Warning : Fit the upper section of the upright with starting
handle
3 in such a way that the plug 7 with the power
cable 8 is on the right side (in direction of movement) (see
fig.).
4. Attach connection cable 8 to the handle with the two cable
clips 0 .
5. Operation
1. Push connector of extension cable 0 on to the plug 7 .
2. Draw a loop of the extension cable 0 through the cable strain
relief device A 1 and suspend in position 2.
This prevents inadvertent disconnection of the plug and socket
connection.
3. Insert extension cable 0 into a mains socket.
Danger of injury if the Lawn Scarifier does not switch off
automatically !
V Do not remove or bridge safety devices fitted to the Aera-
tor (e.g. by tying the starting lever to the upper handle) !
Danger ! The Scarifier does not stop immediately after
A
the motor has been switched off :
V Never lift, tip or carry the Scarifier with the motor
running !
V Never start on solid ground (e.g. asphalt).
V Always maintain the safety distance between the
aerator cylinder and the user as defined by the
guide handle.
1. Place Lawn Scarifier on flat grass surface.
2. Keep safety interlock B pressed down and pull starting lever C
on the upper handle 3 . The Lawn Scarifier starts.
3. Release safety interlock B .
When in operation, the extension cable 0 must always be
guided in the direction you are working and to the side of
the area to be worked on.
Always work away from the connection cable.
Connecting to power sypply :
Starting
Lawn Scarifier:
0 A
7
1 2
3
B
C
3
9
6
5
1
2
4 0
8
7
