left bracket, stem and
right bracket (Figure
12). Tighten both nuts.
NOTE: keep pouch and
belt in a safe place in
case you decide to use
the pouch configuration
at a later date.
Belt Mount:
A. Unfasten velcro strap on pouch. Slide
control housing, control buttons up, into the pouch.
Refasten velcro strip.
B. Unwind belt strap and adjust to fit around your
waist. Slip one side of the strap through the loop
in the back of the pouch (Figure 13) and snap belt
together around your waist (Figure 14). NOTE: keep
control housing brackets and extra hardware in a safe
place in case you decide to use a mounted configura-
tion at a later date.
. Ensure the searchcoil connector at the rear of the
control housing is clean and the o-ring at the end of
the cable is well lubricated; add a little silicon grease
or petroleum jelly if necessary. DO NOT coat connec-
tor pins with lubricant. Insert searchcoil cable connec-
tor and gently tighten by hand; DO NOT over tighten.
10

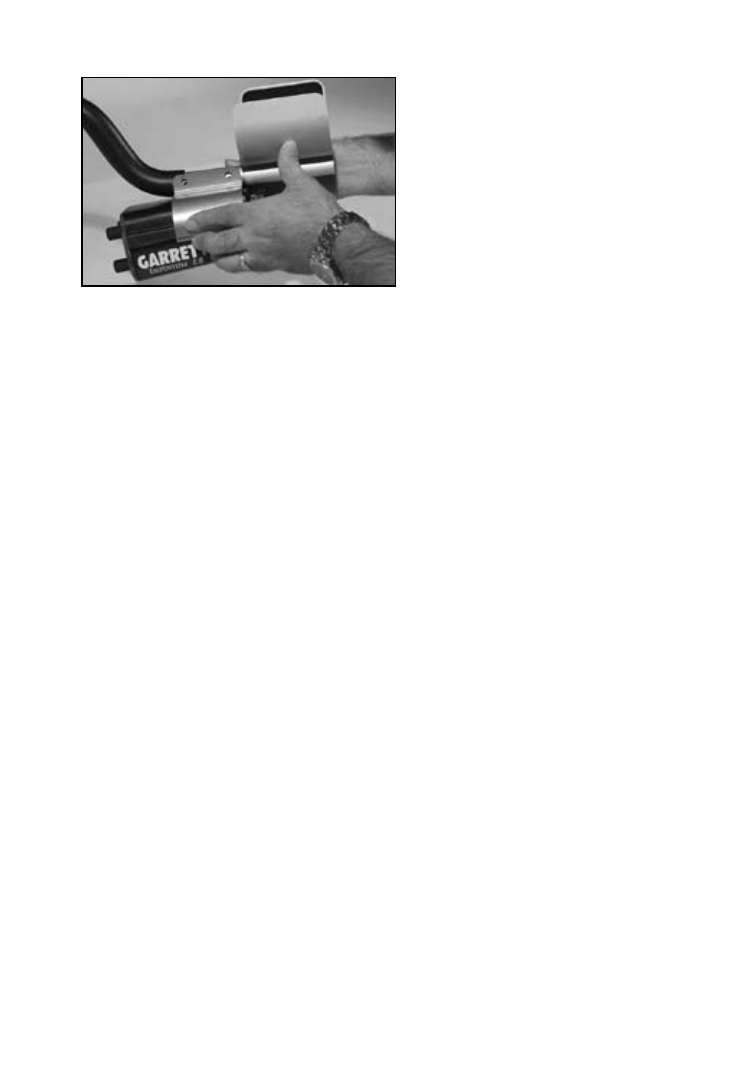

Figure 12
