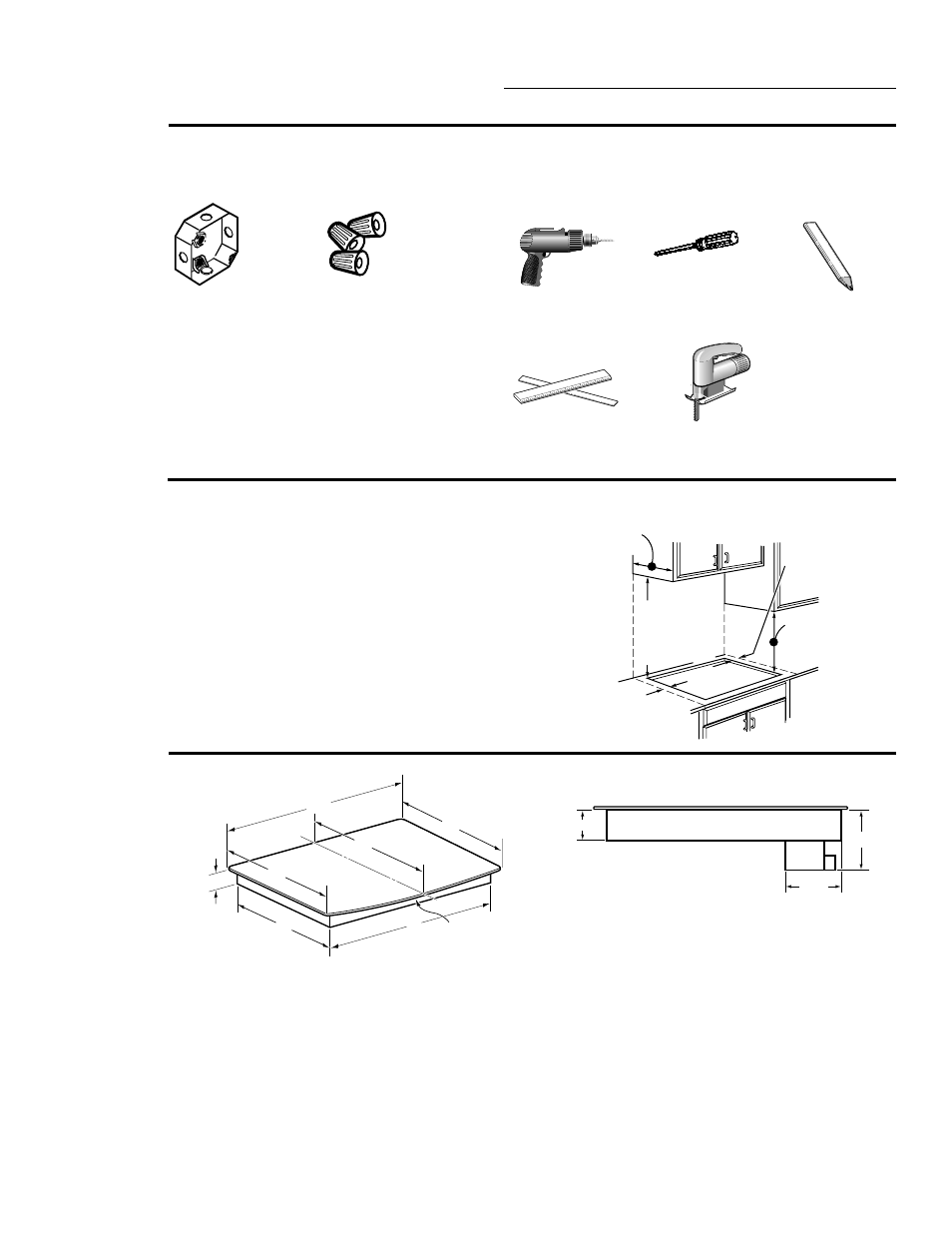

The following MINIMUM clearance
dimensions must be maintained.
Overall
Cooktop
Dimensions
4
Preparing the Opening
Electronic Radiant Cooktop
Minimum
Clearances
2" MIN.
clearance from
cutout to side
wall on the left
of the unit
30" MIN.
clearance from
countertop to
unprotected
overhead surface
1 1/2" MIN.
clearance from
cutout to side
wall on the right
of the unit
13" MAX. Depth
of unprotected
overhead cabinets
18" MIN.
height from
countertop to
nearest cabinet on
either side of unit
6 1/4"
5 1/2"
3 1/4"
Tools &
Materials
Required
1/8
″ Drill Bit &
Electric or Hand
Drill
Phillips Head
Screwdriver
Pencil
Ruler or
Straightedge
Wire Nuts
Saber Saw
Tools You Will Need
Junction Box
Materials Needed
C
L
C
L
20 7/8"
20 7/8"
19 1/4"
3 1/4"
21 7/16"
29 3/4"
28"
CURVED GLASS
