-22-
G0513X/G0514X/G0514X3 Extreme Series Bandsaw
Blade Tracking
Personal injury or death
can occur if the machine
starts while your hand
is touching the bandsaw
wheel during tracking
adjustments. Disconnect
power from the bandsaw
before performing blade
tracking adjustments.
The blade tracking is primarily affected by the
tilt of the upper wheel, also known as "Center
Tracking"; and the alignment of both wheels, also
known as "Coplanar Tracking." (For Coplanar
Tracking, see the
Wheel Alignment instructions
on Page 51.)
The wheels on this bandsaw were aligned at the
factory, so Center Tracking is the only adjust-
ment that needs to be performed when the saw
is new.
To center track the blade:
1. DISCONNECT BANDSAW FROM POWER!
2. Make sure the upper and lower blade guides
are adjusted away from the blade.
3. Engage the quick tension lever and turn the
blade tension handwheel until the tension
scale (
Figure 16) reads between 4 and 6.

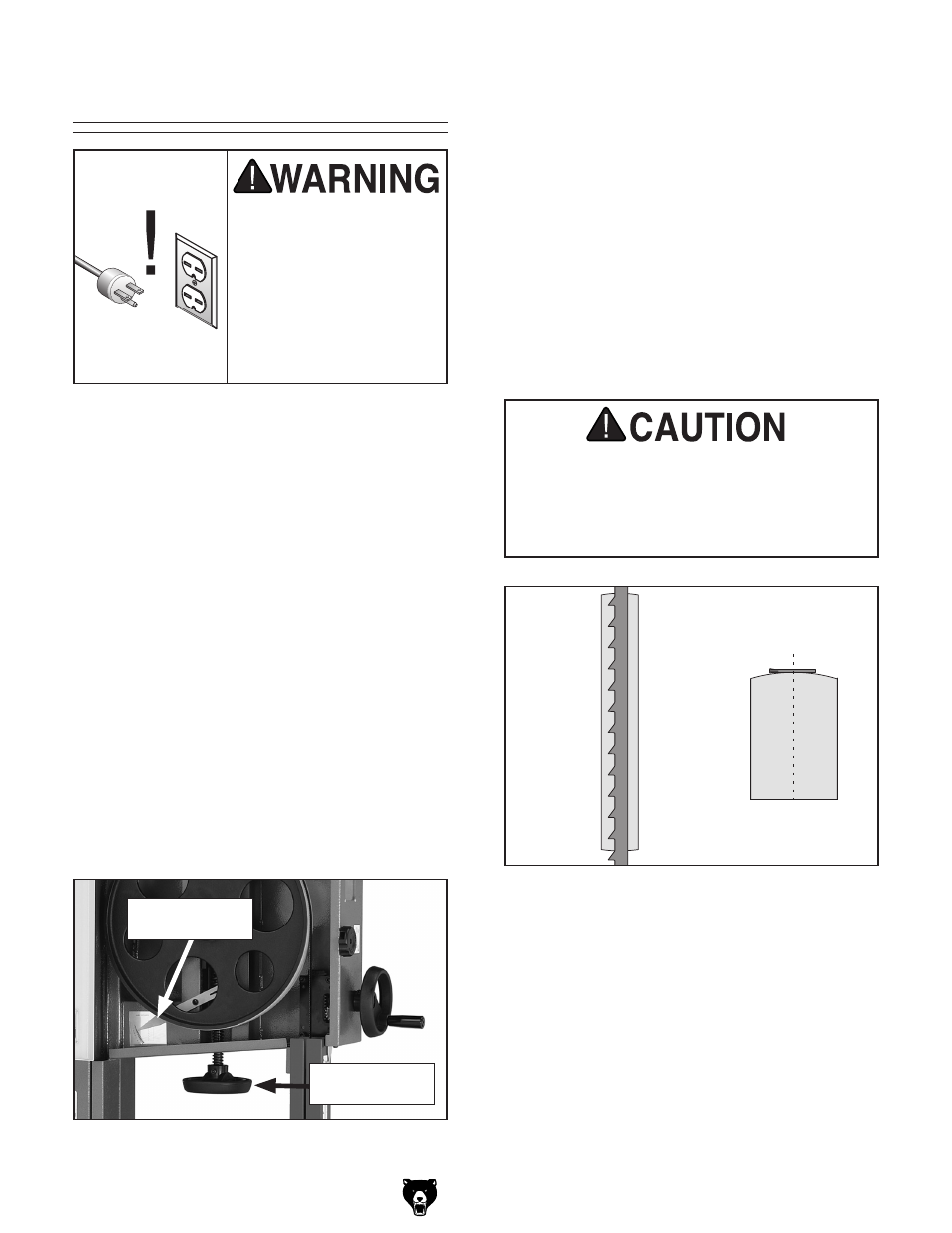

Figure 16. Blade tensioning controls.
Blade Centered
on Peak of Crown
Blade
Centered
on Wheel
CENTER TRACKING
Figure 17. Center tracking profiles.
The cast iron spokes may have sharp edges
and the blade teeth may extend beyond the
edge of the wheel, creating a laceration
hazard. Be careful when turning the wheels
by hand.
4. Spin the upper wheel by hand at least three
times and watch how the blade rides on the
crown of the wheel. Refer to
Figure 17 for an
illustration of this concept.
— If the blade rides in the center of the
upper wheel and is centered on the peak
of the wheel crown, then the bandsaw is
already tracked properly and no further
adjustments are needed at this time.
— If the blade does not ride in the center
of the upper wheel and is not centered
on the peak of the wheel crown, then
continue with the following steps.
Blade Tension
Handwheel
Blade Tension
Scale
