Wiring diagram, Iring, Iagram – Gravely 985117 User Manual
Page 35
35

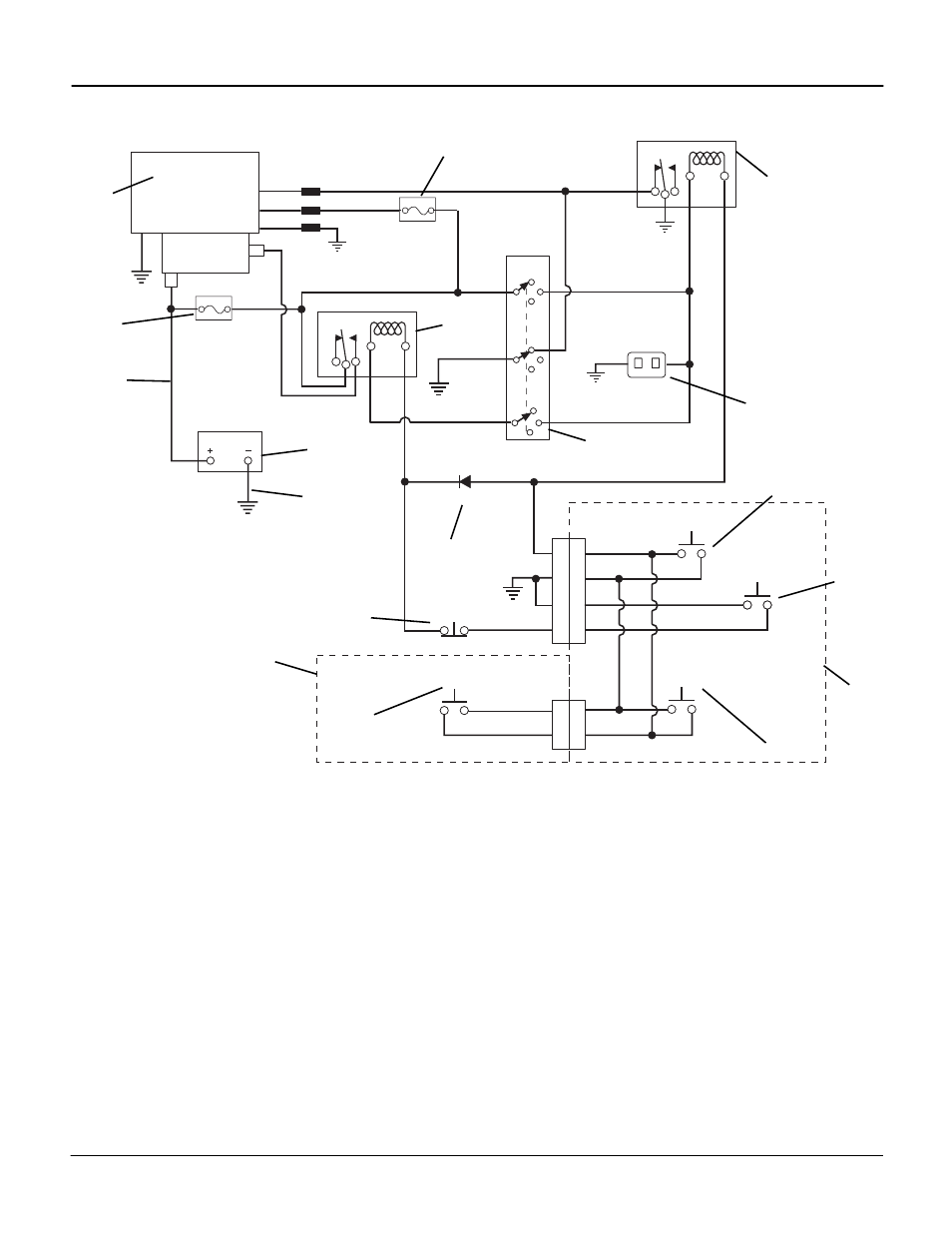

W
IRING
D
IAGRAM
Model 985119
Item
Part No.
Qty.
Description
1
08269400
1
Engine, Kohler Command Pro CS12ST (119)
2
00524700
1
Fuse 15 AMP
3
00580600
1
Fuse 20 AMP
4
03602300
1
Key Switch
5
038256
1
Hour Meter
6
02743300
1
Start Cable 22"
7
01554800
1
Battery
8
09222700
1
Cable, Negative Battery 35"
9
03081700
1
Molded Diode Plug- Clear 1 AMP
10
040216
2
Relay
11
08591000
1
Harness, Handlebar
12
046823
3
Switch
13
08594200
1
Harness, Steering Brake
14
051919
1
Switch, Interlock Closed (Forward/Reverse)
15
051918
1
Switch, Interlock Open (PTO)
BLACK
KILL RELAY
KEY
SWITCH
BLACK
A
B
M
S1
G
RED
B R OW N
WHITE/BLACK
ENGINE
BLA
CK
PURPLE
STARTER
S2
30
86
85
87
87a
HOUR
METER
+
-
RED
BLACK
CHARGING
FUSE
BLACK
A
B
30
86
85
87
87a
BATTERY
BLA
CK
RED
B R OW N / W H I T E
RED
A
B
RED /
WHITE
RED / WHITE
RED
BLACK / WHITE
DIODE
RED/YELLOW
1
2
2
1
2
LEFT PRESENCE
CONTROL SWITCH
1
RIGHT PRESENCE
CONTROL SWITCH
FWD/REV INTERLOCK
SWITCH
1
2
3
4
1
2
3
4
2
1
2
1
BLACK
STEERING BRAKE PRESENCE
CONTROL SWITCH
1
2
1
2
YELLOW/RED
BLACK
BLACK
RED/YELLOW
RED/YELLOW
BLA
CK
YELLOW/RED
BR
O
WN/YELLO
W
PTO SWITCH
HARNESS
FUSE
START RELAY
BLACK
1
2
4
5
6
7
8
9
10
11
12
12
13
12
14
15
PH0351
10
3
