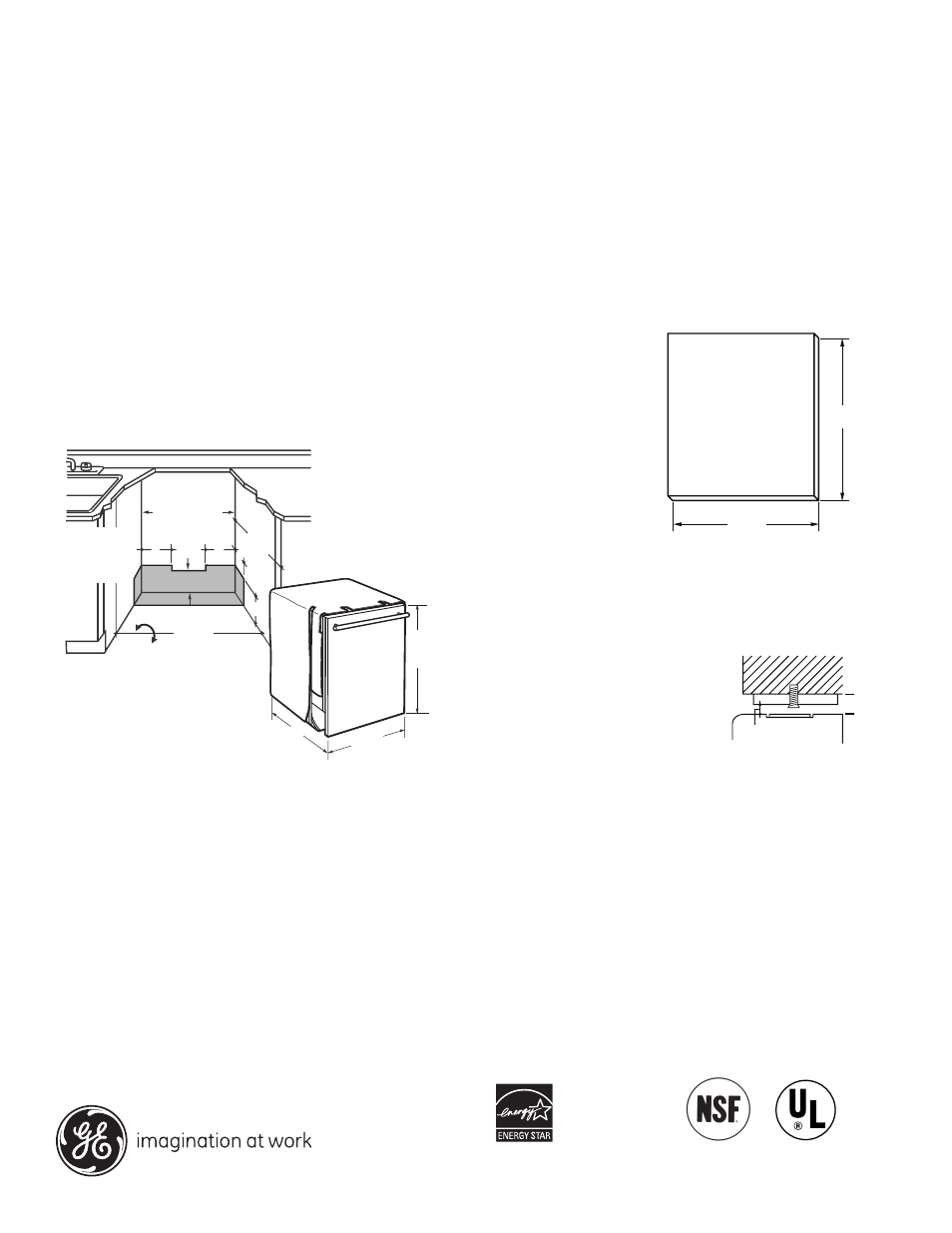

Dimensions and Specifications (in inches)

• The dishwasher must be installed so that the drain hose

is no more than 10 feet in length for proper drainage.

• Water and power supply should enter in the

shaded area.

• Electrical and water connections are at the right front

of the dishwasher. The hot water line should extend

forward 30" to 40" from the rear wall. The electrical

must extend forward at least 24" to reach the junction

box.

• To prevent siphoning, an air gap must be used when

the waste tee or disposer connection is less than 18"

above the floor.

Cabinets

Square

and

Plumb

Floor MUST

be Even with

Room Floor

This Wall Area

must be Free of

Pipes or wires

34-1/2" Min.

Underside of

Countertop

to Floor

24"

Min.

24" Min.

5"

5"

4"

4"

6"

24"

*24"

34"

Adjustable

to 35"

Electrical Requirements

The dishwasher must be supplied with 120V, 60Hz, and

connected to an individual properly grounded branch

circuit protected by a 15- or 20-amp circuit breaker or

time-delay fuse.

Custom Panel for Model ZBD6900PII

These dishwashers require a field installed 3/4” thick custom

panel and custom handle. An installation template is

packed with these models and may be obtained in advance.

Order Pub. No. 31-30569-1. Complete panel installation

instructions are included on the template.
CUSTOM PANEL SIZE REQUIREMENTS
HEIGHT
Panel height must

be between

30-1/16" and 30-1/4".

• If the panel height is

more than 30-1/4” it

will prevent the door

from swinging open.

• If the panel height is

less than 30-1/16” it

will not cover the

dishwasher door

frame.

• The top of the custom panel must be flush with the top

of the door. The 1/2” minimum gap between the top

of the door and the bottom of the countertop must be

maintained.

WIDTH
Panel width must be 23-3/4".

• If the panel width is less than

23-3/4” it will not cover the

dishwasher frame.

IMPORTANT: To ensure

optimum door balance

performance, the custom panel must not weigh

more than 14 lbs.

Accessories for custom panel model ZBD6900

ZPR0700S door panel provides a professional-style handle

on a stainless steel door panel.

ZTB700 stainless steel tubular handle for installation onto a

custom panel.
Before installing refer to installation instructions for

details. Pub. No. 31-30586

Minimum 1/2" gap

for Clearance

Countertop

1/2" min.

23-3/4"

30-1/16" Min.

30-1/4" Max.

Minimum 1/2" gap

for Clearance

Countertop

1/2" min.

23-3/4"

30-1/16" Min.

30-1/4" Max.

ZBD6920PSS/ZBD6910PBB/ZBD6900PII

GE Monogram

®

Fully Integrated Built-In Dishwashers

For answers to your Monogram,

®

GE Profile

or

GE

®

appliance questions, visit our website at

ge.com or call GE Answer Center

®

service,

800.626.2000.

Specification Created 8/08

150051

As an EnErgy StAr

®

partner, gE has determined

that this product meets the

EnErgy StAr guidelines

for energy efficiency.

Listed by

Underwriters

Laboratories

* Dishwasher models

ZBD6900 and ZBD8900

require a 3/4" thick

custom panel and will be

24-3/4" deep.
