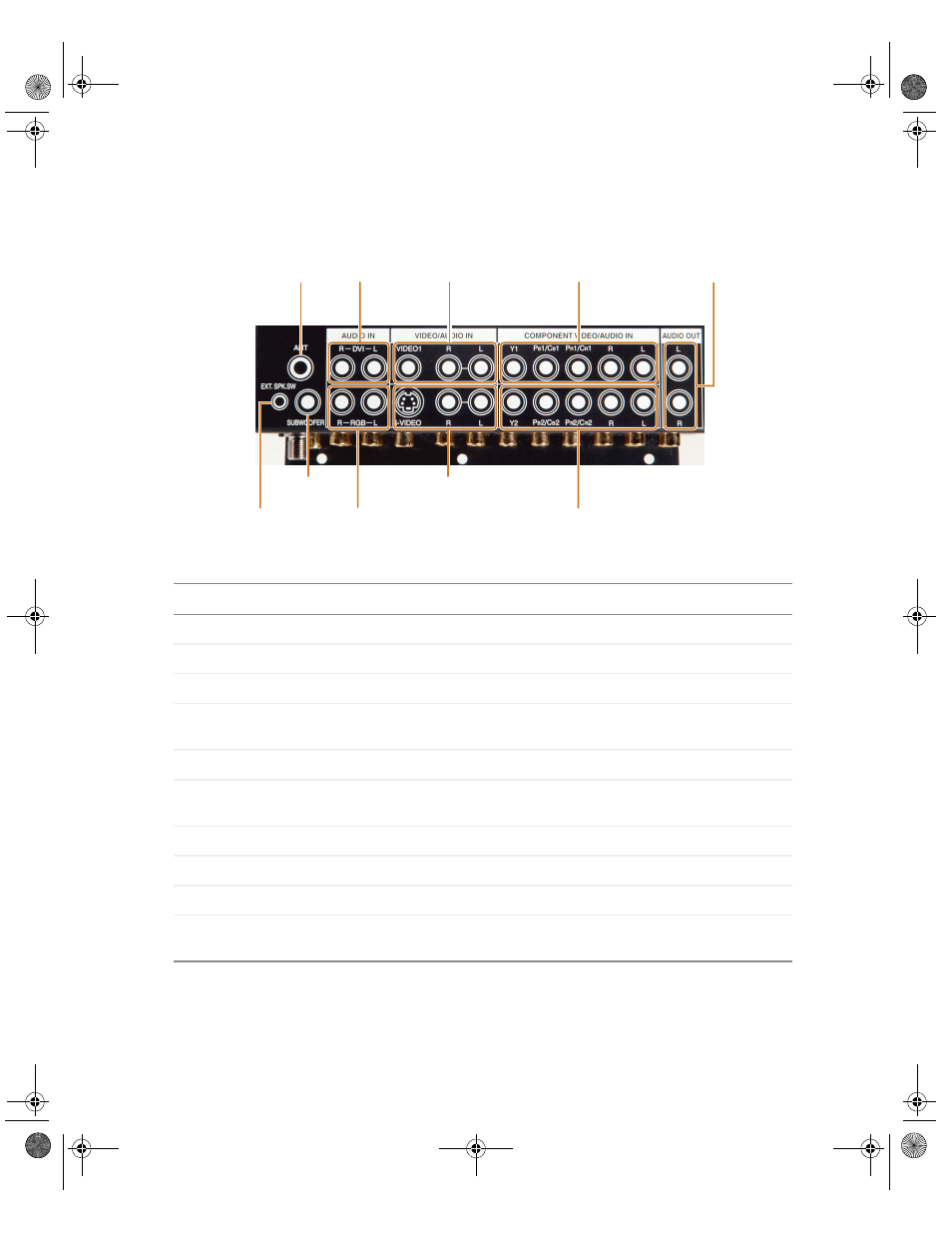

Back panel connections

www.gateway.com

Audio and video connections

Connector

Description

Antenna

Connects to a VHF/UHF antenna.

DVI Audio In

Connects to the audio on a DVI device.

Video 1/Audio In

Connects to a composite audio/video device, such as a VCR.

Component Video 1/
Audio In

Connects to a component audio/video device, such as a component video
DVD player.

Audio Out

Connects to an audio/video receiver or to external speakers.

External Speaker
Switch

Connects to the speaker switch jack on switchable external speakers or
an external receiver or amplifier.

Subwoofer

Connects to an external subwoofer.

RGB Audio In

Connects to the audio on an RGB device.

S-Video/Audio In

Connects to an S-Video device, such as a satellite dish receiver.

Component Video 2/
Audio In

Connects to a component video device, such as a HDTV set-top box.

Antenna

DVI

Audio In

Video 1/
Audio In

Component Video 1/

Audio In

Audio Out

External Speaker

Switch

Subwoofer

RGB

Audio In

S-Video/

Audio In

Component Video 2/

Audio In
