GenTran OVATION ATS2001D - Manual (Page 34)

34

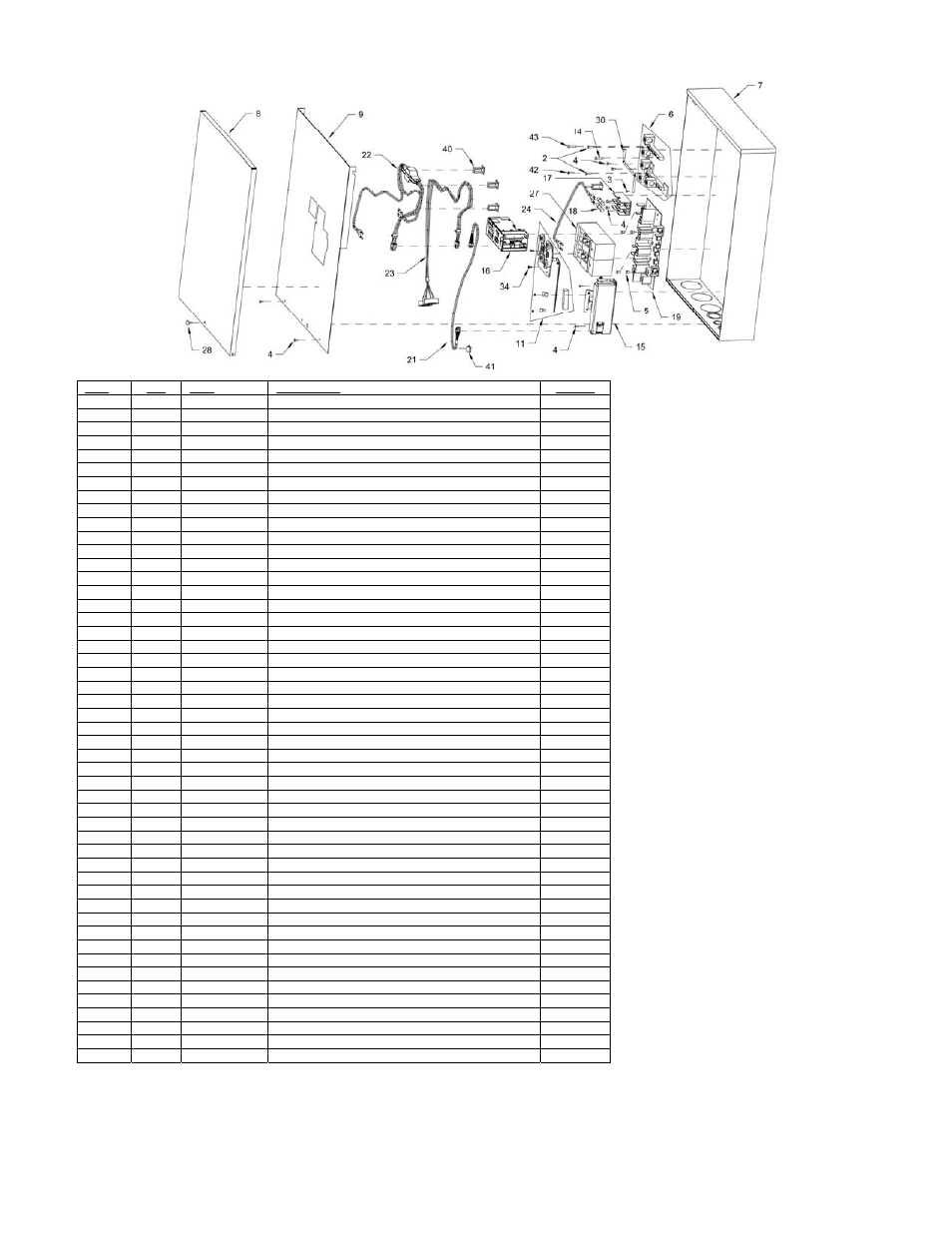

Model ATS2002R, -22
ITEM QTY PART DESCRIPTION SOURCE
1 4 17728 Corner pad, polystyrene, 5.75x5.75x6.87, not shown A
2 2 29880 Screw, 10-32x.5, RHPS, steel, zinc C
3 1 32390 Screw, 8-32x.75, Hex, thread cutting, steel, zinc C
4 8 32403 Screw, 8-32x.3/8, Hex, Type F, steel, zinc C
5 4 32438 Screw, 10-32x.375, Type 23, Hex, steel, zinc C
6 1 50512 Neutral/ground block assembly B
7 1 50401 Enclosure, 200A ATS, 18x24, AL, NEMA 3R B
8 1 50402 Cover, 200A ATS, NEMA 3R B
9 1 50404 Cover, dead front, 200A ATS B
10 1 50479 Label, carton, ATS Ovation™, 2002R, not shown A
10-22 1 50479-22 Label, carton, ATS Ovation™, 2002R-22, not shown A
11 1 50482 Actuator/Interlock Assm 200/200 B
12 1 50485 Label, circuit marking, not shown A
13 1 50486 ATS Ovation™ Specification Sheet, not shown D
14 1 50487 Screw, 8-32x1 PFL TAPT ST ZP C
15 1 50488 Motor Assembly B
16 1 50489* Control Module Assembly B
17 1 50497 Fuse Block, 20A, 600VAC, 10K AIC B
17-22 1 50506 Fuse Block, 20A, 600VAC, 100K AIC B
18 2 50498 Fuse 5A, 600VAC, 10K AIC B
18-22 2 50507 Fuse 5A, 600VAC, 100K AIC B
19 1 50500 Buss Assembly, 12 circuit, plastic, CU/TN B
20 1 50502 Box, 21 3/8x7x26 7/8 PF-FOL, not shown A
21 1 50582 Cable, motor to controller, 28" , 22AWG B
22 1 50585* Cable, AC voltage sense, 18AWG w/xformer B
23 1 50590 Cable, current sense, 18AWG B
24 1 50595 Cable, fuse block, 18AWG B
25 1 51037 Warranty reply card, not shown A
26 1 51080 Options Order Sheet, not shown A
27 2 51101 Circuit breaker 200A, 2 pole, 120/240V, 10K AIC B
27-22 1 511011 Circuit breaker 200A, 2 pole, 120/240V, 22K AIC B
28 1 51121 Screw, Thumb grip, SS, 8-32x1.125" B
29 1 51147 Label, GENTRAN, silver/green (340) , not shown A
30 1 510950 Pigtail, neutral bond, 4AWG, green, 6" B
31 1 72008 Label, "Gen, Util", ATS2002R, not shown A
32 1 72009 Label, SN, not shown A
33 1 72010 Label, SN, Control Module, not shown A
34 2 72914 Screw, 8-32x.5, PTH, SS, SMS C
35 1 500502 DO NOT RETURN card, not shown A
36 1 510491 Label, 2" diam, clear, not shown A
37 1 530001 Manual: Installation, Operating and Maintenance, not shown D
38 1 3700091-05 Label, product, ATS Ovation™, 2002R, 10K AIC, not shown A
38-22 1 3700091-11 Label, product, ATS Ovation™, 2002R, 22K AIC, not shown A
39 2 S7956W Label, date code, .4375x.75, white, not shown A
40 4 50509 Cable clip, Nylon 66, natural, large B
41 1 50511 Cable clip, Nylon 66, natural, small B
42 1 41029 Rivet, AL, .1875 x .376-.500, large flange C
43 1 27408 Screw, 8-32x.1.25, RHMS, steel, zinc C
44 1 50508 Screwdriver, mini, .100 straight blade, GT logo, not shown A
TYPE:
A = Non-Field Replaceable Item (Call Factory)
B = Field Replaceable Item (Call Factory to order parts)
C = Available at local hardware store or home center D = Download from www.-gen-tran.com website
*
NOTE: When electrical parts marked with * are replaced, an ATS calibration procedure must be performed. Contact Gen/Tran for System
Calibration Instructions, PN 530005.
