Single helm hydraulic layout, Port fitting starboard fitting – Garmin AUTOPILOT TR-1 User Manual
Page 5
4
5
Pump &
Motor
��
��
��
��
*Shadow Drive
1) Mount
Horizontally
and as
level
as possible
2)
May be
located in the Port or Starboard Hydraulic Lines
3) Use a
length of hose between
helm and Shadow Drive Valve
4)
DO NOT
install Valve directly to helm!
5) A Tee fitting
MUST NOT
be installed between helm and Shadow Drive Valve
!
Before starting the hydraulic installation, please
verify the type of hydraulic steering in the boat.
If it does not match the hydraulic layouts in this
manual, call TR-1 technical support for specific
installation procedures.

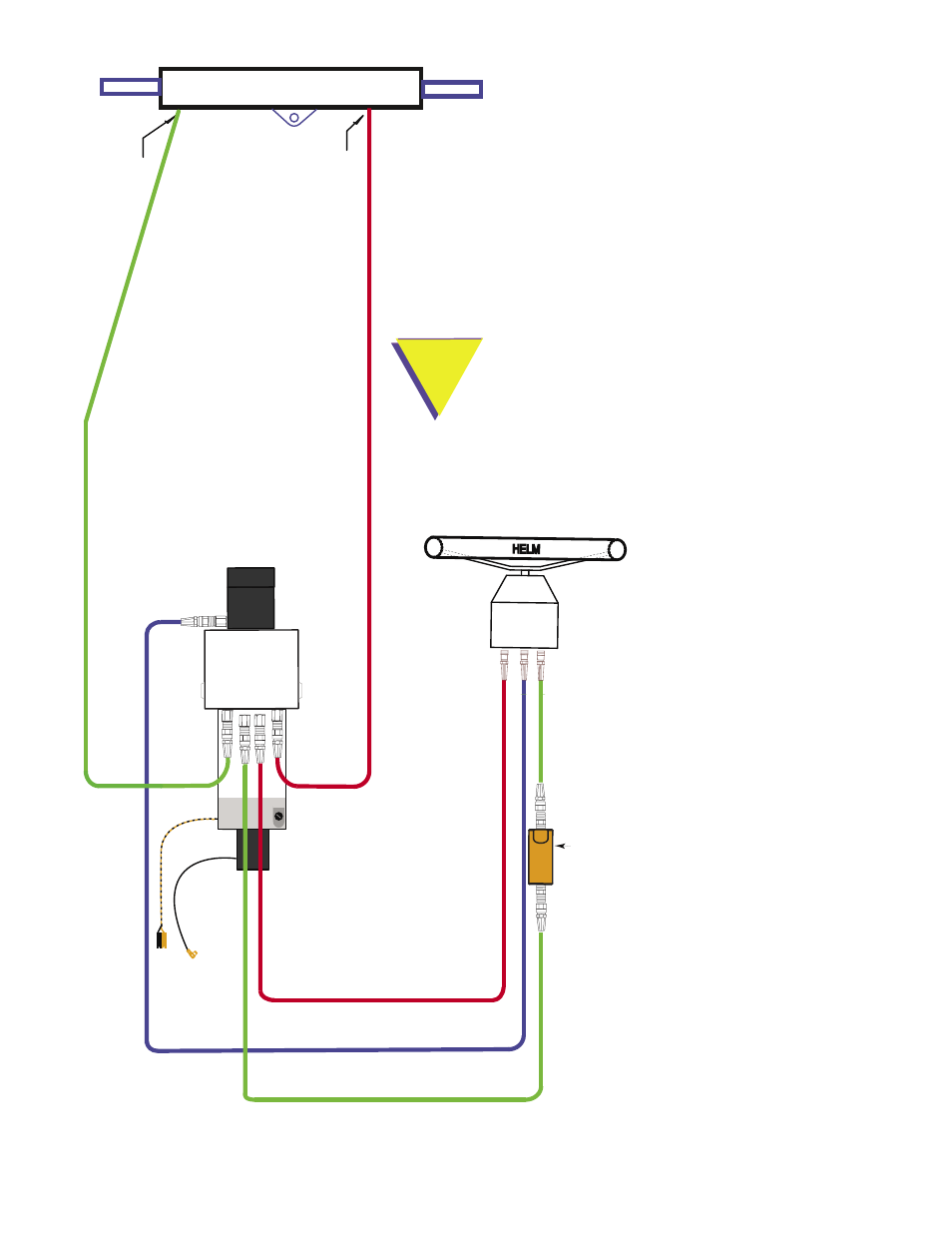

Single Helm Hydraulic Layout
Return line
*Shadow Drive
HELM
P= Port
R= Return
S= Starboard
P
R
S
BALANCED CYLINDER
Port Fitting
Starboard Fitting
