Grindmaster 87710E - Manual (Page 2)

High-Speed Brewing
Twin 10 Gallon Automatic Coffee Urn
Grindmaster® Coffee Grinders and Brewers • PrecisionBrew™ Brewing Systems • Espressimo® Espresso Machines
Crathco® Hot Beverage Dispensers • Crathco® Cold and Frozen Beverage Dispensers • AMW Coffee and Tea Systems
Tel (502) 425-4776 • Fax (502) 425-4664 • 1-800-695-4500 (USA & Canada only)
P.O. Box 35020 • Louisville, KY 40232 • USA
www.grindmaster.com • email: [email protected]
© Grindmaster Corporation, 1995
PRINTED IN USA 0807 Form # AM-207-05
Brew Basket Selection Chart
Brews 3 Gal. 6 Gal. 10 Gal.
1/2 Batch
on 6 Gal.
1/2 Batch
on 10 Gal.
Part No. BB3 BB6 BB810 BB6-3 BB810-6
NOTE: All SS Permanent Filter Brew Basket with SS woven wire cloth bottom
is available. Filter paper is available from our stock. See price list.
Model No. 87710
Coffee Capacity (Each Liner) 10 Gal.
Actual Brew Time Per Liner 14 Mins.
Brews Per Hour
8
Gallons Per Hour 80
No. of 5 Oz. Cups Per Hour 2050
Heater Size - KW 15 KW
Heater Voltage 240V 208V
Amperes Drawn - 1 Ph 63 72
Amperes Drawn - 3 Ph 36 42
* For 480V-3Ph supply - divide amperes for 20V-3Ph by 2.
NOTE - Must be connected to 140
° -160 ° hot water supply.
Design Specification
Twin 10 gallon fully automatic coffee urn capable of simultane-
ously brewing on both sides with two spray arms and with
adjustable bypass valves capable of bypassing up to 50% of the
amount sprayed over. Each spray arm shall be controlled by its
own timer - all controls located on right hand and left hand ends
and operate on 120 volts AC. Dual wall fiberglass insulated, all
AISI 304, 18-8 stainless steel construction. To include: positive
low water cutoff system, automatic refill, automatic air agitation
with plug-in type top coffee gage fittings, by-pass on spray arm,
variable sprayover rate, two all stainless steel brew baskets for
paper filters. Two year parts and one year labor warranty included.
Urn to be hooked to 140°-160° hot water. Requires connection
to separate 120 volt supply. 6’ cord and plug supplied.
U.L. listed, NSF approved.
Include following options: Select as desired.
Option 47
Low Temp No Brew
Option 57 Jug Filler Hose
One Extra S.S. Brew Basket For FIlter Paper
Option __
Any other option as selected
Double Service (Self Service) Faucet Options
Opt. DS-1 2 Coffee, 1 Water, No Gages Rear
Opt. DS-2 2 Coffee, 1 Water, With Gages Rear
Opt. DS-__ Other Double Service Options As Selected.
AMW Model 88710E • 87710S with options specified above or
alternate model of (other manufacturer) including all features
and options specified above.
Electric Services Available
208V
Single Phase - 2 Wire
208V Three Phase - 3 Wire
240V Single Phase - 2 Wire
240V Three Phase - 3 Wire
480V Three Phase - 3 Wire - Extra Cost
Requires connection to 120 VAC, 3-wire 15 amp circuit.
6 foot cord and plug supplied.
Hot Water
Inlet 3/8” FPT
4 1/4”
8 1/4”
4 1/2”
5 1/2” 5 1/2”
8 3/8” 8 3/8”
35”
46”
3 1/2”
17 3/4”
23” Elec.
Input 2 1/4”

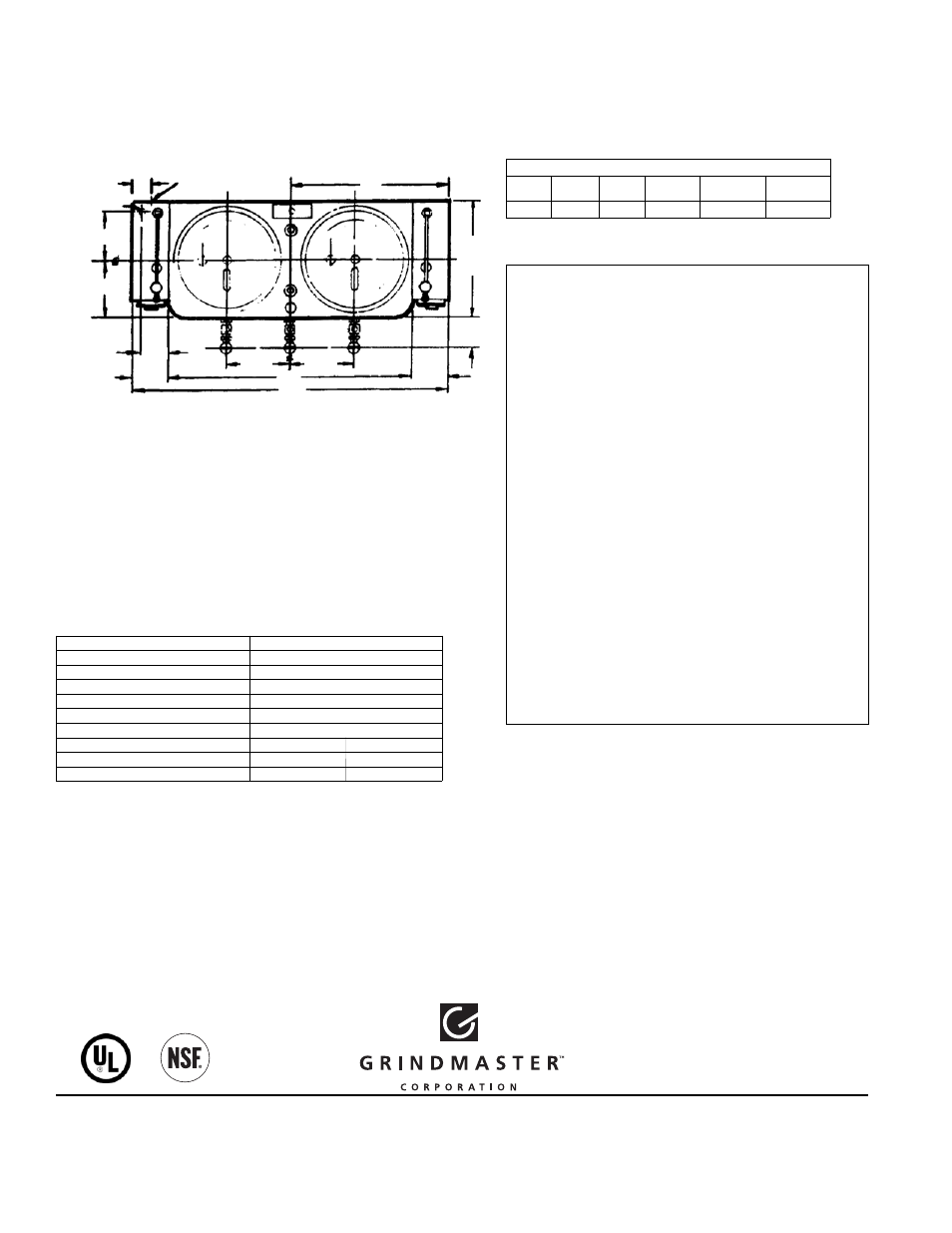

ROUGHING-IN DATA
Faucet Clearance - 9 1/2”
Consult Factory for Current Roughing-in Drawing
