Grandstream Networks, Inc. GXV3140 Skype Configuration Guide Page 11 of 18
Firmware version: 1.0.7.3 Updated : 11/2010
To initiate a conversation, enter the number or the Skype username to call and then press the “Call” soft
key. To search for the country code for the corresponding country, simply select the “Search code” button.
WARNING:
No emergency calls are allowed as Skype is not a replacement for a standard telephone.

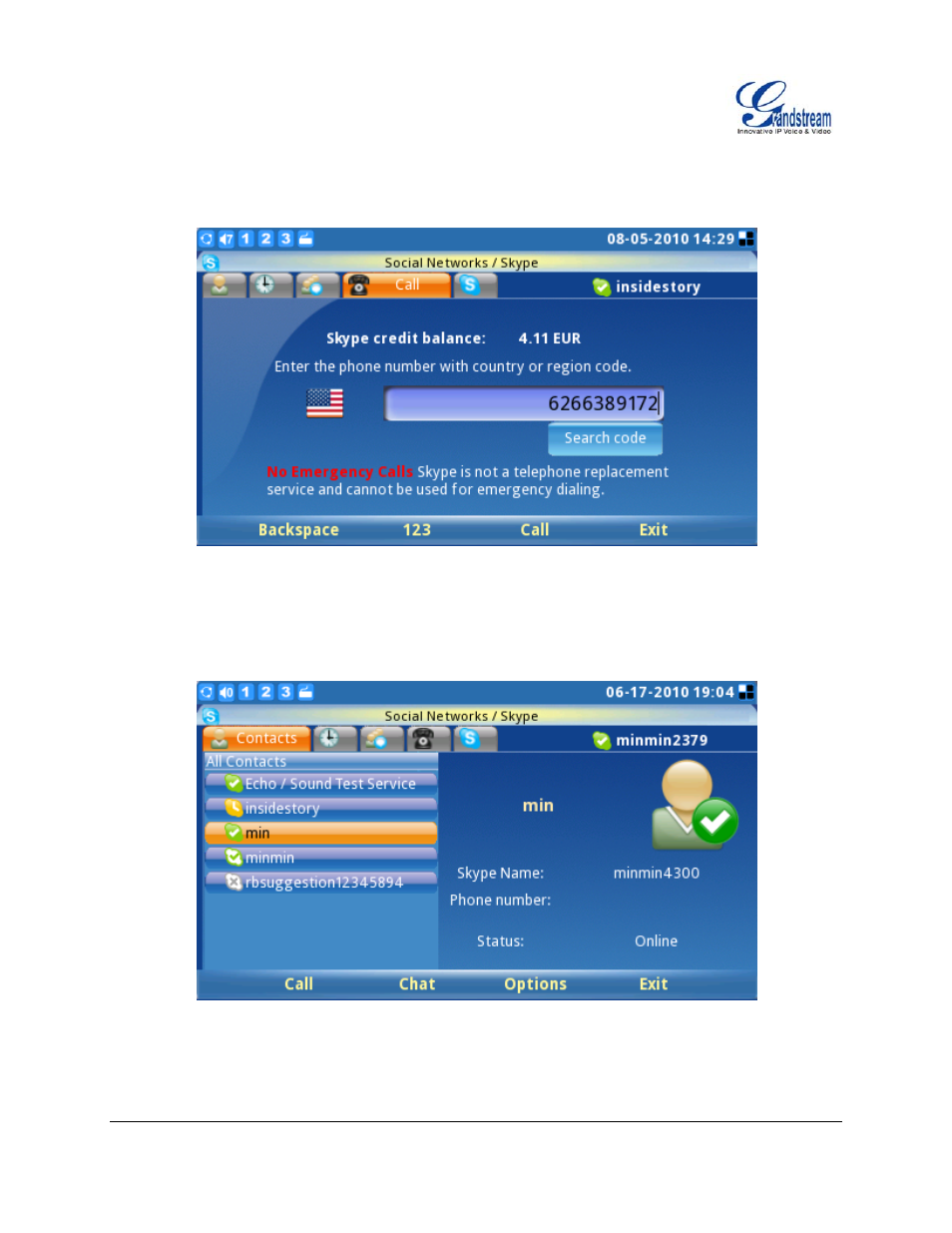

Figure 18: Skype Out Call Screen
Chats
To chat with a Skype contact, go to the tab “Contact” and select the contact person. (See Figure 19)
Press “Chat” to initiate the chatting window.
Figure 19: Skype Contact List
Once the chat window is opened, the user will see Figure 20 below. Press “Chat” to initiate the
conversation. Press the “Options” soft key for additional chat settings.
