Installing the Appliance
Note: the appliance can be installed in a base
cabinet with a minimum width of 900 mm. The
recess in the countertop will be slightly wider than
the inner width of the base cabinet.
Do not install the appliance above a drawer.

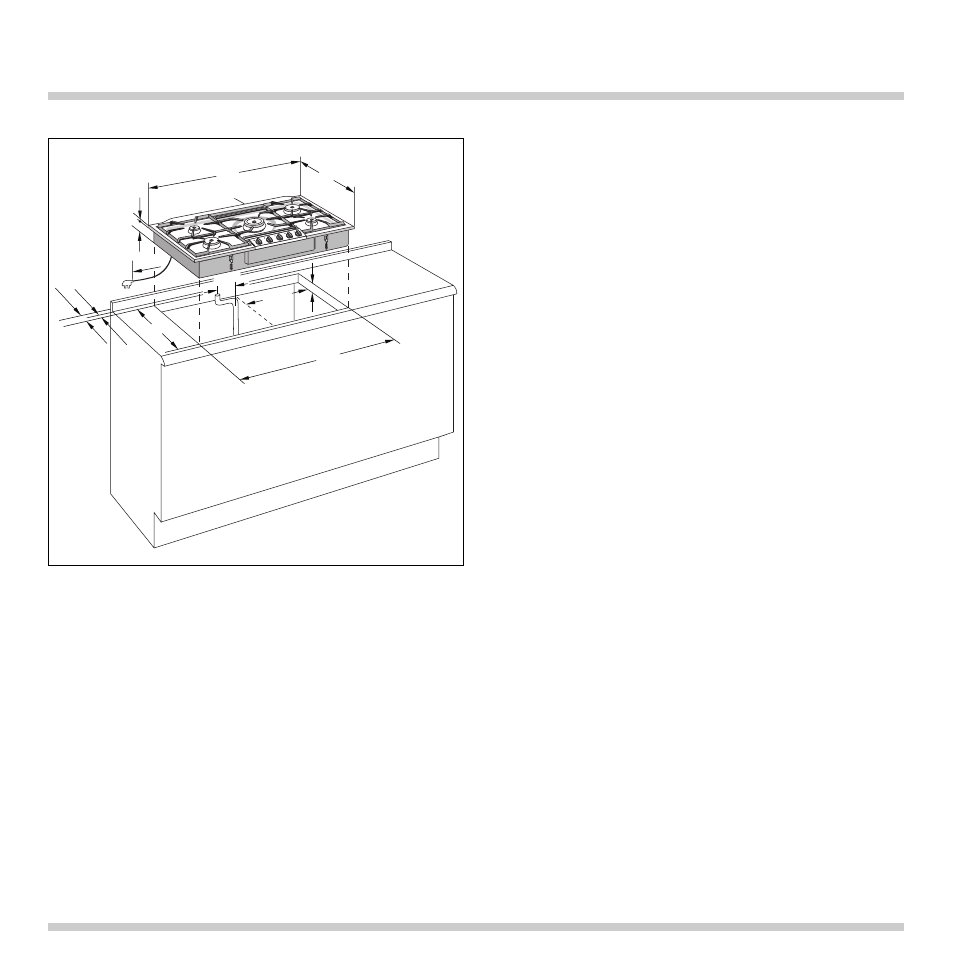

• Produce the recess for the cooktop in your
countertop. Proceed as indicated on the
installation sketch.
Note: the angle between the cut surface and the
worktop must be 90°.
• Turn the clamping screws to the side. Insert the
hob with the control panel on the front into the cut-
out.
• Align the cooktop and turn the clamping screws
under the countertop. Tighten the clamping
screws evenly.
• Connect the appliance to the gas supply.
Note: if a flexible gas connection is being used,
you can connect the appliance before installing it
into the worktop.
• Check the installation for gas leaks.
• Connect the appliance to the electricity. Test it for
correct functioning.
• There might be an air pocket in the gas supply line
if the appliance switches off and the indicator
lights flash. Turn all control knobs off and switch
on again (see trouble-shooting guide, chapter 10).
26 5080008618ind01 en 07.04 EB
1,4 m
130
8,5*
914
510
min. 35
min.
30
885
490
min. 50
176,5
*16,5 an den
Luftansaugschlitzen
442,5
*16,5 at ventilation openings
