the three tone control switch groups ‘treble
tilt’, ‘bass tilt’ and ‘bass roll-off’ on the rear
panel of the amplifier. The factory settings
for these controls are ‘All Off’ to give a flat
anechoic response. See Table 1 for sug-
gested tone control settings. Figure 5 shows
the effect of the controls on the anechoic
response. Always start adjustment by setting
all switches to ‘OFF’ position. Then set only
one switch to the ’ON’ position to select the
response curve needed. If more than one
switch is set to ‘ON’ (within one switch group)
the attenuation value is not accurate.

Vertical / horizontal mounting

The speakers are normally delivered set
up for vertical mounting. Horizontal mount-
ing should be avoided due to the increased
likelihood of early reflections that degrade
the the direct sound. If horizontal mounting
is needed the DCW plate may be rotated so
that the Genelec logo remains horizontal by
removing the four corner screws of the DCW
and carefully lifting and turning the DCW.

Console top mounting

If the 1031A’s are used for near field monitor-
ing, avoid mounting them on the meter bridge
of the console. Instead position the speakers
slightly behind the console by using floor
stands or wall mounts. This prevents the
first reflections from the console surface from
coloring the sound.

Overload indicators

The speaker is provided with two status
LED's marked 'OVL' and 'ON'. The green
ON-LED when lit indicates that the speaker
is ready for use. The red OVL-LED indicates
that the amplifier is overloaded or the driver
protection circuit is activated. In both cases
reduce the signal level so that the LED stops
blinking. If the OVL-LED stays on constantly it
indicates that the amplifier thermal protection
is activated. Let the amplifier cool down and
check that the ventilation at the rear side of
the speaker is not blocked. There should be
a clearance of more than 4" (10cm) between
speaker rear and any solid surface.

Maintenance

No user serviceable parts are to be found
within the amplifier unit. Any maintenance
or repair of the 1031A unit should only be
undertaken by qualified service personnel.

Safety considerations

Although the 1031A has been designed
in accordance with international safety
standards, to ensure safe operation and to
maintain the instrument under safe operating
conditions, the following warnings and cau-
tions must be observed:

1. Servicing and adjustment must only

be performed by qualified service
personnel. The amplifier’s rear panel must
not be opened.

2. Do not use this product with an

unearthed mains cable as this may lead to
personal injury.

3. To prevent fire or electric shock, do not

expose the unit to water or moisture. Do
not place any objects filled with liquid,
such as vases on the speaker or near it.

4. Note that the amplifier is not

completely disconnected from the AC
mains service unless the mains power
cord is removed from the amplifier or the
mains outlet.

WARNING!
This equipment is capable of producing sound
pressure levels in excess of 85 dB, which
may cause permanent hearing damage.

Accessories

Order code

Protective grille

1031-409

Wall mount

1031-404-V/H*

Floor stand

1031-405-V/H*

*State the desired speaker orientation
V=vertical or H=horizontal when ordering
these accessories.

Guarantee

This product is supplied with one year guar-
antee against manufacturing faults or defects
that might alter the performance of the 1031A
unit. Refer to supplier for full sales and guar-
antee terms.

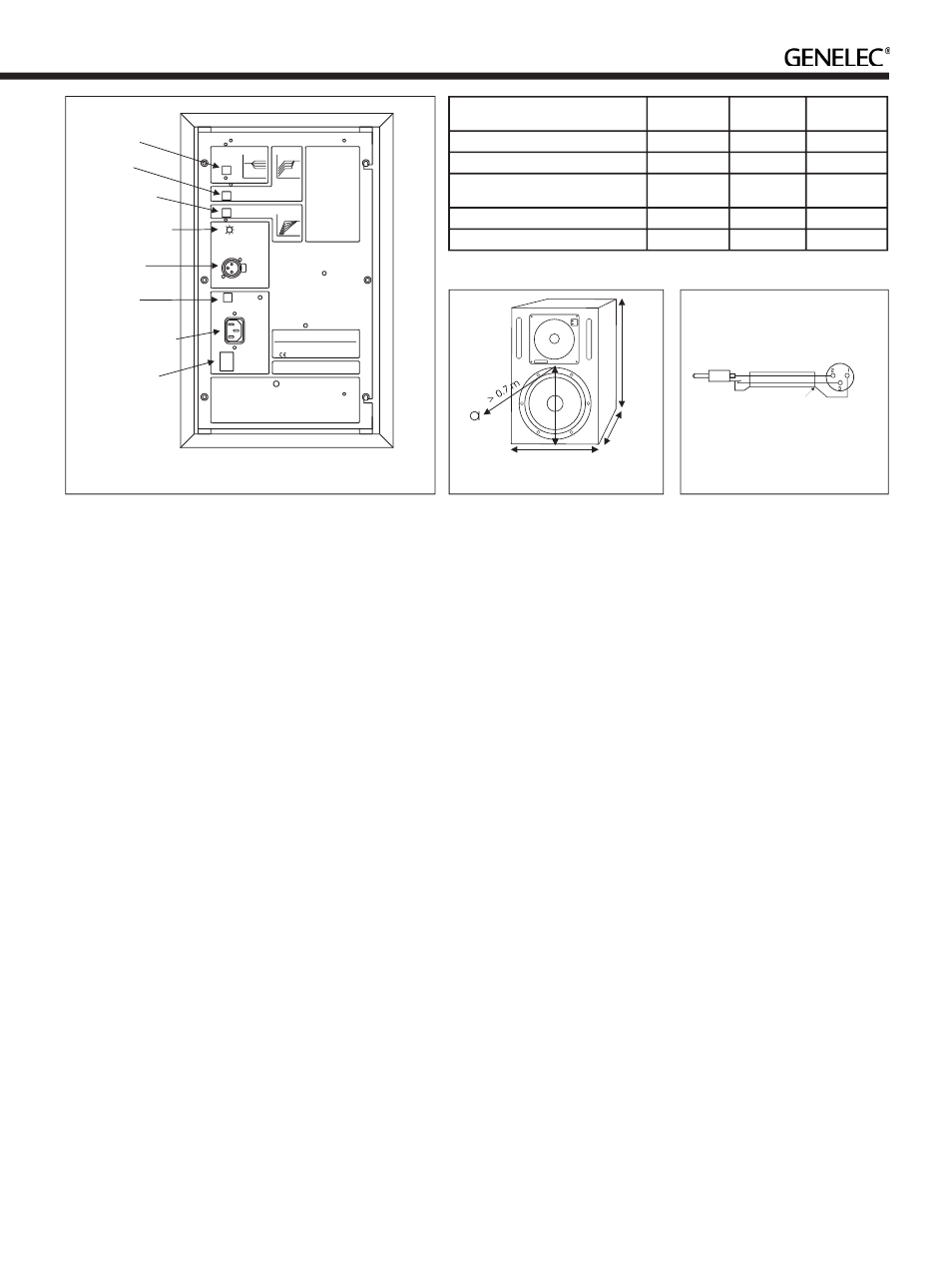

Figure 1. Amplifier panel layout of the 1031A

Figure 2. Location of the acoustic axis

Speaker Mounting

Position

Treble tilt

Bass tilt

Bass roll-off

Flat anechoic response

None

None

None

Free standing in a damped room

None

-2 dB

None

Free standing in a

reverberant room

None

-4 dB

-2 dB

Near field or console bridge

None

-4 dB

-4 dB

In a corner

None

-4 dB

-4 dB

Table 1. Suggested tone control settings in some typical situations

Figure 3. RCA to XLR cable

Cable

Screen

RCA

(Source)

XLR

(Speaker)
