- 21 - Hardware Installation Process
English

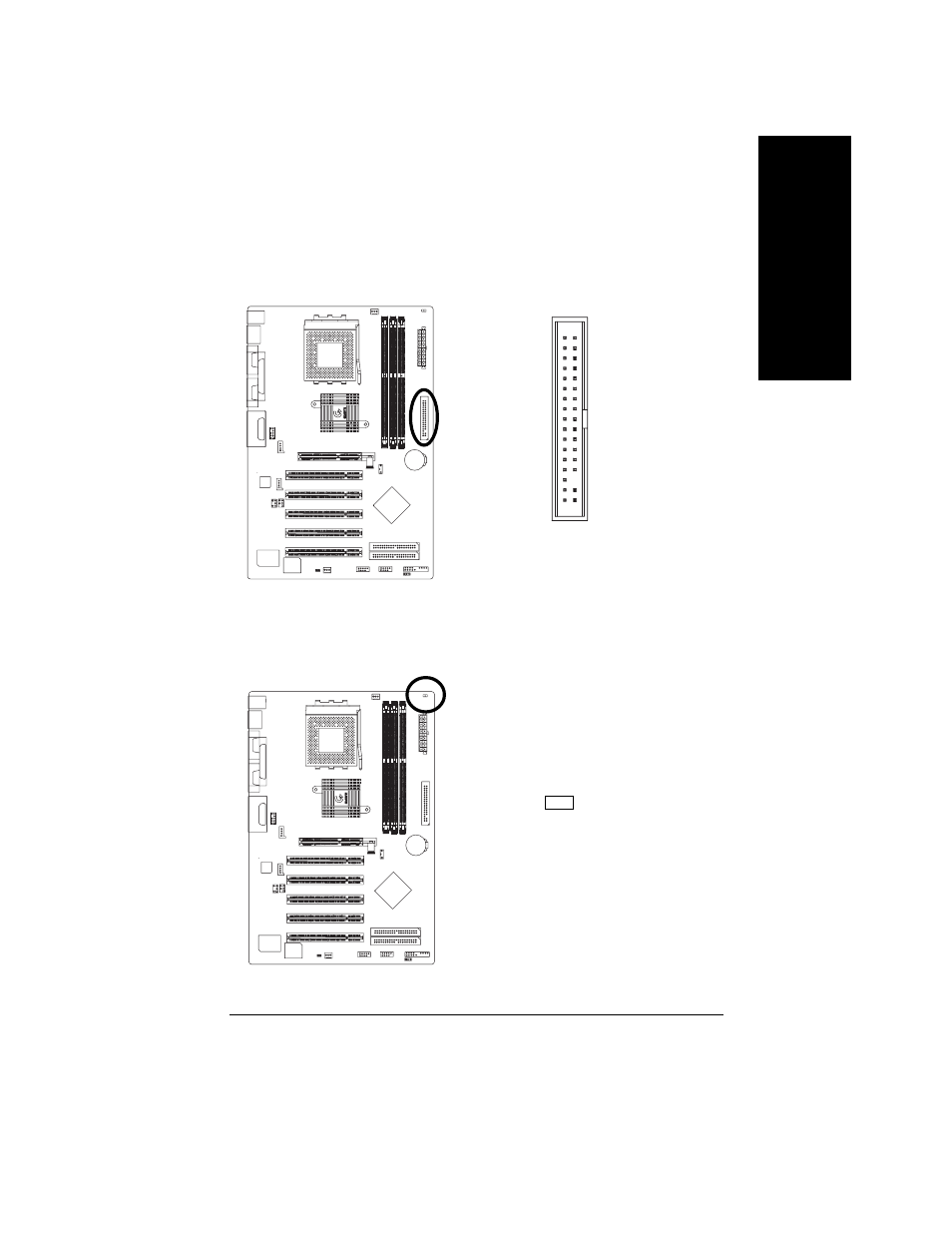

5) FDD (Floppy Connector)
Please connect the floppy drive ribbon cables to FDD. It supports 360K,720K,1.2M,1.44M and
2.88Mbytes floppy disk types. The red stripe of the ribbon cable must be the same side with the
Pin1.
1
34
2
33
6) RAM_LED
Do not remove memory modules while DIMM LED is on. It might cause short or other
unexpected damages due to the 2.5V stand by voltage. Remove memory modules only when AC
Power cord is disconnected.
+ -
