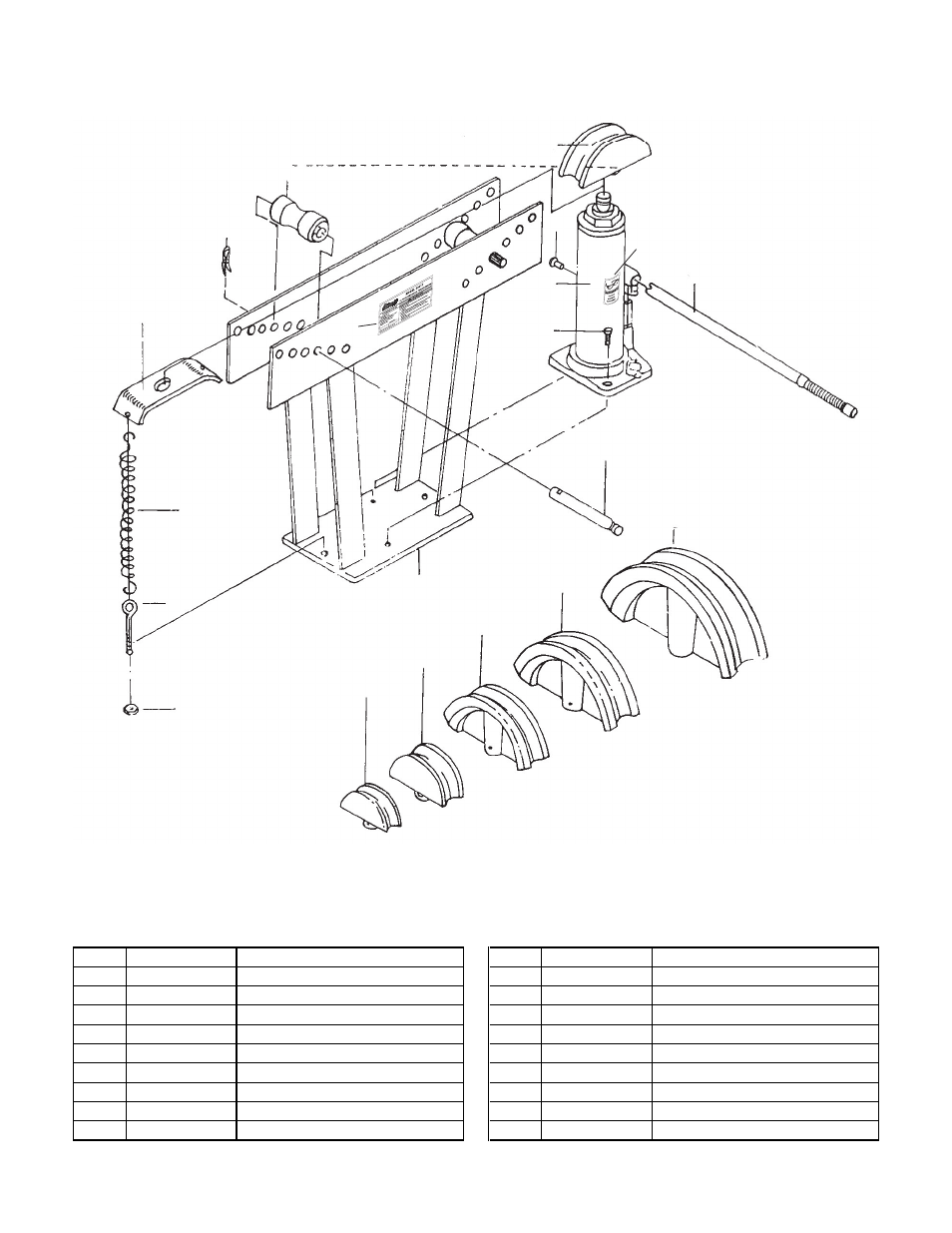

G9017 Parts Breakdown
�
�
��
��
��
�
�
��
��
��
�
�
�
��
��
�
�
��
��
��
REF
PART #
DESCRIPTION
REF
PART #
DESCRIPTION
1
P9017001
FRAME
11
P9017011
1-1/2" BENDING DIE
2
P9017002
12 TON BOTTLE JACK
12
P9017012
2" BENDING DIE
3
PSB146M
CAP SCREW M10-1.5 X 15
13
P9017013
PUMP HANDLE BAR
4
P9017004
ROLLER SHAFT
14
P9017014
SPRING PLATE
5
P9017005
ROLLER
15
P9017015
EXTENS. SPRING 35 X 4.5 X 21.5
6
P9017006
HITCH PIN
16
P9017016
EYE BOLT
7
P9017007
1/2" BENDING DIE
17
PN03M
HEX NUT M8-1.25
8
P9017008
3/4" BENDING DIE
18
P9017018
MACHINE ID LABEL
9
P9017009
1" BENDING DIE
19
PLABEL 11
LABEL (SAFETY GLASSES)
10
P9017010
1-1/4" BENDING DIE
20
P9017019
FILL PLUG
G9017 Parts List
