Replacement Parts
Instructions for ordering toddler bed parts:
Complete form below. Your toddler bed model number
MUST be included on the form to ensure proper
replacement parts. Your model number can be found
on the label on the side tube of your toddler bed.
Payment must accompany your order.
Parts List:
Side tube...................................
Crossbar...................................
Long leg....................................
Short leg...................................
Foot...........................................
Hardware..................................
Mattress support.......................
Headboard................................
Footboard.................................
Left bed rail (as seen from
behind headboard)...............
Right bed rail (as seen from
behind headboard)...............
Price:*
$ 8.00 (each)
$ 5.00 (each)
$ 7.00 (each)
$ 5.00 (each)
$ 5.00 (set of 4)
$ 5.00
$10.00
$12.00
$12.00
$10.00
$10.00
* Prices subject to change without notice.

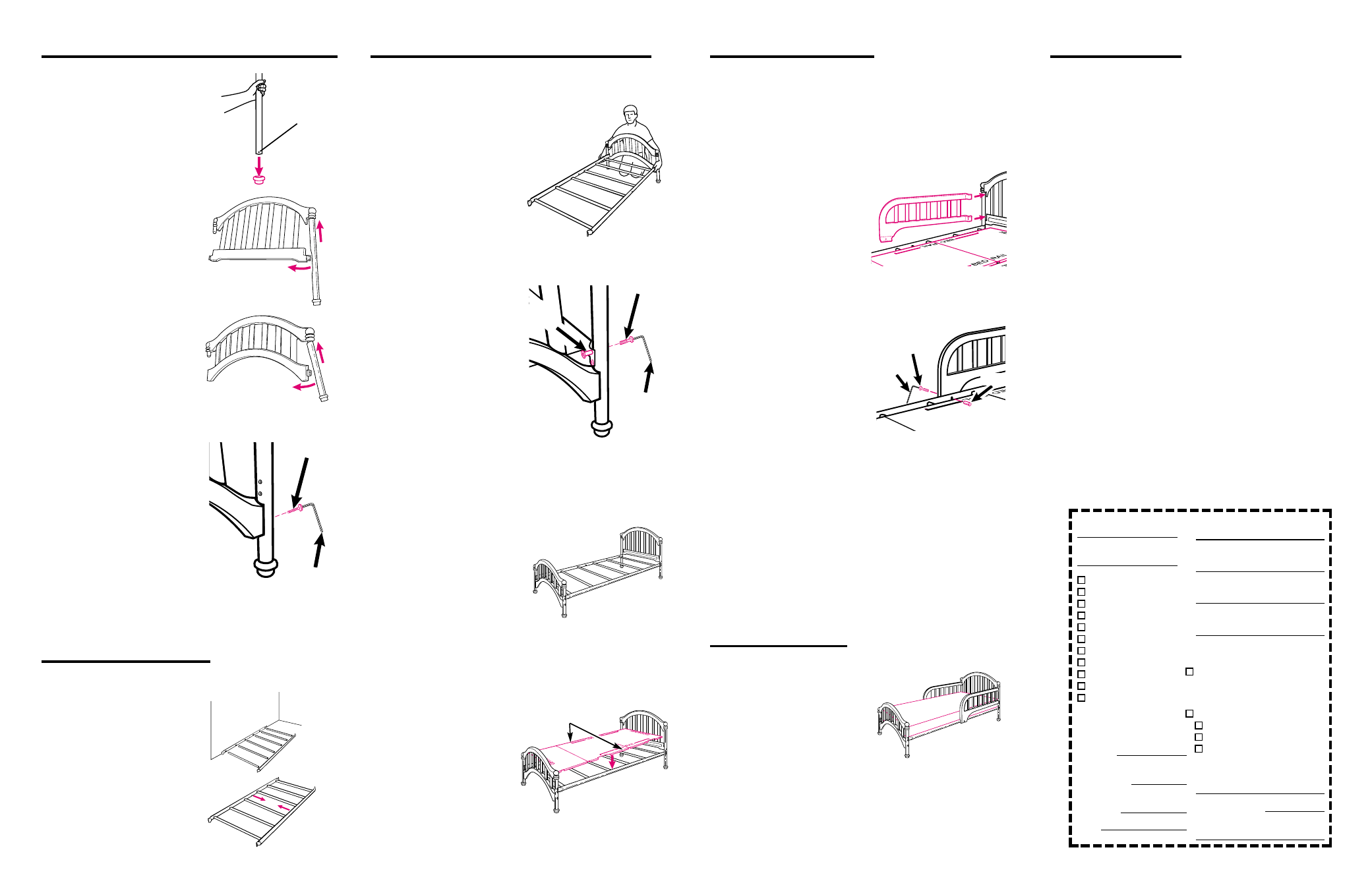

Step 1.
Legs have a small side hole near
one end. For each leg, push end
with side hole firmly down into
a plastic foot. Side hole must be
covered by foot. It may be
necessary to tap foot on a hard
surface to get it all the way on.
Step 2.
Assemble headboard and long
legs. Push open end of one long
leg onto plastic plug under “knob”
on one side of headboard.
Then push leg sideways so the
rectangular plug on lower side
of headboard goes into hole on
side of the leg.
Attach other long leg in the
same way to other side of the
headboard.
Assemble the footboard and
short legs the same way.
Step 3.
For footboard (shown at right),
insert a screw into the lowest
hole on each short leg and into
plastic footboard. For head-
board, insert screws into the
highest hole on each long leg.
Tighten screw securely with the
included hex wrench, but do
not over-tighten.
Repeat for other three legs.
CHECK that all four legs are
securely attached to the
head- and footboards by
pulling on the legs.
Side hole
7 8 5 6
602-4-00 602796
Finishing Assembly
Place a standard full-size crib
mattress—at least 27 1 /
4
inches
(69 cm) wide by 51 5 /
8
inches
(131 cm) long by 4 inches
(10 cm) thick—on the finished
toddler bed frame. Your toddler
bed is now ready to use.
REMINDER: Before each use,
inspect the toddler bed for
damaged hardware, loose joints,
missing parts, or sharp edges.
Step 1.
Begin by attaching the frame
to the footboard.
Stand the footboard at one
end of the metal frame. (It
does not matter which side of
footboard faces the frame.)
Holding the footboard upright,
grasp the two side tubes as
shown and lift carefully. Rest
the ends of the side tubes on
the footboard.
Step 2.
Insert two T-nuts through the
two holes in the side tubes
and into the leg holes as
shown. Place the bolts into
the holes on the outside of the
footboard tubes and into the
T-nuts.
Step 3.
With the Graco ® name on the
headboard facing away from
the bed frame, attach the side
tubes to the legs as in Step 2
above.
After the headboard and foot-
board have been attached to
the frame, FIRMLY TIGHTEN
all eight bolts into their T-nuts
with the hex wrench.
The toddler bed will look like
illustration.
Step 4.
Position mattress support
with printed side up as
shown. Fold edges down at
creases, and place on bed
so notches in edges fit over
the crossbars.
Attaching the Headboard and Footboard Attaching the Bed Rails
There are left and right bed rails.
When installed correctly, the
Graco ® name on each rail will be
on the outside of the bed.
Step 1.
With the Graco ® name facing
away from the bed frame, hold
one bed rail at an angle to the
bed frame as shown. Insert the
curved ends of the bed rail into
the slots at side of headboard.
(The curved ends will match
the shape of the metal leg.)
Step 2.
Move bed rail toward bed
frame until hole at bottom of
bed rail lines up with the hole
in the center of the side rail.
Put a T-nut into the hole on the
inside of the bed, and use the
hex wrench to screw in a bolt
from the outside.
Step 3.
Repeat on other side. Both
bed rails must be used.
REMINDER: Keep the hex
wrench in a location where
you will be able to find it if
you wish to disassemble
the bed.
T-nut
Bolt
Hex
wrench
Assembling the Headboard and Footboard
Bolt
Hex
wrench
T-nut
Fold edges
down
Screw
Hex
wrench
Return the form below with payment to:
GRACO CHILDREN’S PRODUCTS INC.
CUSTOMER SERVICE DEPARTMENT
P.O. BOX 100, MAIN STREET
ELVERSON, PA 19520
IF YOU NEED HELP
If you have any questions or if you need
any part not listed, please call toll-free:
1-800-345-4109
or visit our Internet website, www.gracobaby.com.
Assembling the Frame
Step 1.
Line up the side tubes and
crossbars on the floor as shown
at right. It may be helpful to
brace one side tube against
a wall or stationary object.
Holes in side tubes must face
each other.
Step 2.
Insert ends of the crossbars
into holes in the side tubes.
SHIP TO:
Name
Address
City, State, Zip
( )
Telephone
Check enclosed
(payable to Graco Children’s
Products Inc.)
Charge to credit card:
Visa
MasterCard
Discover
Account #:
Expiration date:
Signature:
Side tube
Crossbar
Long leg
Short leg
Foot
Hardware
Mattress support
Headboard
Footboard
Left bed rail
Right bed rail
Subtotal:
Shipping
& handling*: $5.00
6% sales tax
(PA only):
Total:
*$15.00 outside the continental U.S.
Model No.
(required)
Serial No.
(required)
