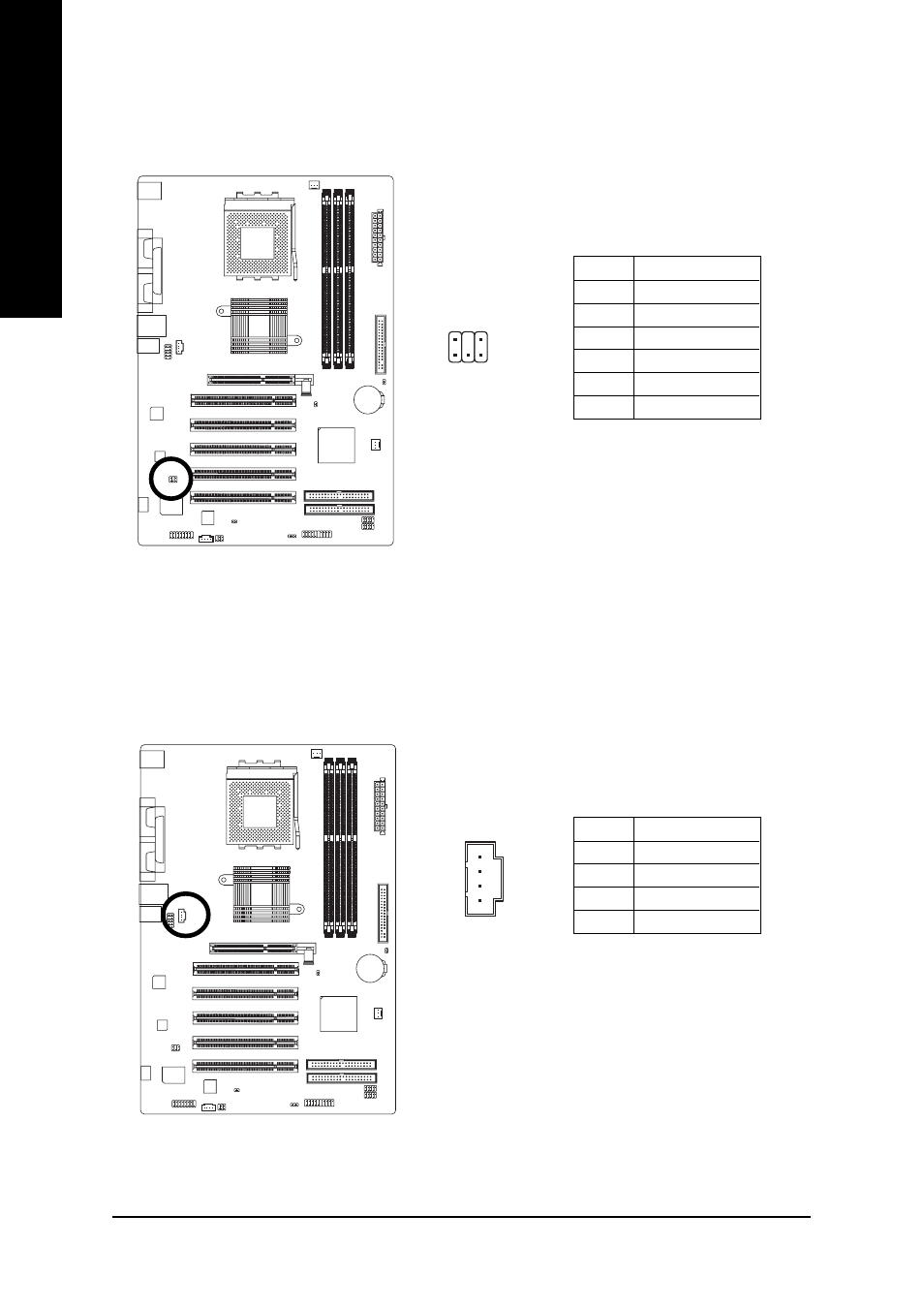

11) CD_IN (CD In Connector)
Connect CD-ROM or DVD-ROM audio out to the connector.
1
10) SUR_CEN (Surround Center Connector)
Please contact your nearest dealer for optional SUR_CEN cable.
1
6
2
5
Pin No.
Definition
1
SUR OUTL
2
SUR OUTR
3
GND
4
No Pin
5
CENTER_OUT
6
BASS_OUT
Pin No.
Definition
1
CD-L
2
GND
3
GND
4
CD-R
