-20- G1023Z Series Heavy-Duty 10'' Table Saw

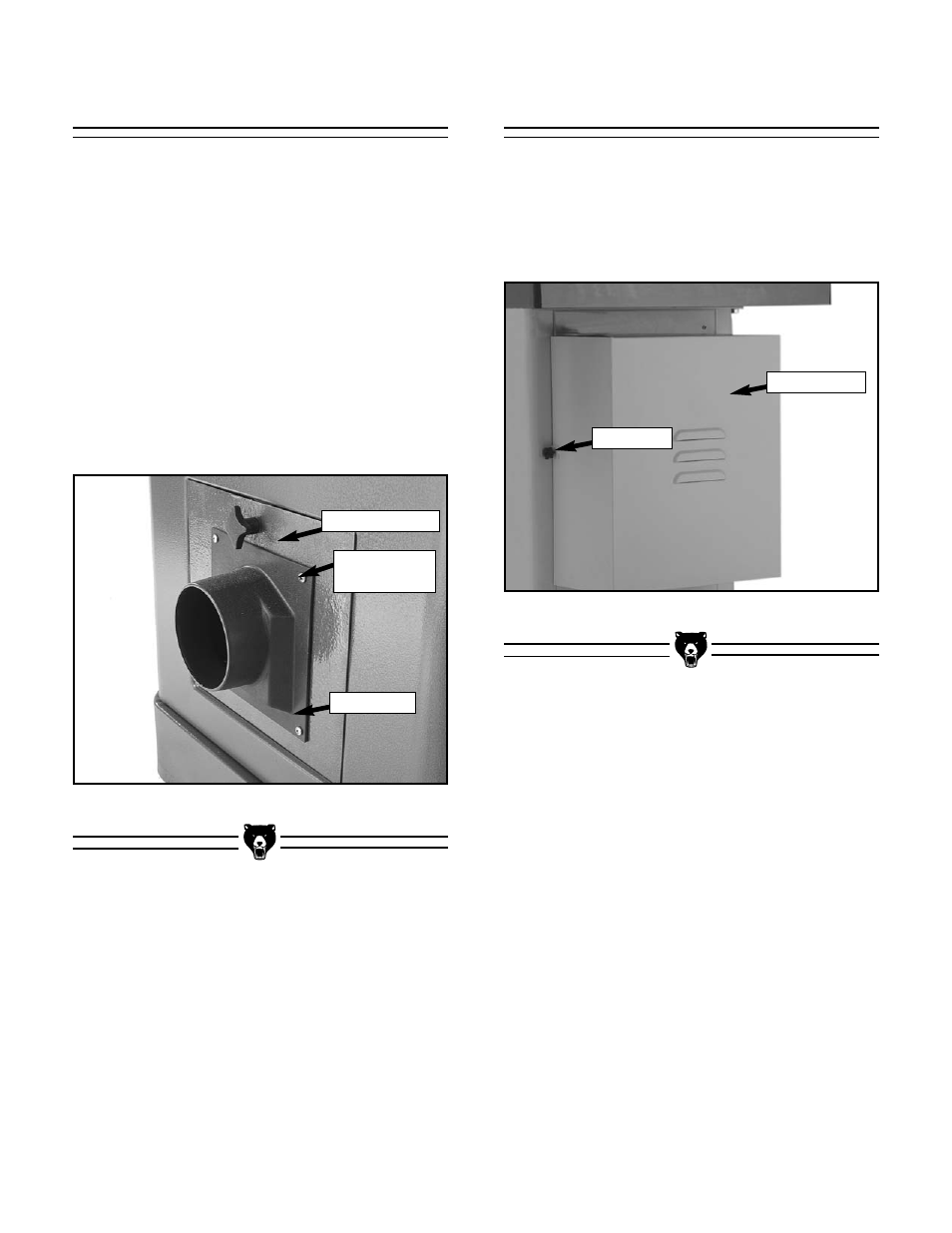

Figure 11. Installing dust hood.
Dust Hood
The Model G1023Z Series comes with a 4" dust
hood and a cleanout door.
To mount the dust hood and cleanout door:
1. Mount the cleanout door into the square hole
on the lower left side of the saw base.
2. Using (4) #8 x 3 ⁄
8
" Self Tapping Screws and
#8 Flat Washer, screw the dust hood to the
cleanout door.
3. Be sure to orient the dust hood so the 4"
flange is on the lower half of the dust hood
when installed as shown in
Figure 11 .
Motor Cover
The Model G1023Z Series motor cover is
designed to increase the efficiency of dust collec-
tion. The motor cover is packaged amd shipped
in a separate box. It is held shut by a
1 ⁄
4
"-20 x 1 ⁄
2
"
knob bolt as shown in Figure 12a.
Figure 12a. Installed motor cover.
Cleanout Door
Self Tapping
Screw
Dust Hood
Motor Cover
Knob Bolt
