Labtron 222 / V222B Wallmax Professional Aneroid Sphygmomanometer

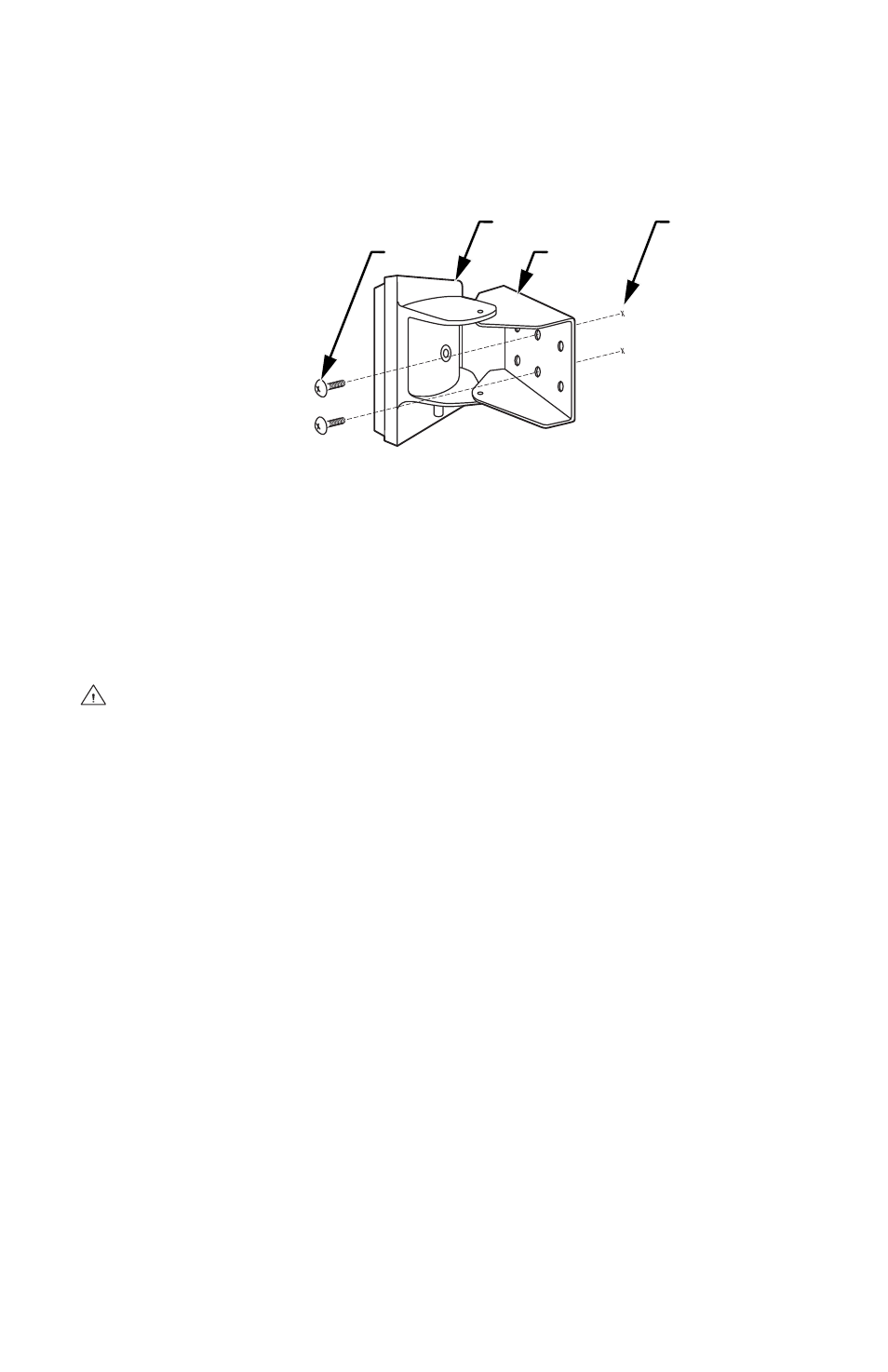

1. Mount the bracket using the two center holes. Swivel
the sphygmomanometer on its bracket to expose the
mounting holes, as shown below.
manometer
screw
mounting
position
on wall
bracket
Installation, 222 / V222B
Wallmax Professional
Aneroid Sphygmomanometer
2. Locate the wall stud where you will mount the bracket.
DANGER—risk of electrocution! Ensure that there is no
electrical wiring at the location where you will mount the
bracket.
3. Hold the bracket up to the wall at the desired mount-
ing height. Place the two center mounting holes directly
over the wall stud. Ensure that the manometer's face is
correctly oriented and that the bracket is level. Mark on
the wall in the center of both holes. Remove the bracket.
4. Drill a 3 /
16
" hole approximately 7 /
8
" deep at each of the
two marked locations.
5. Hold the bracket up to the wall at the mounting location,
ensuring that the manometer's face is correctly oriented
and that the bracket is level.
6. Install the two mounting screws through the bracket
center mounting holes into the wall stud. Do not over-
tighten.
