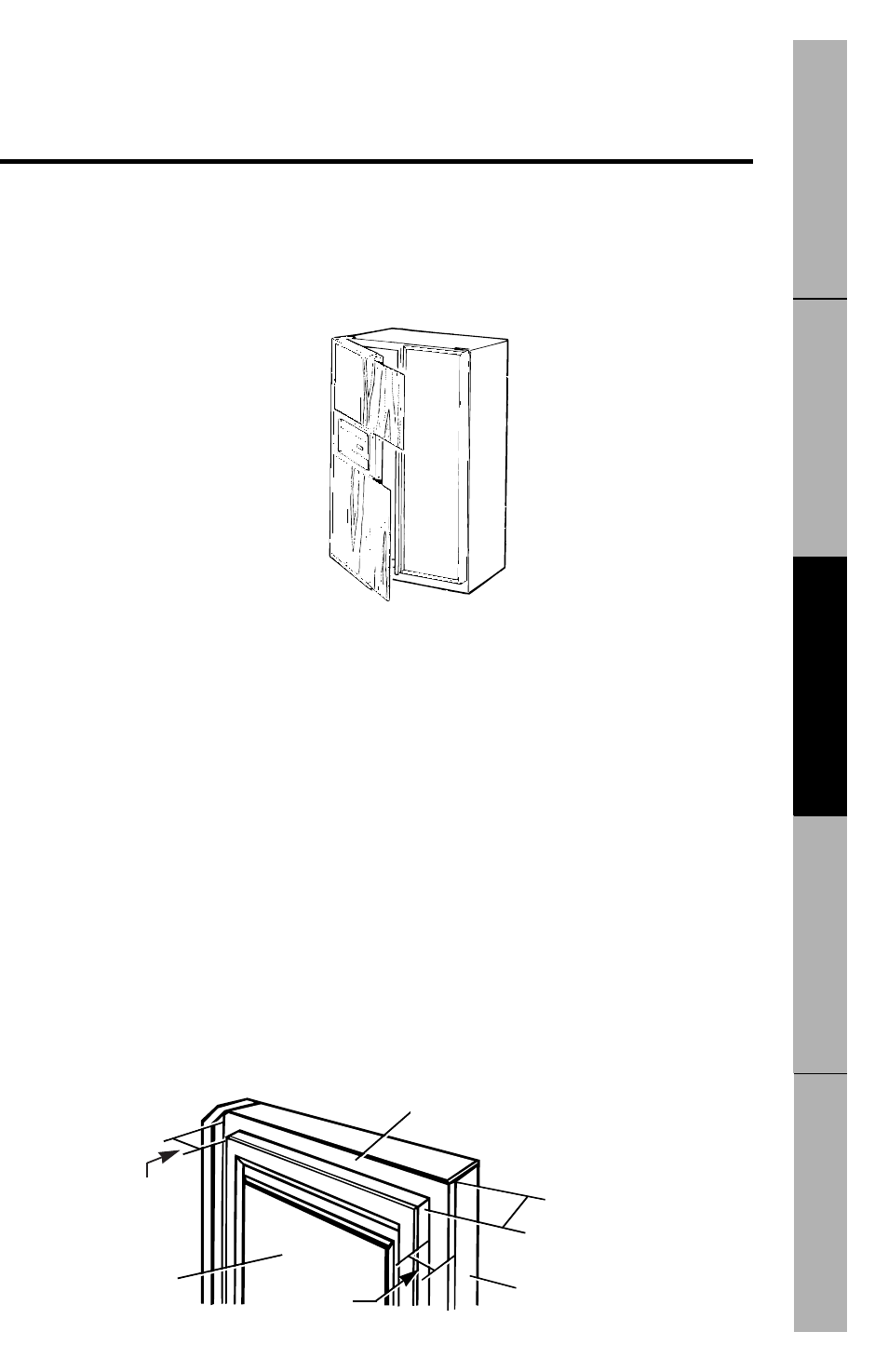

Insert the Panels
Carefully push the door panels into the slots. Make sure that the top freezer
panel is put in with the cut-out at the upper left hand corner. When inserting the
fresh food panel make sure the cut-out is at the upper right hand corner.
Replace the Door Handle and Trim
Reinstall the full length handle and top handle cap. Loosely screw the handle
onto the door. Place the cap on the top of the handle and loosely screw down the
cap. Lift the handle up and tighten the top screw on the handle. Then tighten
the handle cap screw so that the cap and handle fit flush. Tighten all the screws.
The fresh food panel is installed the same way.
3/4
″
(19 mm) or Raised Panel
A raised panel design screwed or glued to a 1/4
″
(6 mm) thick backing, or a
3/4
″
(19 mm) routed board can be used. The raised portion of the panel must
be fabricated to permit clearances of at least 2 ″ (51 mm) from the handle side
for fingertip clearance and 1 1
/
4
″
(32 mm) from the hinge side to avoid striking
adjacent cabinetry.
Weight limitations for custom panels:
Fresh Food 38 lb. (17 kg) max.
Freezer Door 20 lb. (9 kg) max.
2
″
(51 mm)
Clearance
Handle Side
1 1
/
4
″
(32 mm)
Clearance
Hinge Side
Appearance
Panel
Refrigerator
Door
1/4
″
(6 mm)
Thick Backing
3/4
″
(19 mm)
