Hardware Installation - 21 -

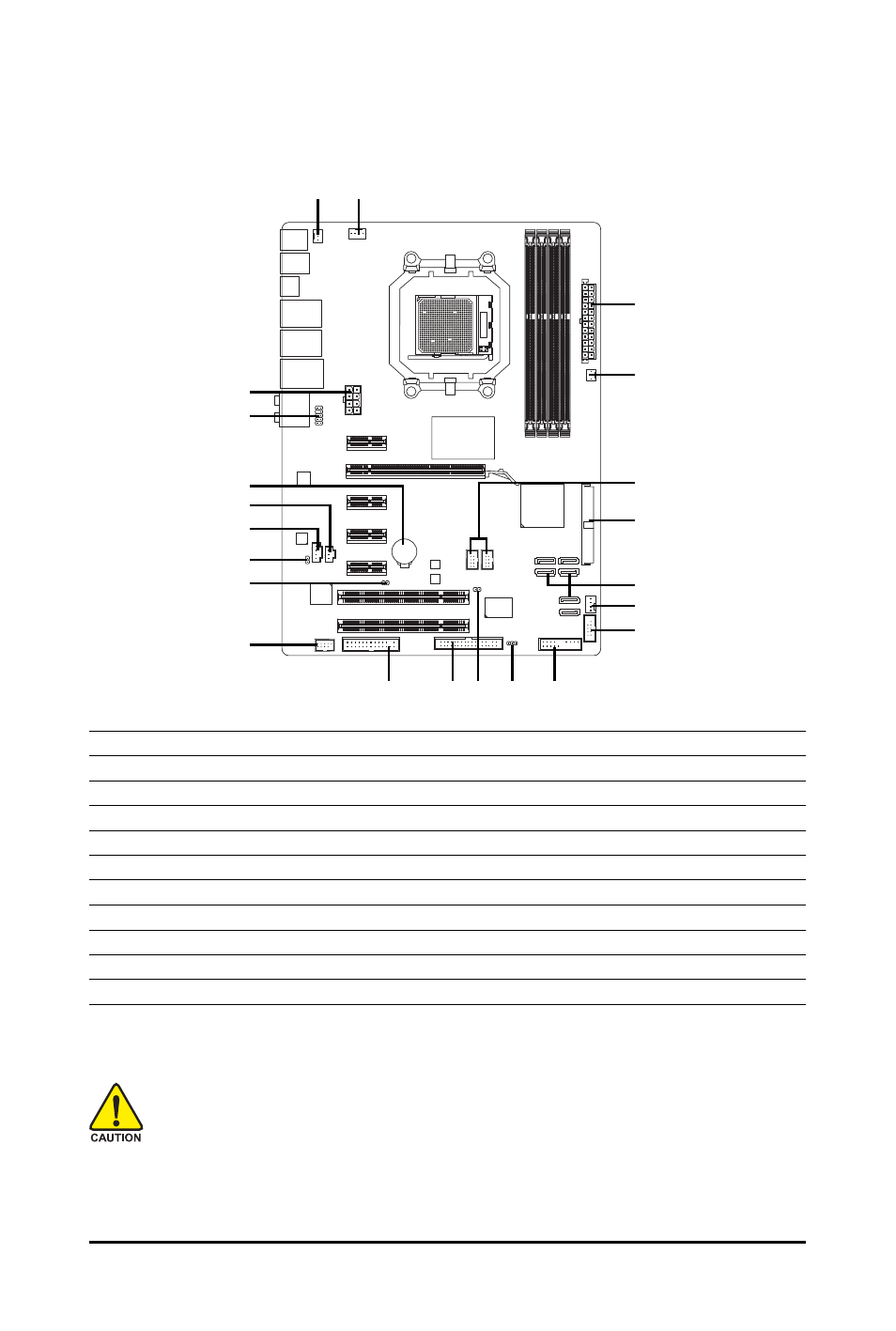

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
•
First make sure your devices are compliant with the connectors you wish to connect.
•
Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
•
After installing the device and before turning on the computer, make sure the device cable
has been securely attached to the connector on the motherboard.
1
2
3 4
5
17
6
7
8
9
12
14
15
4
11
16
13
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/SYS_FAN2
5) PWR_FAN
6) FDD
7) IDE
8) SATA2_0/1/2/3/4/5
9) PWR_LED
10) BAT
11) F_PANEL
12) F_AUDIO
13) CD_IN
14) SPDIF_IN
15) SPDIF_OUT
16) F_USB1/F_USB2
17) F_1394
18) LPT
19) COMA
20) CI
21) CLR_CMOS
18
10
20
21
19
