11

Using the rip fence

The rip fence allows you to make parallel cuts in a sheet
of wood, all at the same width.

WARNING.

Always ensure that the saw is switched off

and unplugged from the power supply before making any
adjustments.

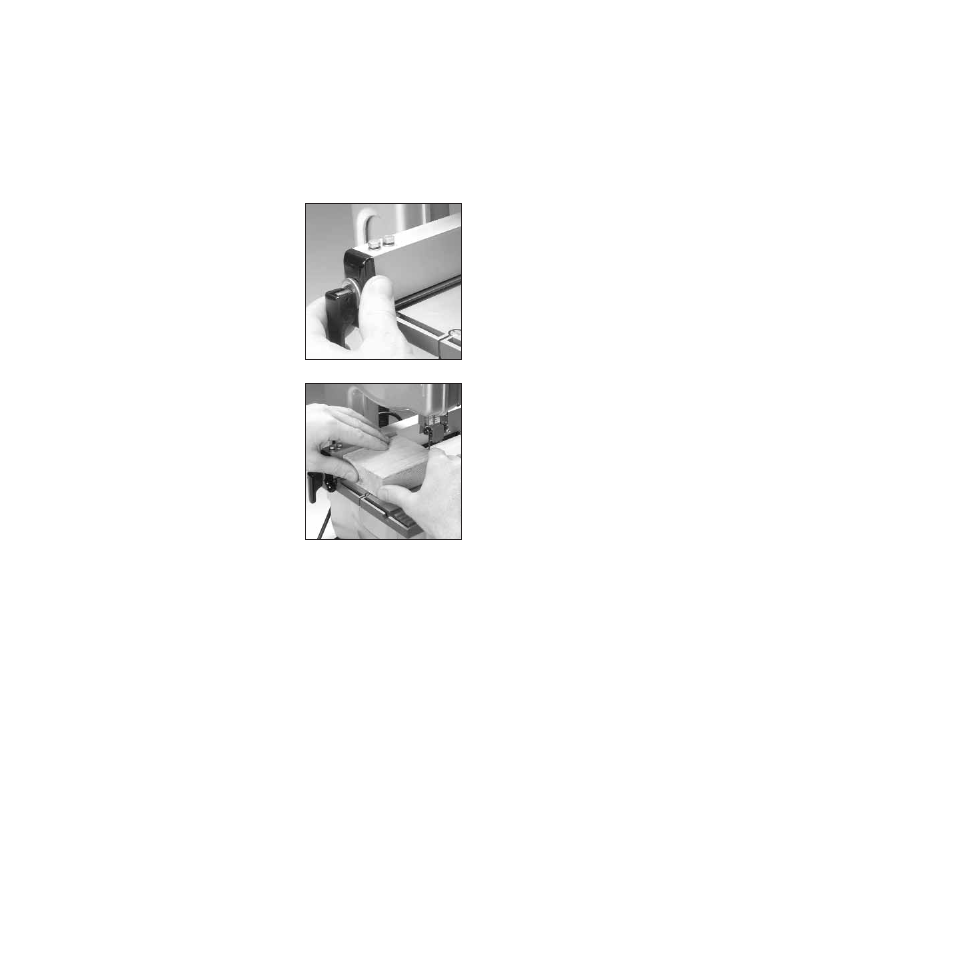

1. Adjust the rip fence to the

required width and secure it
in position with the locking
handle.

2. Ensure that the fence rests

against the wood along its
entire length to give a
consistent parallel cut.

Cutting

NOTES.

1. Use only enough pressure to keep the saw cutting.

Do not force the cutting. Allow the blade and the saw
to do the work.

2. When cutting at an angle ensure that the rip fence is

located on the right hand side of the blade.

3. When cutting rod, use a jig or fixture to prevent the

workpiece from turning.

4. When cutting boards vertically, use a push stick to feed

the workpiece into the saw.

Maintenance

Cleaning

1. Always wear eye protection when cleaning this

machine.

2. Keep the tool’s air vents unclogged and clean at all

times

3. Remove dust and dirt regularly. Cleaning is best done

with compressed air or a rag.

4. Re-lubricate all moving parts at regular intervals.

CAUTION.

Do not use cleaning agents to clean the plastic

parts of the saw. A mild detergent on a damp cloth is
recommended. Water must never come into contact with
the saw.

General inspection

Regularly check that all the fixing screws are tight. They
may vibrate loose over time.

Repairs

Call GMC on

1300 880 001

We can advise you as to the best method to repair your
tool.
Please do not return the tool to the store where you
purchased it without first contacting GMC.
