Gravely REAR ENGINE RIDER 927064 - RM1440 - Manual (Page 8)

8
E
NGINE

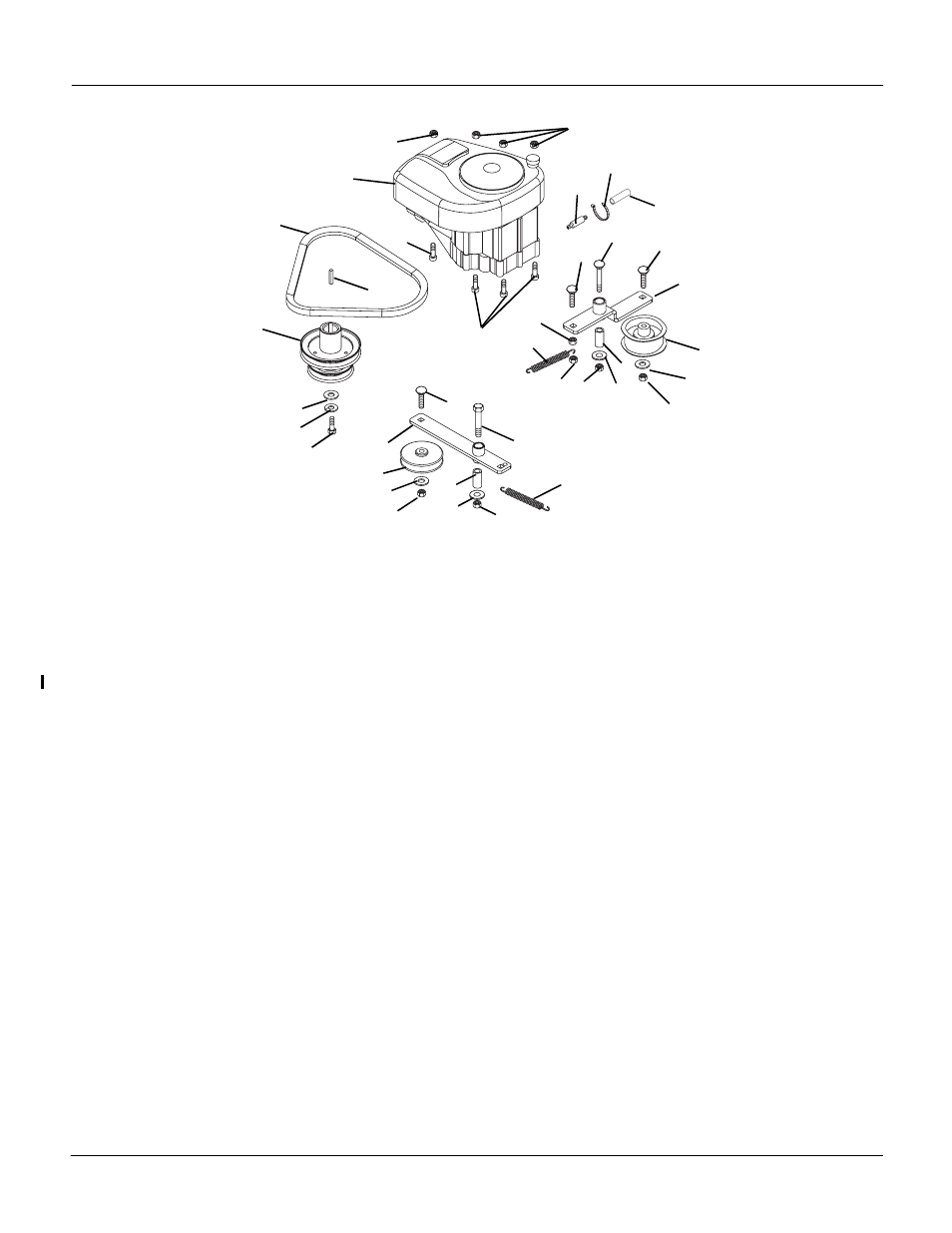

Model 927060, 062, 064
Item Part No. Qty. Description
1 52710400 1 Group, Engine 12HP Intek (062)
52710300 1 Group, Engine 10HP Intek (060)
52710500 1 Group, Engine 14HP Intek (064)
2 036233 1 V-Belt 4L-Section 30.219 x .547
3 06601800 1 Key, Straight .25 x 1.75 x .25
4 02775700 1 Stack, Sheave (060, 062)
02778900 1 Stack, Sheave (064)
5 06443600 1 Washer, Flat Steel
6 06309300 1 Washer, Locking .44 x .109 Regular
7 05967500 1 Bolt, Hex .44-20 x 1.75 Grade 5
8 06224100 1 Bolt-Round Head Square Neck .38-16 x 1.25 Grade 5
9 06534900 1 Nut-Flange .375-16
10 06544500 2 Nut, Locking Top Flange .38-16
11 05961000 2 Bolt, Hex .50-13 x 2.25 Grade 5
12 06535100 2 Nut, Locking Nylock Thin .50-13
13 06224300 1 Bolt-Round Head Square Neck .38-16 x 2.00 Grade 5
14 011263 1 Spring, Tension .095 x .50 x 5.50
15 02775400 1 Idler, Drive
16 07309200 1 Idler, V 3 x .38
17 048870 1 Sheave 3.25 x 1.25
18 02776400 1 Idler, 32” Deck PTO (060, 062)
02779100 1 Idler, 40" Deck PTO (064)
19 047314 1 Spring, Extension.093 x .75 x 4.00
20 05516400 2 Bushing-Sleeve .50 x .75 x 1.56
21 05972700 4 Screw, Socket Head Button Head .31-18 x 1.50 Grade 8
22 06544400 4 Nut-Locking-Top-Flange .31-18
23 06435700 2 Washer-Flat-Steel .38 x .875 x .083
24 07067800 1 Valve, Oil Drain
25 036313 1 Cable Tie
26 01590900 1 Tube, Oil Drain
27 06442000 2 Washer-Flat-Steel .563 x 1.38 x .109
