Grizzly G0555 - Manual (Page 51)

G0555 14" Ultimate Bandsaw -49-
304
313
315
309
326
305
303
302
316
311
312
308
307
318
320
322
322
310
306
314
319
301
321
327
325
323
320
317

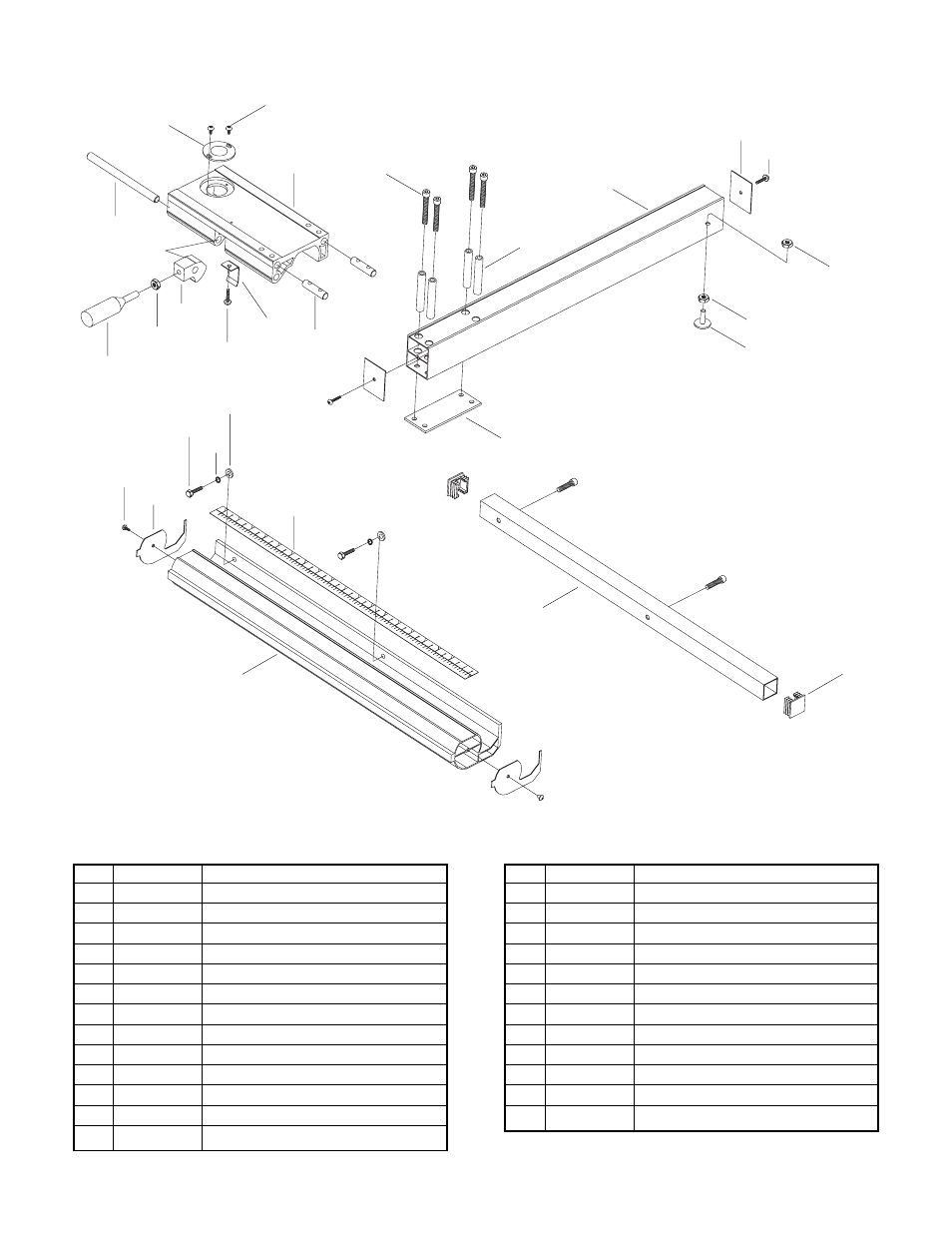

REF PART # DESCRIPTION
301 P0555301 LARGE FENCE RAIL
302 P0555302 ADJUSTABLE BASE
303 P0555303 FIXED SHAFT
304 P0555304 SHAFT
305 P0555305 SPRING PIECE
306 P0555306 BRACKET
307 P0555307 SUPPORT TUBE
308 P0555308 INTERVAL SHEATH
309 P0555309 HANDLE
310 P0555310 ADJUSTABLE RUNNER
311 P0555311 CONVEX WINDOW
312 PSB83M
CAP SCREW M6-1.0 X 55
313 P0555313 LOCK MECHANISM
314 P0555314 SMALL FENCE RAIL
REF PART # DESCRIPTION
315 PN01M HEX NUT M6-1.0
316 PFS04M FLANGE SCREW M4-.7 X 6
317 P0555317 LARGE RAIL CAP
318 P0555318 FENCE CAP
319 P0555319 SMALL RAIL CAP
320 PHTEK3M TAP SCREW M3.5 X 8
321 P0555321 SCALE
322 PN01M
HEX NUT M6-1.0
323 PLW03M LOCK WASHER 6MM
324 PSB01M CAP SCREW M6-1.0 X 16
325 PB08M HEX BOLT M6-1.0 X 20
326 PFS05M FLANGE SCREW M4-.7 X 10
327 PW03M FLAT WASHER 6MM
