JGSP48SH – GE Profile

30" Slide-In Gas Range

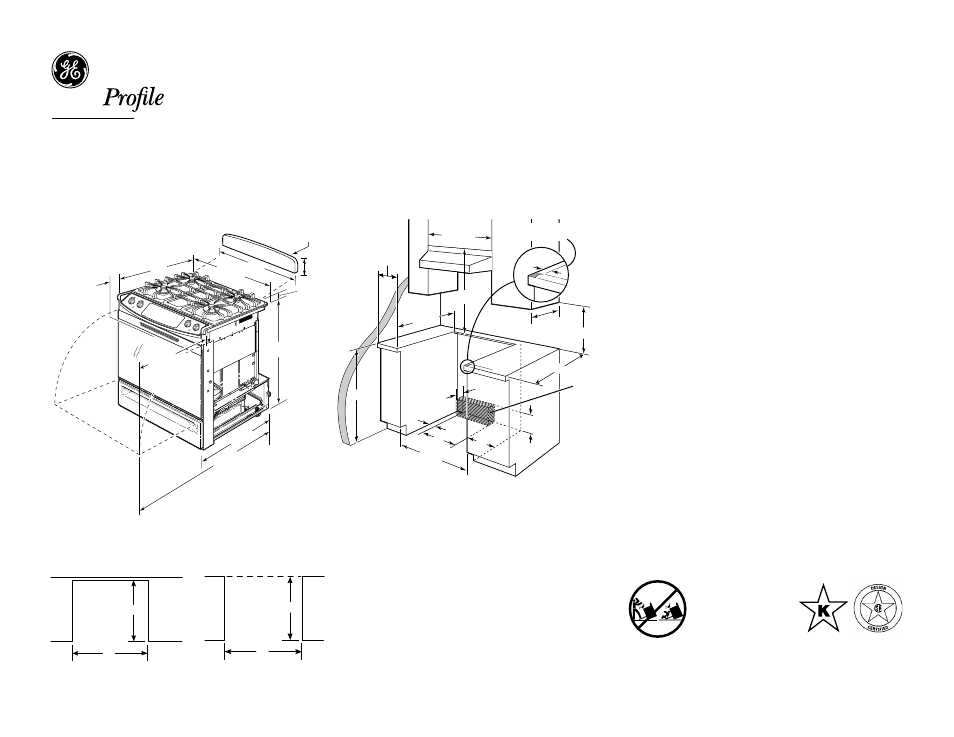

Dimensions (in inches) and Installation Information

For answers to your Monogram,

®

GE Profile

or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center

®

service, 800.626.2000.

30_profile_gas_slide_in.eps

2-7/8"

To Front

Surface Of

Countertop

20-5/8"

Door Clearance

From Front

Surface of

Countertop

31-1/4

30

27-1/2

44-3/4

4

Accessory

Backguard

36

2"

(Grates)

24

Acceptable

Gas Line &

Electrical

Outlet Area

Max. depth of

cord, plug,

receptacle box

& gas hookup

3-1/2 to prevent

interference

with drawer

30 Min.

30 Min.

Shave Raised Edge To Clear

31-1/8 Wide Control Panel

gas_slide_in_install.eps

36

4 Min.

From Walls

23-3/16

18 Min.

13 Max.

3

29-15/16 Min.

30-1/16 Max.

25

9/16

7

12

15

Counter Cutout Dimensions (in inches)

28-1/4*

36

Maintain

at least 6"

from nearest

combustible

surface.

Acceptable

Electrical

Outlet Area

30" Slide-In Range

Dimensions (in inches)

45-1/8

2-1/4

5

6

4-1/2

30

30 Min.

15 Min.

6

30" Slide-in Elec. Range

Aug. 8, 2003 -km

23-3/16

30

30

If you are NOT using the

optional Filler or Backguard:

If you are using the

optional Filler or Backguard:

25

*Wall to front of

closed door handle

on model JSP34.

28" on models

JSP26/JSS26/16.

Note: Range may be placed with 0" clearance (flush) at the back wall and side walls

below countertop if the range side trims above the countertop extend beyond the cabinet

fronts at least 1/4". (Self-clean models only.) Maintain at least 6" distance from nearest

combustible surface.

30

30-3/4

28-1/4*

36

Maintain

at least 6"

from nearest

combustible

surface.

Acceptable

Electrical

Outlet Area

30" Slide-In Range

Dimensions (in inches)

45-1/8

2-1/4

5

6

4-1/2

30

30 Min.

15 Min.

6

30" Slide-in Elec. Range

Aug. 8, 2003 -km

23-3/16

30

30

If you are NOT using the

optional Filler or Backguard:

If you are using the

optional Filler or Backguard:

25

*Wall to front of

closed door handle

on model JSP34.

28" on models

JSP26/JSS26/16.

Note: Range may be placed with 0" clearance (flush) at the back wall and side walls

below countertop if the range side trims above the countertop extend beyond the cabinet

fronts at least 1/4". (Self-clean models only.) Maintain at least 6" distance from nearest

combustible surface.

30

30-3/4

You must use the rear filler strip kit shipped with the

range or the optional accessory backguard (JXS31,

JXS32, JXS33, JXS34) when installing these ranges.
Note: Cabinets installed adjacent to slide-in ranges

must have an adhesion spec of at least 194°F

temperature rating.
Optional Kits for Slide-In Gas Ranges:

(Available at additional cost)
Lower/Side Trim Kits
JXS52BB—Lower Trim Kit (Black)

JXS53WW—Lower Trim Kit (White)

JXS55CC—Lower Trim Kit (Bisque)
Accessory Backguards
JXS31—White Accessory Backguard

JXS32— Brushed-Chrome Accessory Backguard

JXS34—Black Accessory Backguard

JXS35—Bisque Accessory Backguard
Endcap Kit
JXS40—Endcap kit to accommodate replacement

where countertop may already be notched.

Installation Information: Before installing, consult

installation instructions packed with product for

current dimensional data.

All GE ranges are equipped with

an Anti-Tip device. The installation

of this device is an important,

required step in the installation

of the range.
