Maintenance and Care
To avoid sludge buildup inside of the mister •
when finished using, remove the suction hose
from the coolant and let the unit expel all cool-
ant. Do not let the unit sit with coolant inside.
To avoid condensation and rust between the •
magnetic base and the surface it is mounted
on, remove the mister at the end of every work
day and wipe both surfaces with oil.
To eliminate corrosion at the needle and seat, •
periodically unscrew the misting valve, clean
the needle and bore out, lubricate with some
general machine oil, and then reassemble.
h3258—filter/Lube/Regulator 3 ⁄
8
"NpT
h3259—filter/Lube/Regulator 1 ⁄
2
"NpT
These units are indispensable for prolonging
the lifespan of your air tools. Filter keeps water/
rust out. Lubricator features adjustable automatic
lubrication. Regulator allows you to control the
optimum PSI delivery for each air tool. Maximum
pressure for each unit is 150 PSI.

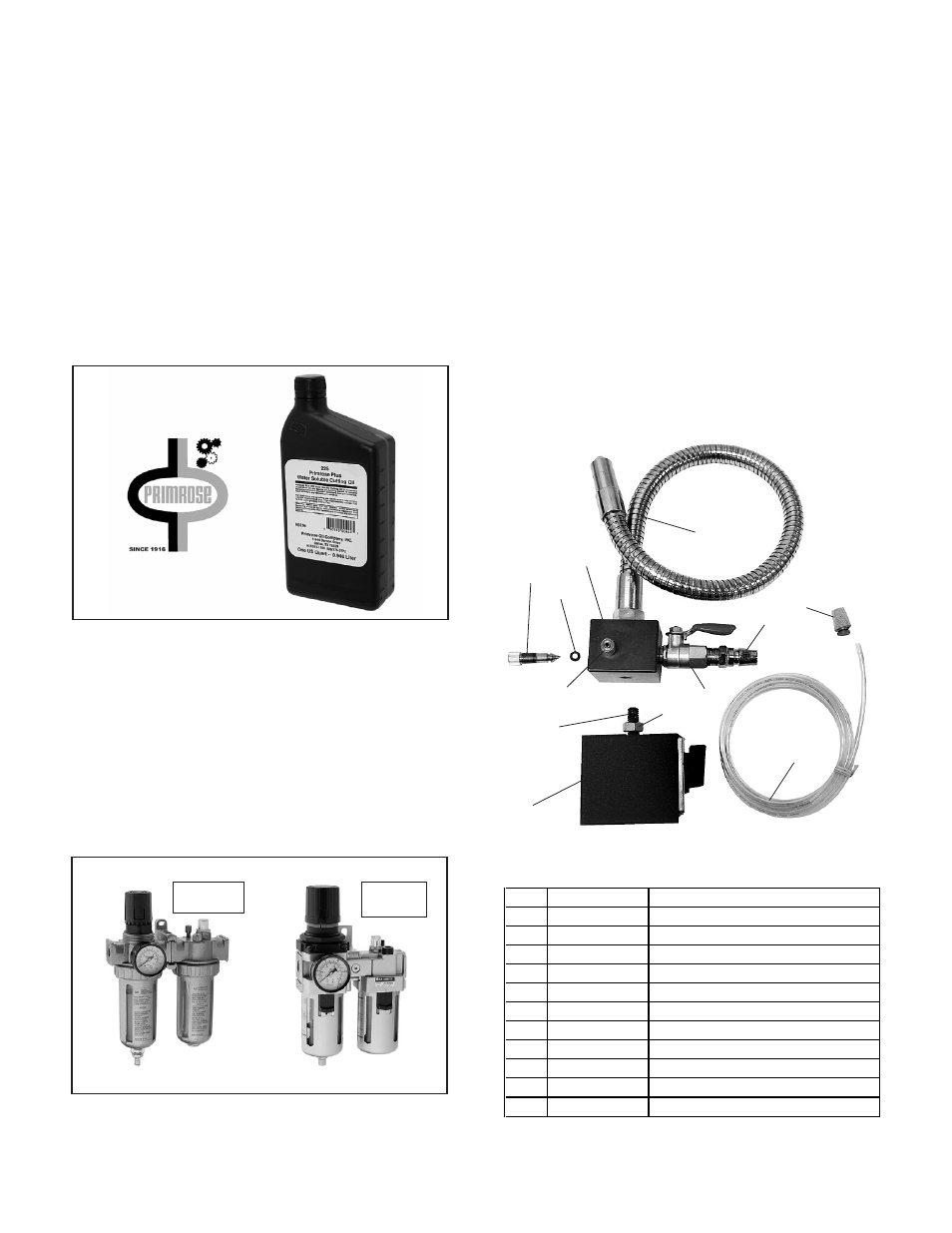

figure 3. Models h3258 & h3259
Filter/Lubricator/Regulators.
h3258 h3259
Accessories
h8256—primrose Water Soluble Cutting Oil
(1 Quart)
Increases tool life with superior lubricity, maximum
cooling and anti weld properties. No undesirable
fumes, smoke or fog. Prevents growth of bacteria
in cutting fluid dilutions. Provides a better finish
to special alloys, even at higher speeds. Thin film
of oil protects metal, yet requires no de-greasing
before painting. eliminates rust in equipment and
on finished parts. Simply dilute with water–ratio
based on metal machineability, tool set-up, feed
and speed.
figure 2. Primrose Water Soluble Cutting Oil.
10
1
2
12 6
3
8
9
7
5
4
11
REF PART # DESCRIPTION
1 PT10121001 MAGNETIC BASE
2 PT10121002 STUD M8-1.25 X 30
3 PN03M HEX NUT M8-1.25
4 PT10121004 MANIFOLD BODY
5 PT10121005 DELEVERY TUBE
6 PT10121006 AIR VALVE
7 PT10121007 PUSH-ON HOSE FITTING 1/4 NPT
8 PT10121008 SUCTION TUBE 3/32 X 80"
9 PT10121009 FILTER
10 PT10121010 NEEDLE VALVE
11 PORP004 O-RING 3.8 X 1.9 P4
12 PT10121012 SPECIAL FITTING
