LF1030 HYDRAULIC PATIENT LIFT / LF1040 ELECTRIC PATIENT LIFT OWNER'S MANUAL, 10/03 10
ASSEMBLY INSTRUCTIONS
The LF1030 patient lift is packed in one carton. The LF1040 motor may be in a separate carton. Com-
ponents are shown in illustration below and called out in list below illustration.

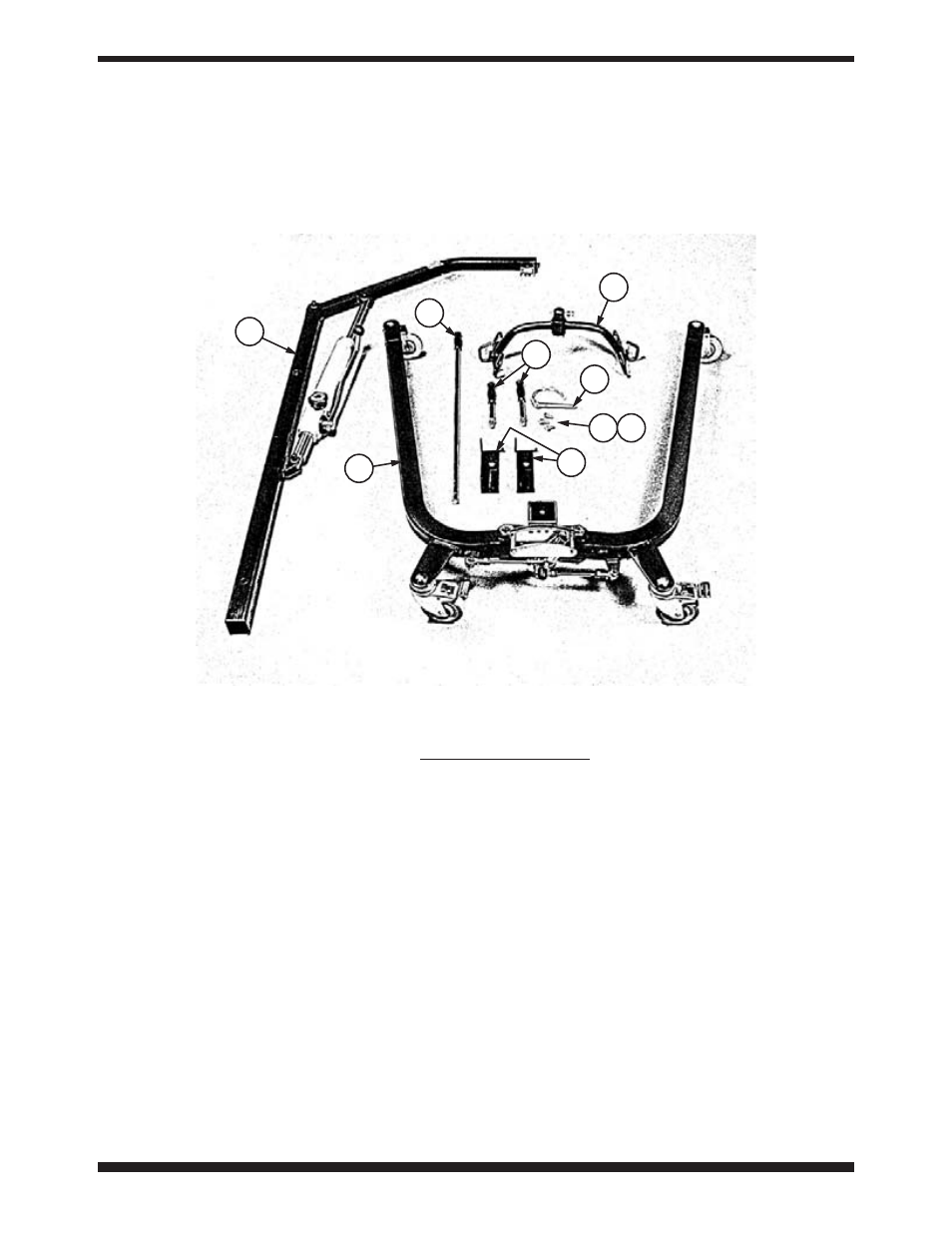

LF1030 hydraulic patient lift components
1
2
7
3
4
5 6
9
8
Item Qty Description
1) 1 Mast/Boom/Pump assembly (LF1030)
1 Mast/Boom/Actuator assembly (LF1040)
2) 1 Base
3) 1 Base adjustment handle
4) 2 Push handle
5) 2 Mast attachment bolt
6) 1 Base adjustment handle bolt
7) 1 Spreader bar
8) 1 Locking pin
9) 2 L insert
