Assembly
Fork Post
Fork Cover

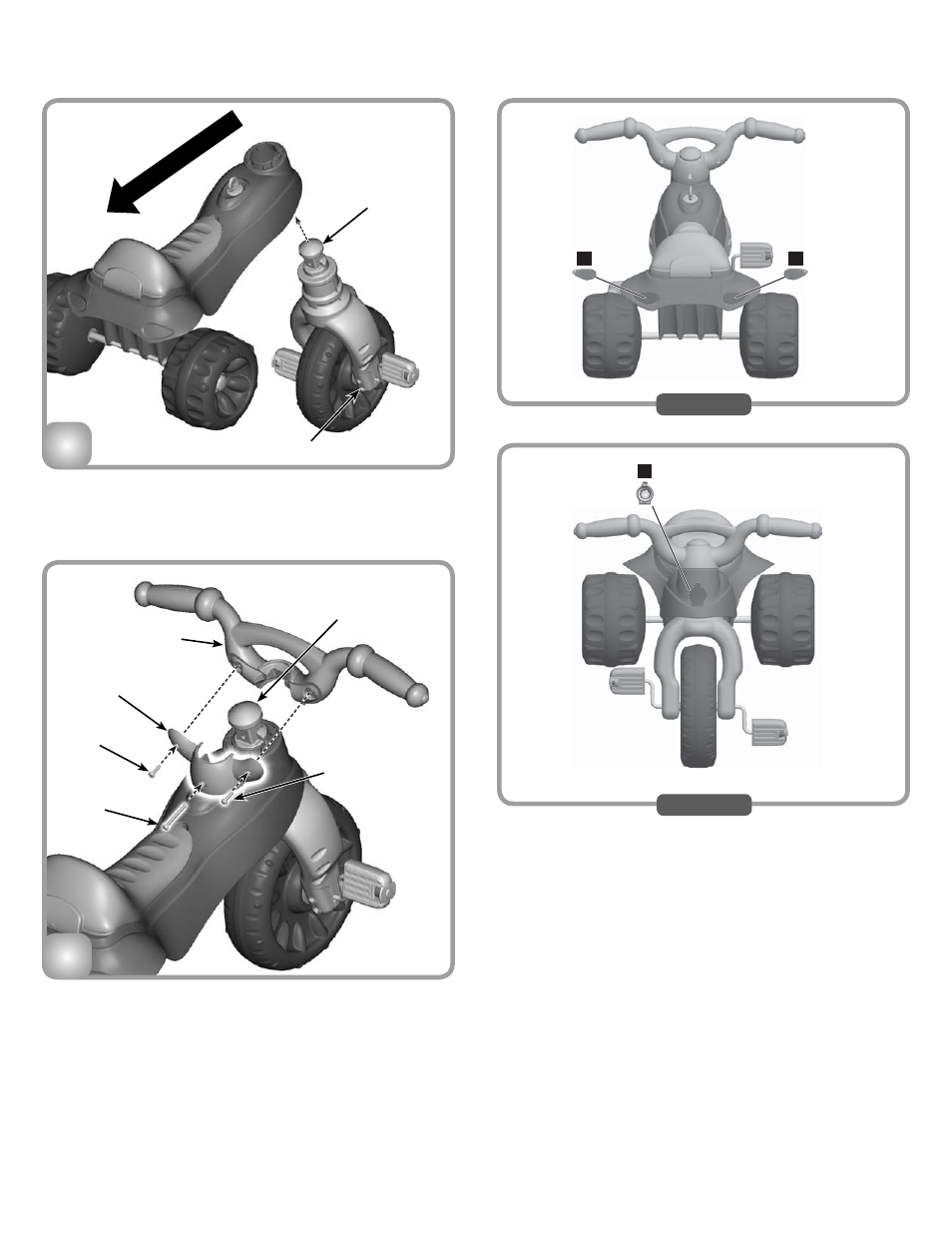

• Insert the fork post up through the hole in the neck of the
frame. Make sure the fork is positioned so that the fork
covers face the rear wheels.
REAR OF
TRIKE
• Fit the handlebar front to the fork post.
Hint: The handlebar front is designed to assemble to the
fork post one way.
• Fit the handlebar back to the fork post and handlebar
front. Hold them together fi rmly.
• First, insert the remaining #8 x ¾" screws through the
outer holes in the handlebar back and tighten.
• Then, insert the #8 x 2¼" screw through the center hole
in the handlebar back and tighten.
Handlebar Front
¾" Screw
¾" Screw
2¼" Screw
Handlebar Back
9
10
Fork Post
5 5
3
Label Decoration
• Wash your hands before applying the labels.
• Make sure the areas where the labels will be applied are
clean and dry. Wipe your vehicle with a clean, soft, dry
cloth to remove any dust or oils.
• For best results, avoid applying a label more than once.
• Apply the labels as shown in the illustration above.
• After applying a label, rub the label fi rmly with a cloth to
make sure the label is adhered to your vehicle.
Back
Front
