Assembly – Fisher-Price Barbie Ford Mustang L6349 User Manual

Page 10

L6349pr-0920

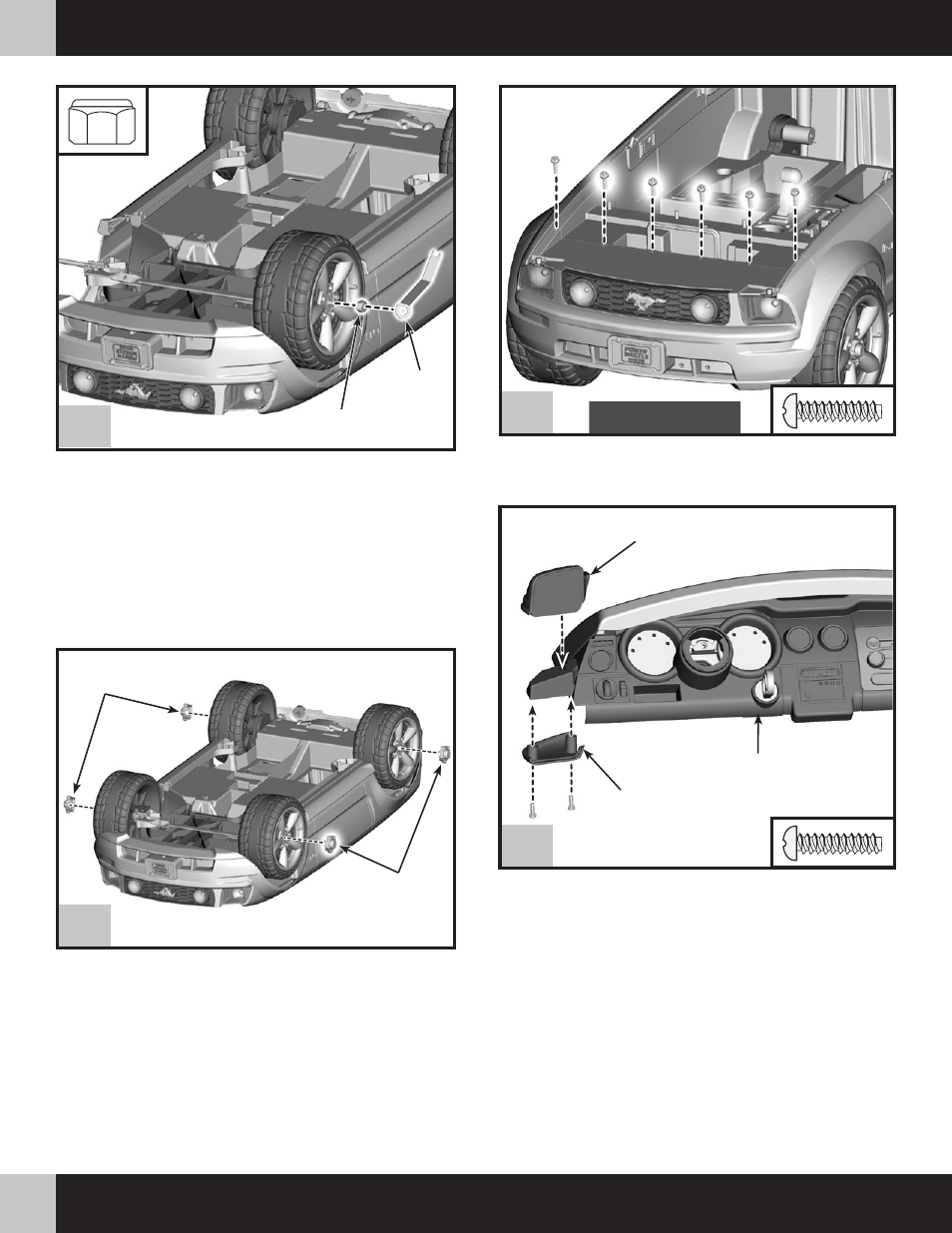

• Fit a mirror and mirror cover to an end of the dash assembly.
• Insert two #8 x

" screws into the mirror cover and tighten.

• Repeat this procedure to attached the other mirror and mirror cover

to the opposite end of the dash assembly.

Mirror

• Insert six #8 x

" screws into the front bumper and tighten.

• Fit a

"-16 lock nut,

rounded side out, onto the front axle.

IMPORTANT! Tighten the lock nut firmly with the closed end of the

assembly tool.
• Test to be sure the front wheel moves freely on the front axle. Turn

the front wheel.

• If the front wheel does not move freely, loosen the lock nut ¼ turn

and test again. Repeat this procedure as necessary.

• Repeat steps 4-6 to assemble the other washer, bushing, front wheel

and wheel cover with the remaining

"-16 lock nut.

Lock Nut

• Align the slot in a hubcap with the rib in the wheel cover.

“Snap” a

hubcap into the center of each wheel cover.

• Turn the vehicle upright.

Hubcaps

Mirror Cover

Dash Assembly

Assembly

Tool

ASSEMBLY

FRONT VIEW
