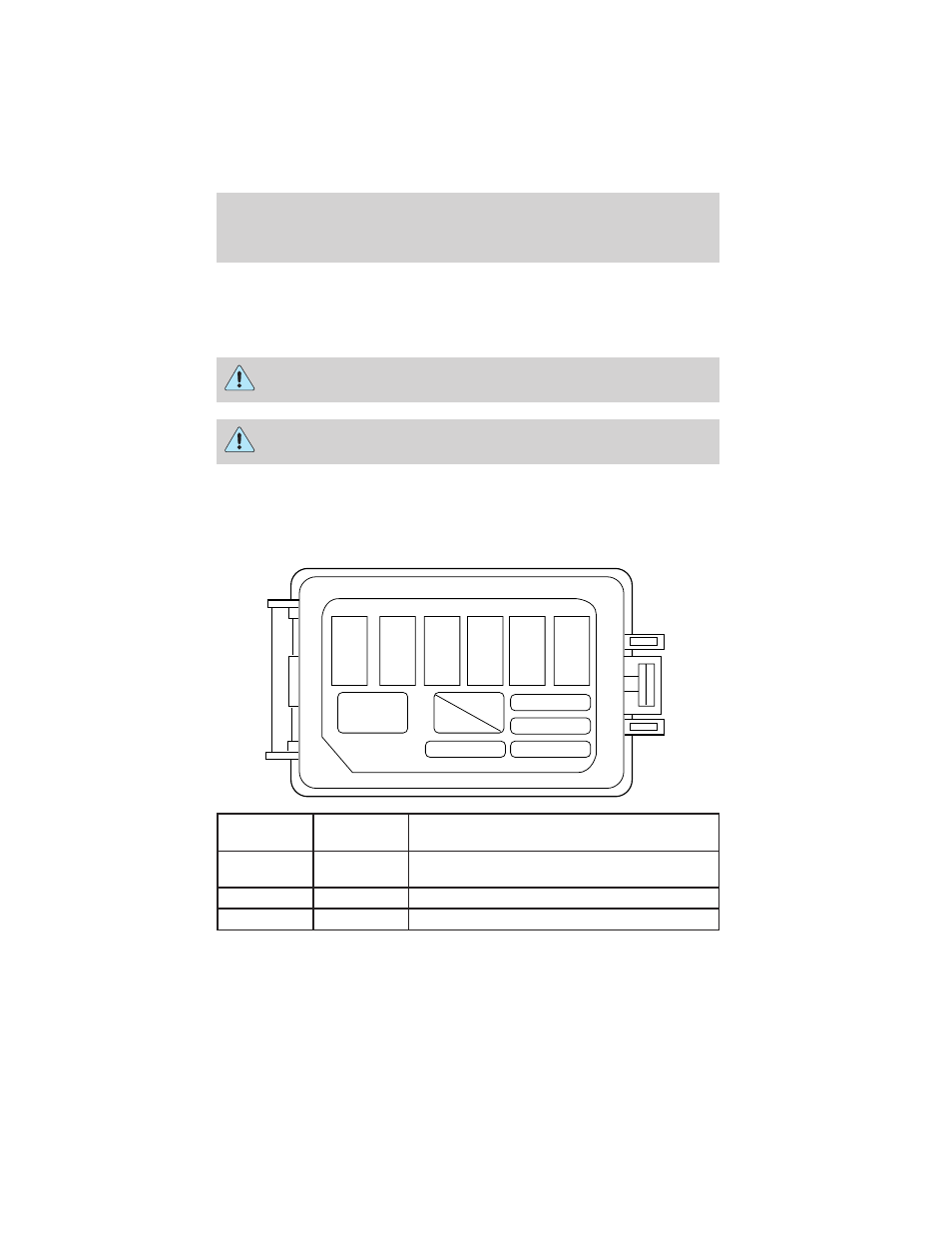

Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Always disconnect the battery before servicing high current
fuses.
Always replace the cover to the Power Distribution Box before
reconnecting the battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and care chapter.
Coupe
The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box Description
FUEL INJ.
30A*
Air Bags, Constant Control Relay Module
(PCM Relay), Generator
DEFOG
30A*
Rear Window Defrost
MAIN
100A*
Overall Circuit Protection
USE THE DESIGNATED FUSES ONLY
FUEL INJ
30A
DEFOG
30A
MAIN
100A
COOLING FAN
40A
(ABS)
60A
BTN
40A
HEADLAMP
RELAY
FUEL PUMP 20A
OBD-II 10A
HEAD RH 10A
HEAD LH 10A
Roadside emergencies
113
