Version 12/04 - Page 5
DUCTED
INSTALLATION DIMENSIONS
The Diamante chimneys are adjustable and
designed to meet varying ceiling heights as
indicated in FIGURE 4A. The chimneys can
be adjusted for ceilings between 7' 5 3/4" and
8' 10 3/4" depending on the distance between
the bottom of the hood and the cooktop
(distance x).
For shorter ceilings, have the chimney cover(s)
cut at a sheet metal shop. For higher ceiling
installations, the High Ceiling Chimney Kit
includes a new 40” upper chimney which would
replace the 16 1/8” upper chimney that came
with the hood.
Note: If 24" or 30" High Backsplash is being
installed, the distance between the bottom
of the hood and the cooktop (DISTANCE X
IN FIGURE 4A) is equal to the height of the
Backsplash.
upper
chimney
cover
lower
chimney
cover
canopy
x = distance from hood to cooktop
(varies depending on installation)
min - 24”, suggested max - 30”
cabinet base
5
1/8”
min
16 1/8” max
21 1/4”
3 3/8”
36”
22"
x
also consult cooktop
manufacturer's recommendation
(vented to the outside)

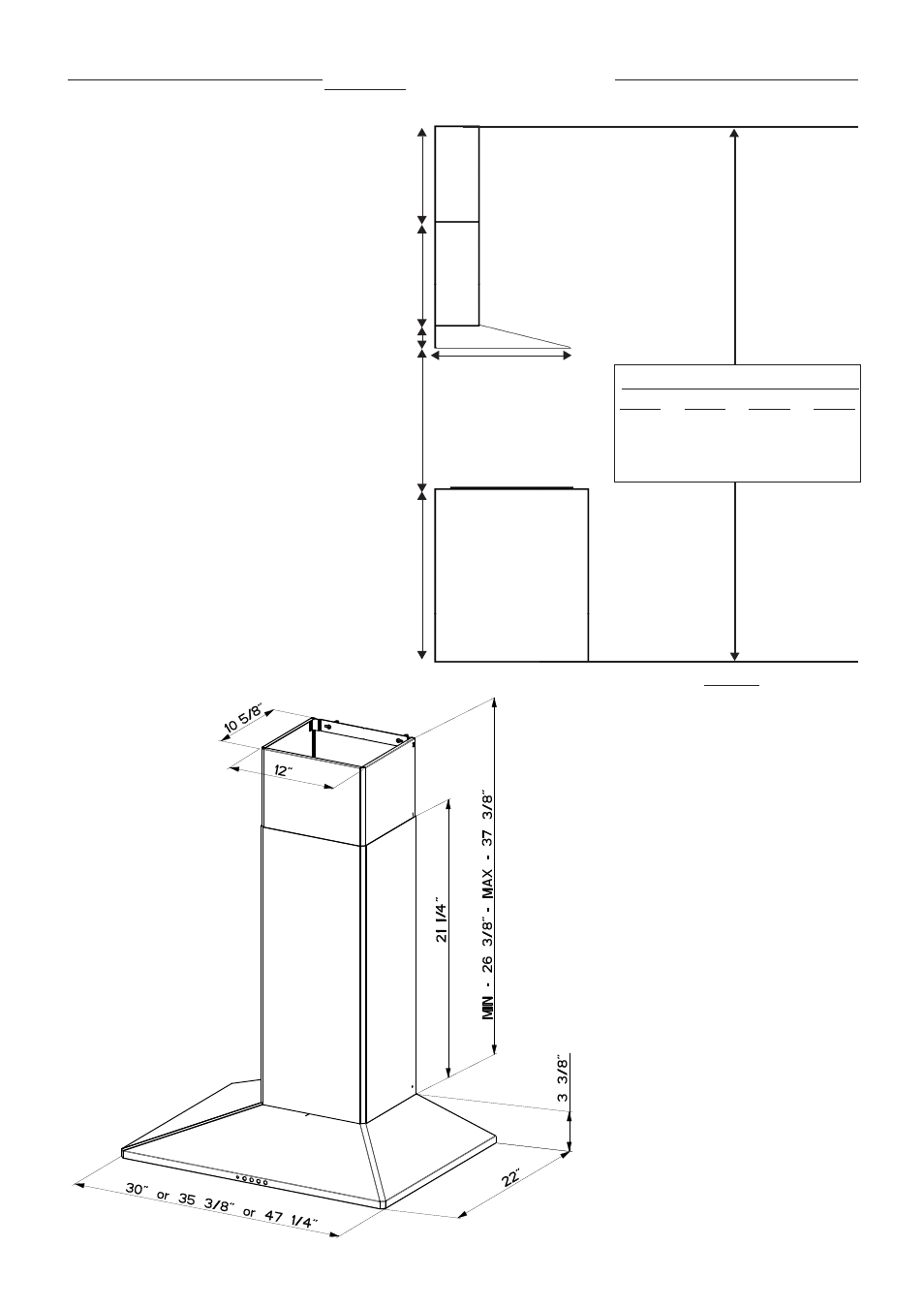

FIGURE 4A DUCTED INSTALLATIONS
min & max ceiling height examples
x = 30"
min
7'
11 3/4"
max
8'
10 3/4"
x = 28"
min
7'
9 3/4"
max
8'
8 3/4"
x = 26"
min
7'
7 3/4"
max
8'
6 3/4"
x = 24"
min
7'
5 3/4"
max
8'
4 3/4"
