Depending on the conditions of use, installation and environment,
please be sure to make the appropriate settings and adjustments. If
you need help with installation and/or settings, please consult your
dealer.
CONTENTS
INFORMATION TO USER .................................................................... 2
PRECAUTIONS..................................................................................... 3
PARTS NAMES..................................................................................... 4
MOUNTING THE LENS ........................................................................ 7
CONNECTIONS .................................................................................... 9
SETTINGS............................................................................................. 10
TROUBLESHOOTING........................................................................... 12
SPECIFICATIONS.................................................................................. 13

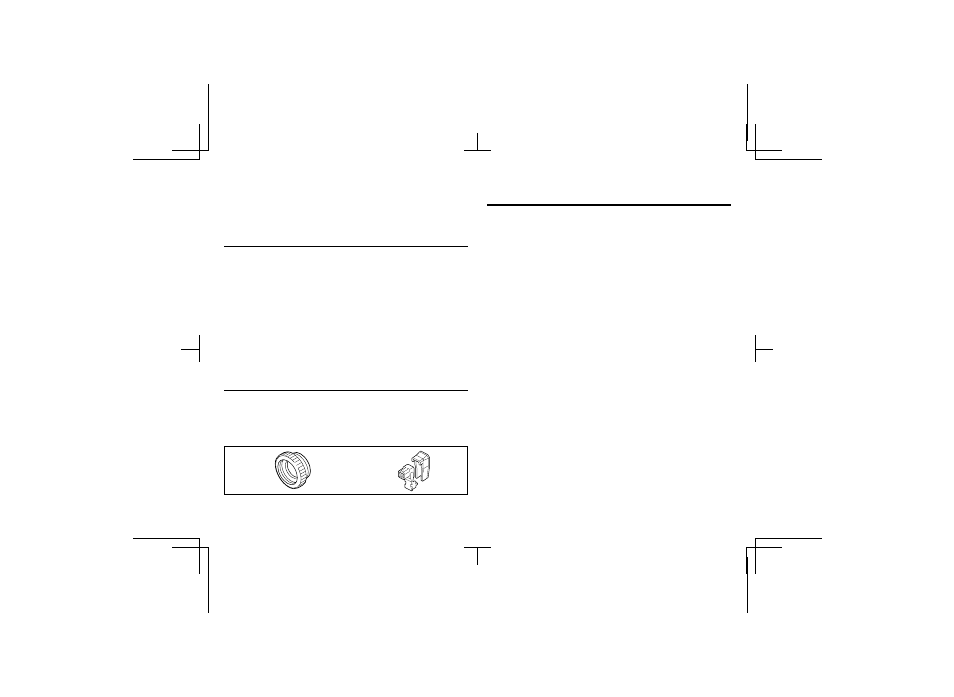

ACCESSORIES
1 C mount adaptor (5 mm).....................1 pc.
The C mount adaptor must be used to be able to install a C mount
lens on the camera.
2 Lens iris plug (4-pin).............................1 pc.
1 2
FEATURES
• Built-in interline transfer method 1/3" CCD, approx. 270,000
picture elements
• Low smear, anti-blooming, low lag, no burning and no geometric
distortion using the CCD solid state image device.
• 100% solid state components giving excellent immunity to shock
and vibration
• Not subject to interference from magnetic or electrostatic fields
• High sensitivity, minimum required illumination of 0,07 lux with
F1.2 lens
• Horizontal resolution, more than 400 TV lines
• New backlight compensation function (Active when using an
auto-iris lens)
• Externally adjustable flange back (mechanical focus)
• Low power consumption and quick start
• 24 V AC operation
(Commarcially available 24 V AC adaptor)
• Built-in Mirror image effect function.
