Page 10
10
ASSEMBLY
F
K3033a-0920
2
3
4
FRONT VIEW

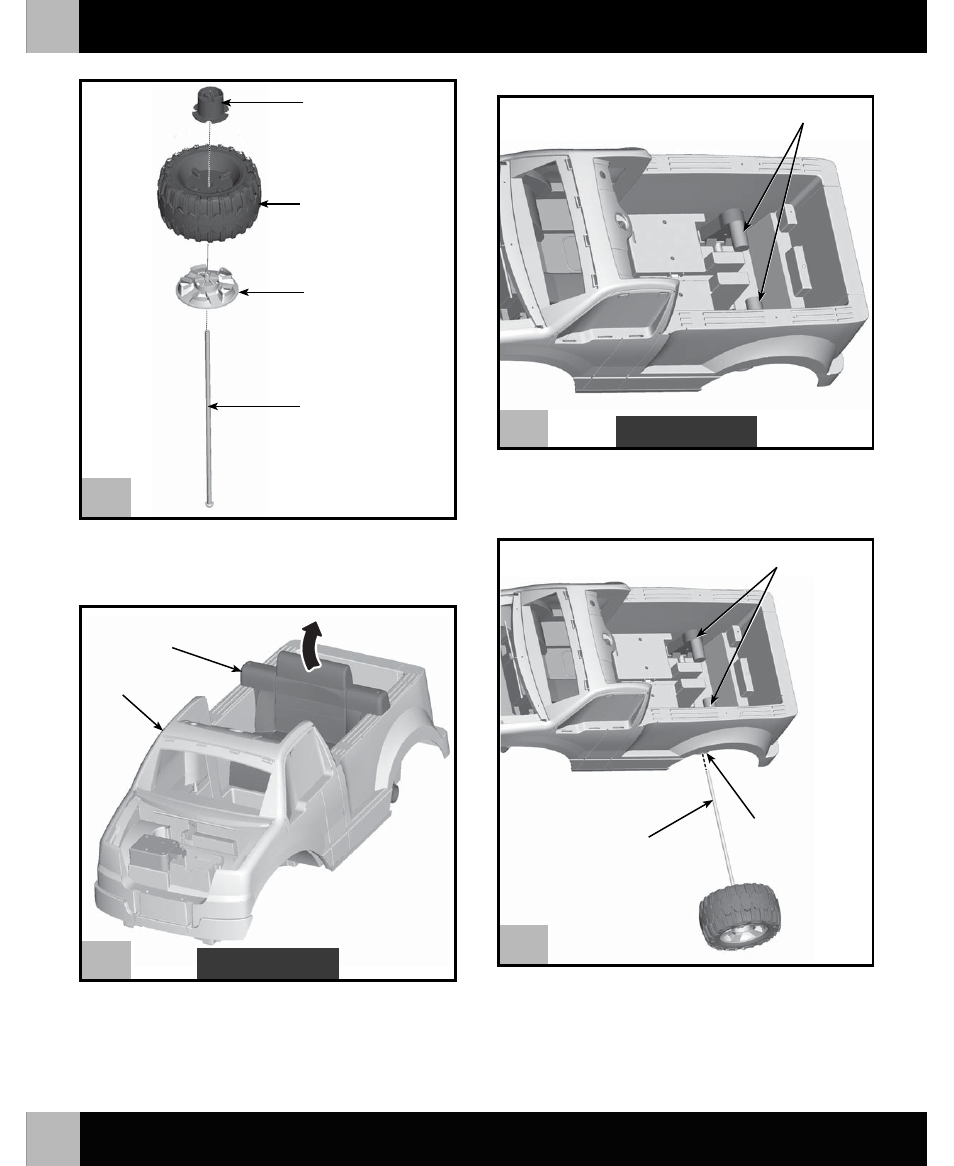

• Slide a hubcap, peg side up, onto the rear axle.
• Slide a wheel, ribs up, onto the rear axle.
• Slide a rear wheel driver, ring side down, onto the rear axle.
• Rotate the seat back and lift to remove from the vehicle.
Seat
Vehicle
Rear Wheel Driver
(Ring Side Down)
Wheel
(Ribs Up)
Hubcap
(Peg Side Up)
Rear Axle
• Slide the rear axle assembly through the hole in one motor, the back
end of the vehicle and then out through the other motor.
Rear Axle Assembly
Hole in Motor
• Locate the motors inside the vehicle.
• Make sure each motor is positioned in the rectangular recesses
inside the vehicle.
TOP VIEW
5
Motors
Motors
