5

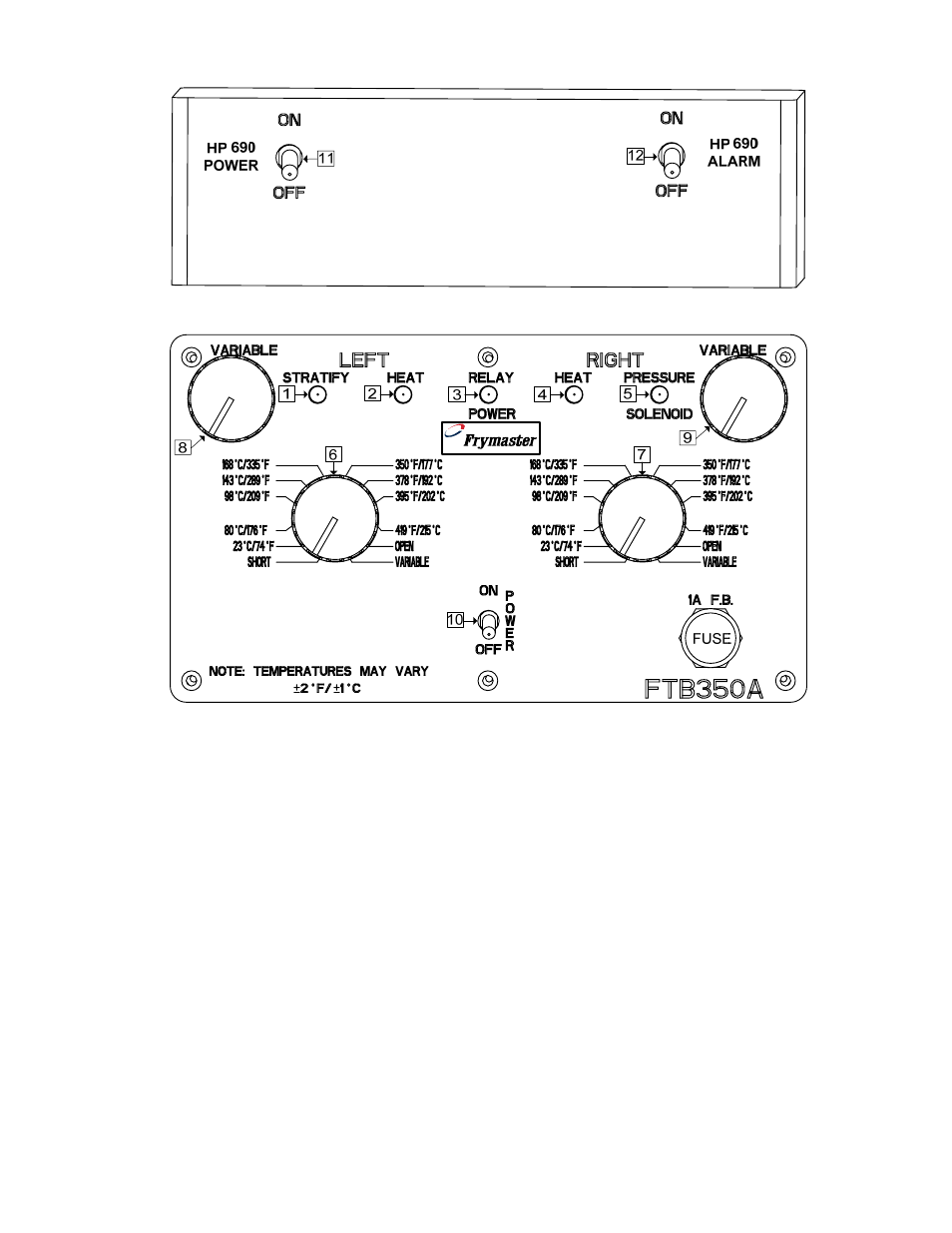

CONTROL PANEL
1. Stratify Indicator
On during stratify on HP
fryers.
7. Right Probe/Thermistor Switch
Simulates
Temperature
2. Left Heat Indicator
ON When Heating
8. Left Variable Control
3. Power On Indicator
Power to Fryer Relays &
Controller
9. Right Variable Control
4. Right Heat Indicator
ON When Heating
10. ON/OFF Switch
Power To FTB-350A Test Unit
5. Pressure Solenoid Indicator
On when pressure solenoid
is activated on HP fryers.
11. HP690 Power Switch
Power to FTB-350A Test Unit and
controller when set to HP690.
6. Left Probe/Thermistor Switch
Simulates Temperature
12. HP690 Alarm Switch
Simulates Alarm Signal Input
NOTE: For power other than 120VAC 60Hz, use 240V transformer.
