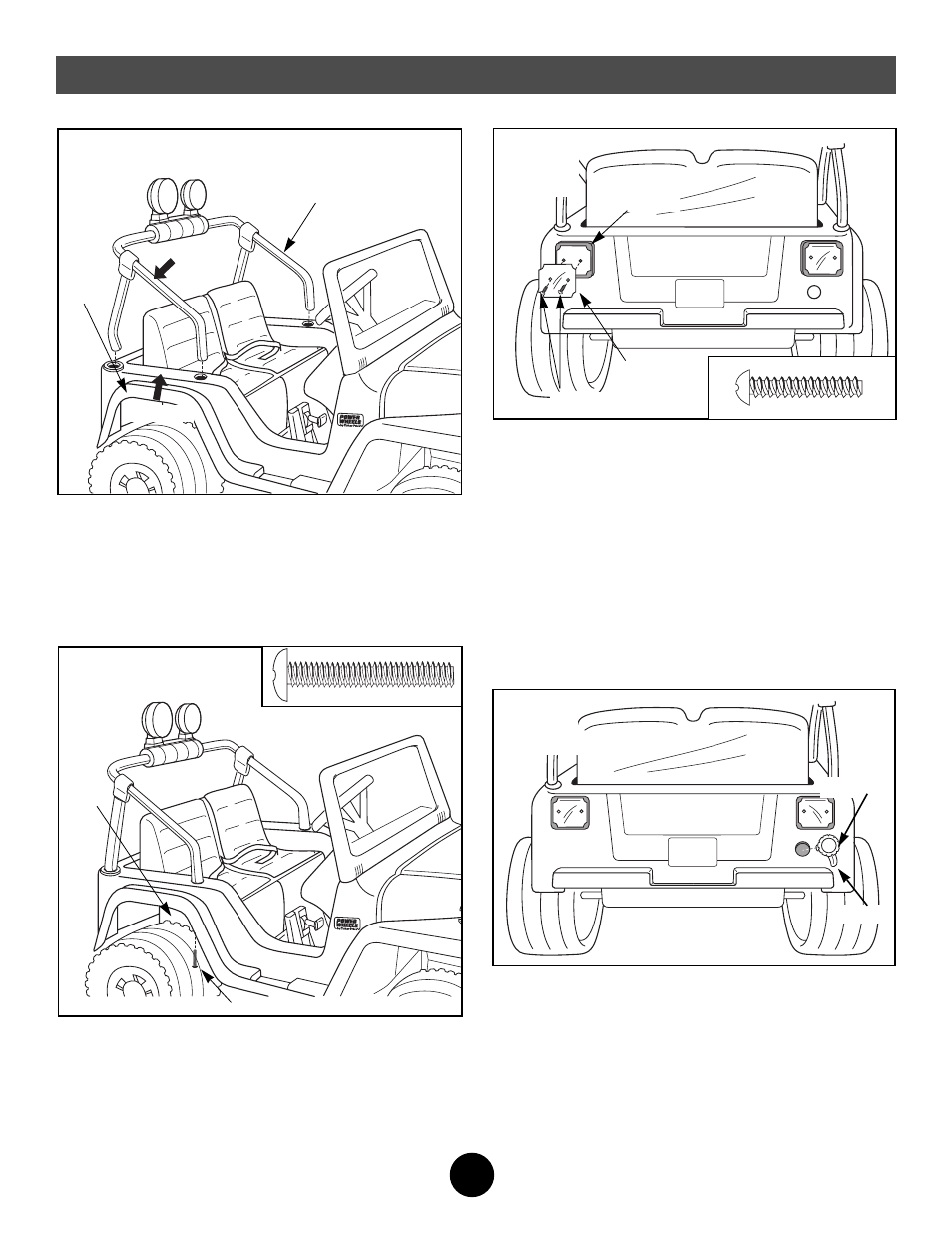

Assembly
28
27
Taillight
Housing
Taillight
Lens
• Using safety scissors, remove the taillight lenses and the
taillight housings from the plastic connectors. Dispose of
the plastic connectors.
• Face the rear of the vehicle.
• Fit a taillight lens inside a taillight housing.
• Position the taillight housing with lens against the vehicle
body with the screw holes aligned, as shown.
• Insert two #8 x 1" screws through the taillight lens and
housing and into the vehicle body as shown.
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
• Repeat this procedure to attach the other taillight.
• Position the gas cap so that its tether points down.
• Snap the gas cap into the hole under the right taillight.
Gas Cap
Tether
26
25
• Fit the sport bar and sport bar support legs into the holes
in the vehicle body.
• Push down firmly on a sport bar side leg while pulling
up on the side fender to fit the sport bar into the
vehicle body.
• Repeat this procedure on the other side of the
vehicle body.
Sport Bar
Side
Fender
PULL HERE
PUSH
HERE
Rear
Wheel
Well
1 1 /
2
" x 1 /
4
" Screw
#8 x 1" Screws
• Insert a 1 1 /
2
" x 1 /
4
" machine screw into the hole closest
to the front of the vehicle in the underside of the rear
wheel well, through the vehicle body and into the end
of the sport bar.
• Tighten the screw with a Phillips screwdriver.
Do not over-tighten.
• Repeat this procedure on the other side of the
vehicle body.
