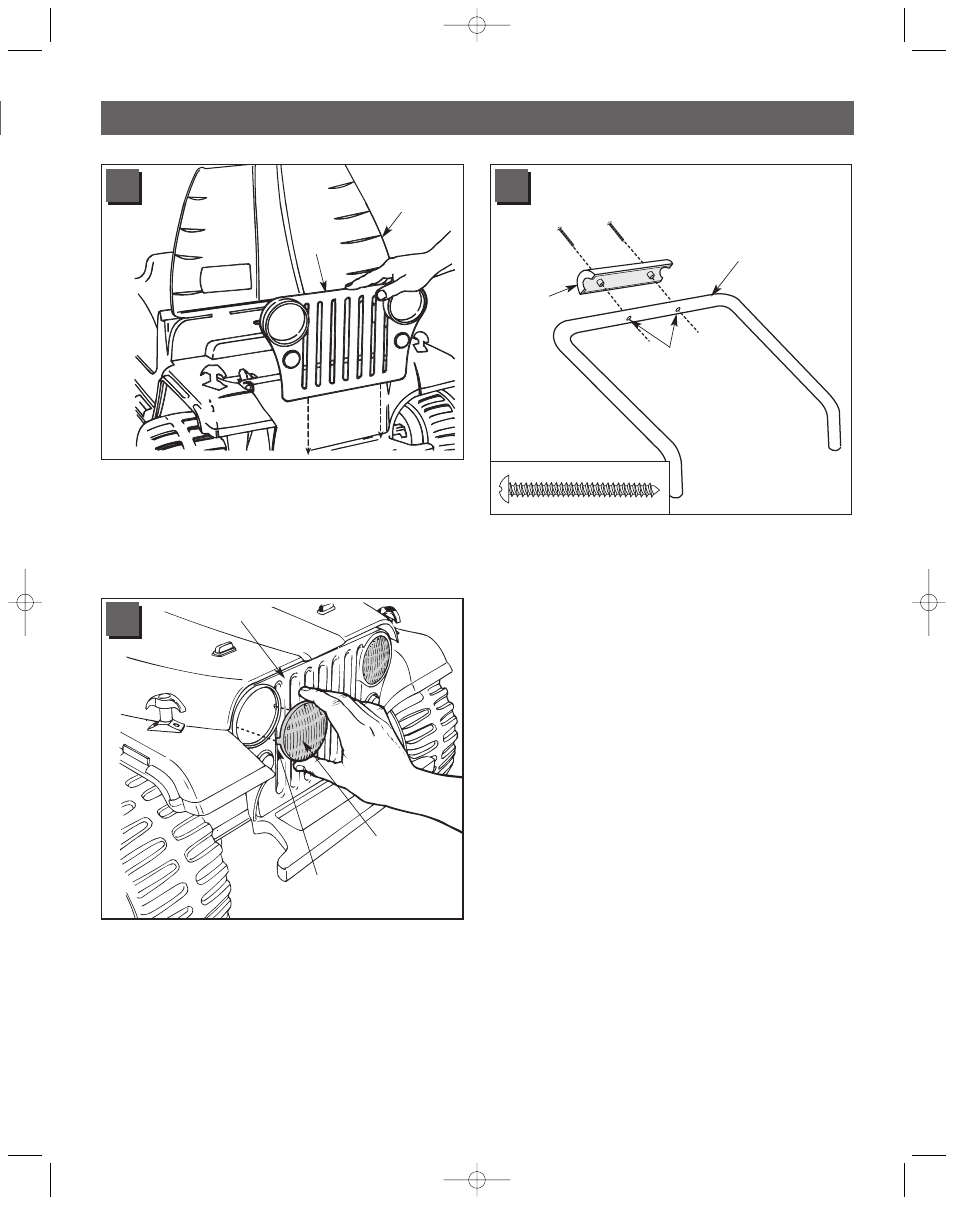

Assembly
Hood
Grille
• Lift the hood.
• Fit the tabs at the bottom of the grille into the slots in
the vehicle body.
• Press near the top of the grille to “snap” it into the
vehicle body.
• Lower the hood.
• Fit the tab on one side of a headlight lens into the notch
in the grille.
• Push firmly to “snap” the tab on the other side of the
headlight lens into the grille.
• Repeat this procedure to assemble the other
headlight lens to the grille.
Headlight
Lens
Tab
Grille
12
16
17
• Position the sport bar, as shown. Fit the sport bar cover
marked “BAC” to the back of the sport bar.
• Align the holes in the sport bar with the holes in the
sport bar cover.
• Insert two #6 x 1 1 /
2
" screws through the sport bar cover
and into the sport bar, as shown.
Sport Bar
Cover
(BAC)
Sport Bar
Holes
18
